Operating manual Ruby EN 9 | Installation
29

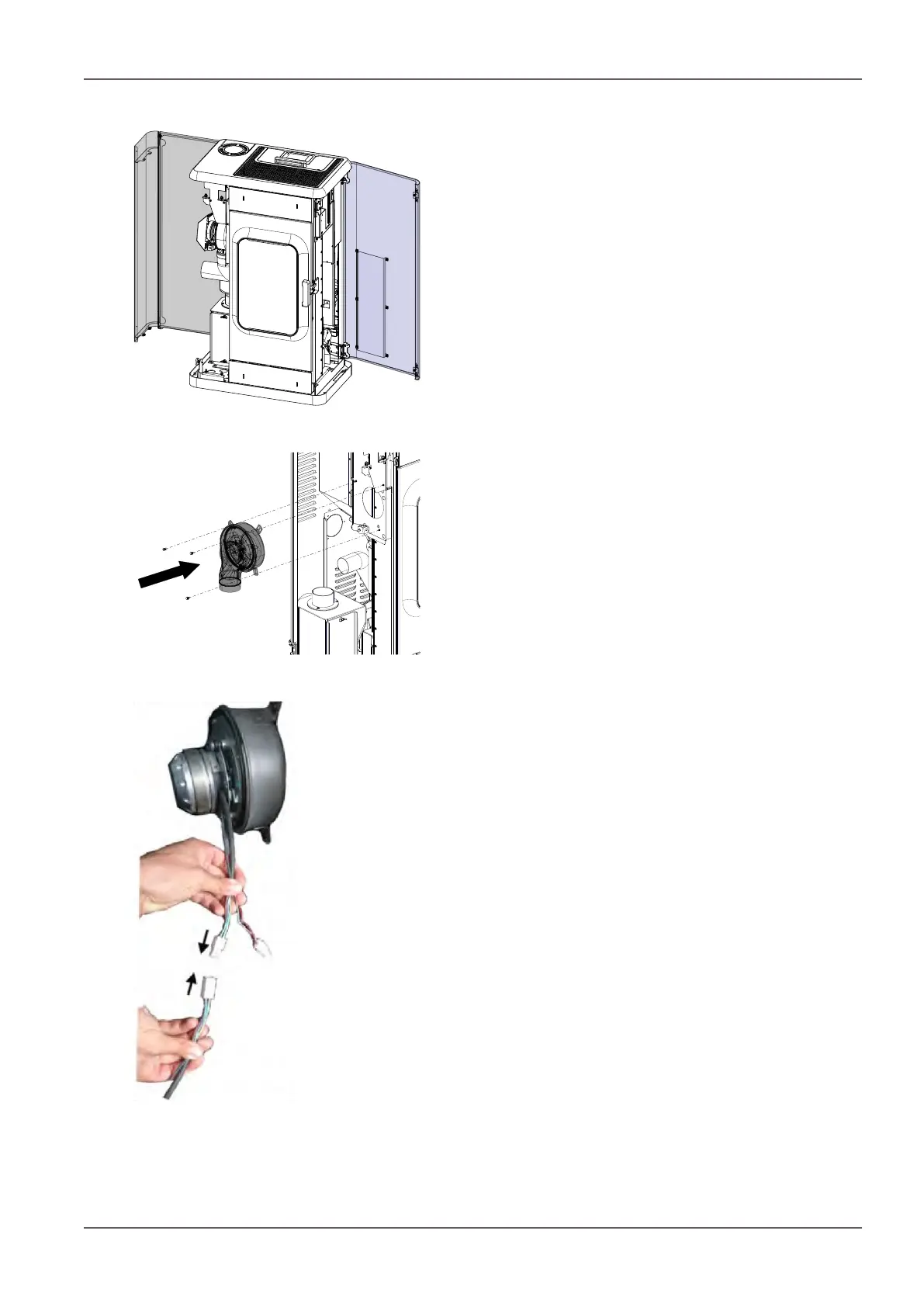

9.2.3 Mounting and configuring the air distribution module
Fig.23: Opening the left- and right-hand
side cladding
1) Open left- and right-hand side cladding.
Fig.24: Mounting the air distribution mod-
ule
2) Attach and mount air distribution module on the side.
Fig.25: Connecting the cables
3) Connect to one another the cable from the air distri-
bution module and the cable which leads to the con-
trol unit.
