9 | Installation EN Operating manual Ruby
28

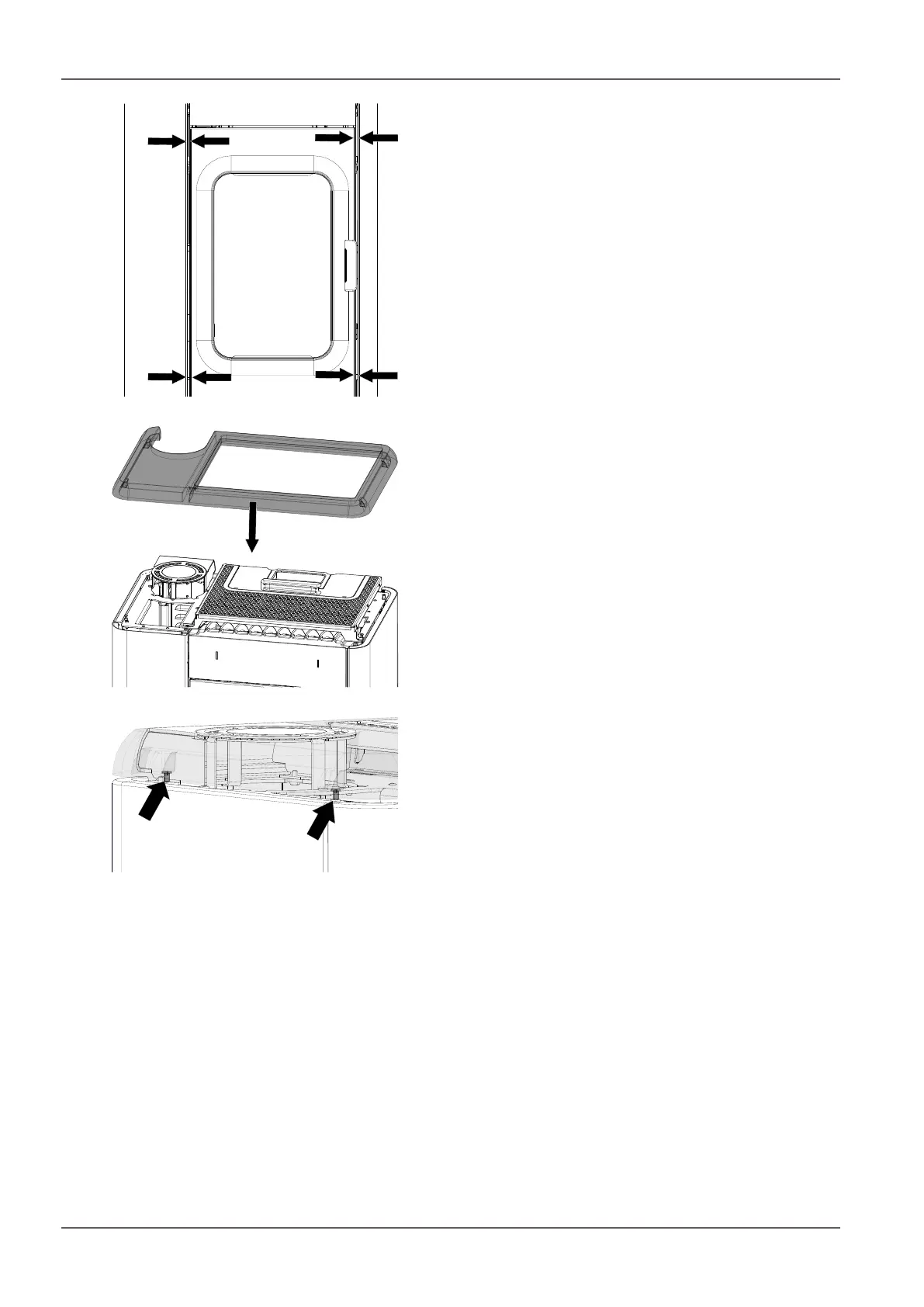

Fig.20: Adjusting the distance
6) The steel cladding should be at the same distance on
all sides. Otherwise it must be adjusted with the grub
screw.
Fig.21: Attaching the cover
7) Attach cover.
Fig.22: Adjusting the lid
8) These screws (left and right) can be used to adjust the
distance from the lid.
