Austroflamm Ruby - Cleaning the Exhaust Gas Pipes

Operating manual Ruby EN 14 | Maintenance
53
14.3 Cleaning the exhaust gas pipes

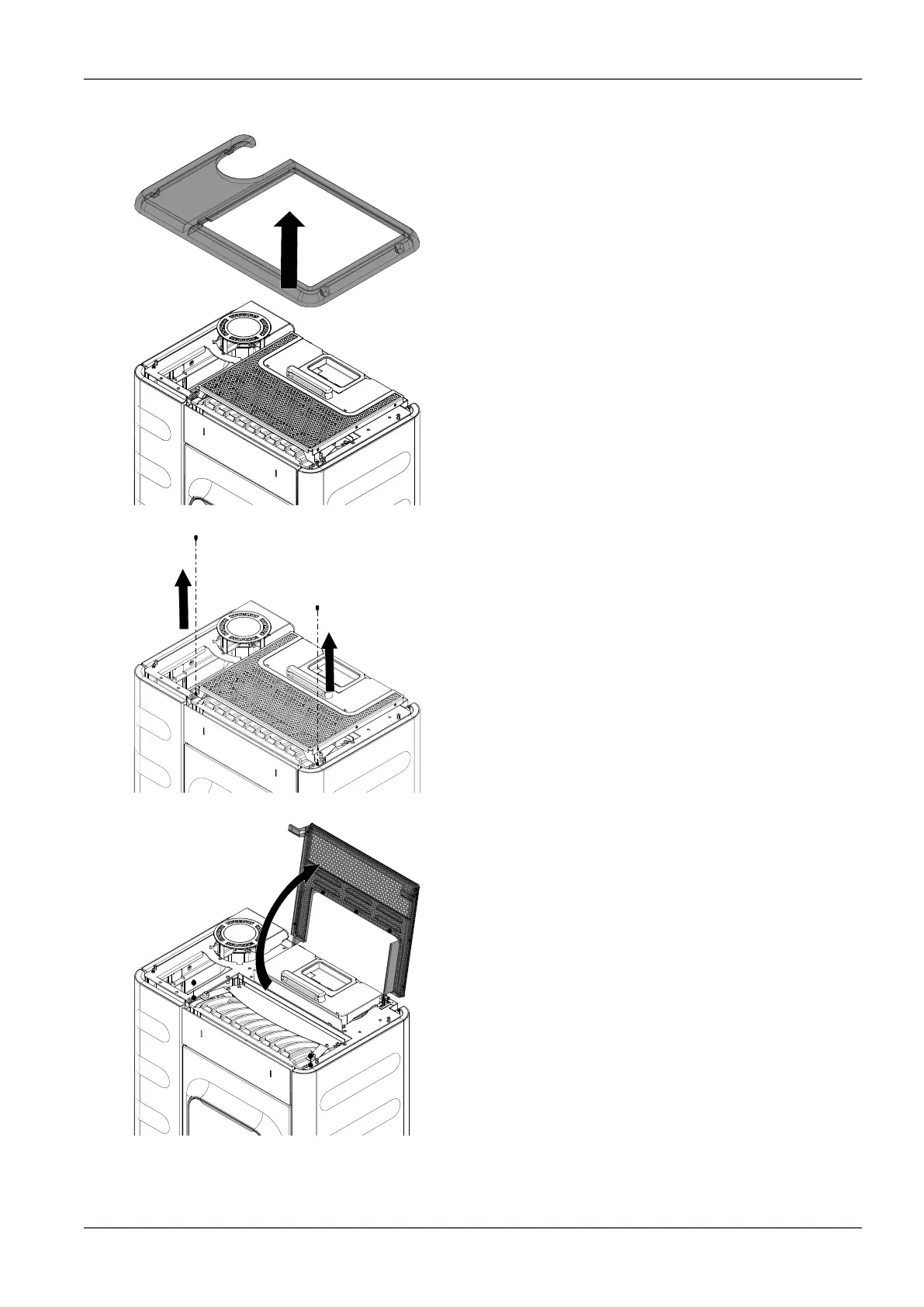

Fig.69: Removing the top cover
1) Remove top cover.
Fig.70: Loosening the screws
2) Loosen the screws from the cover on the left and right.
Fig.71: Opening the cover
3) Open cover.
