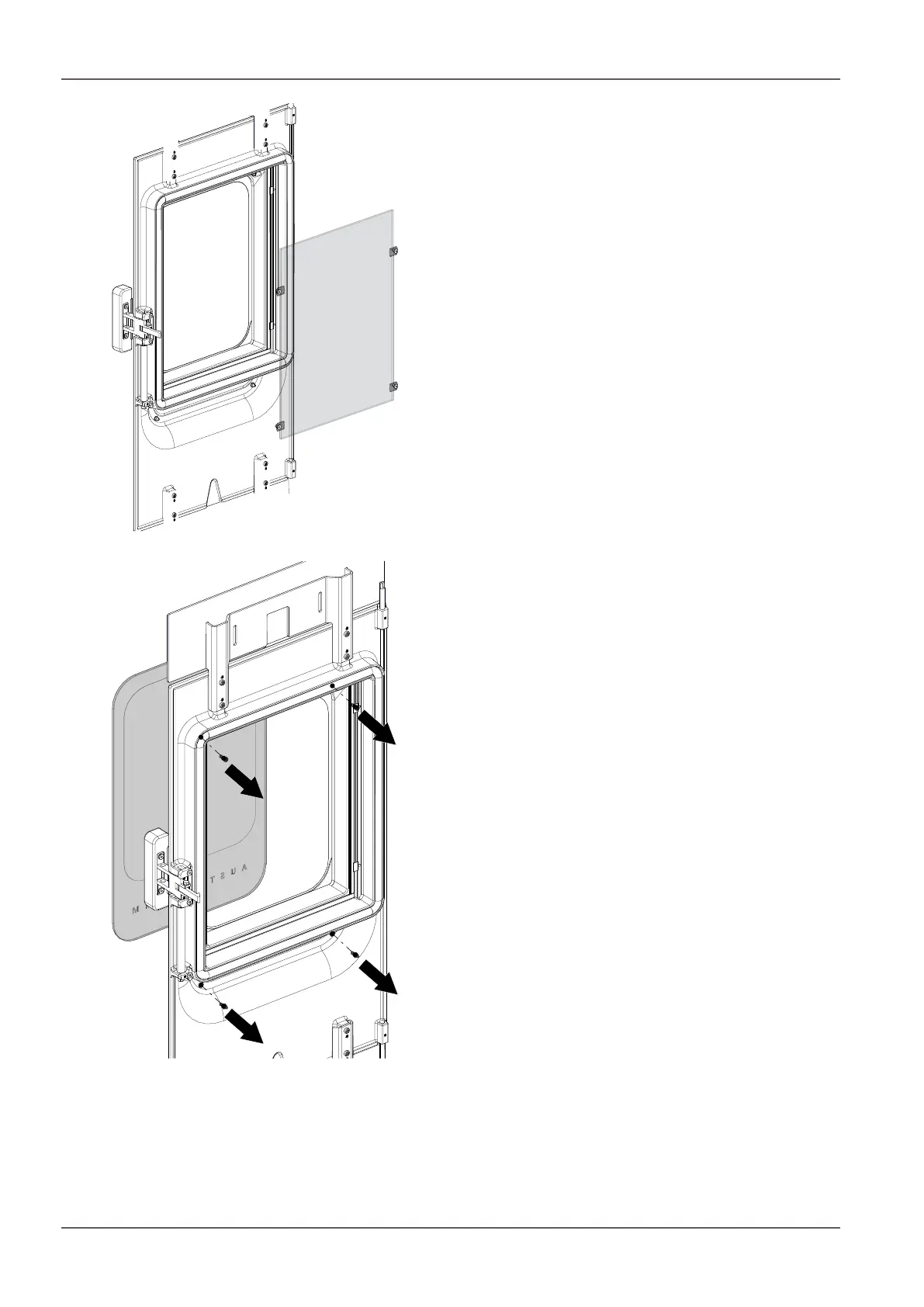

Fig.86: Removing the door window
3) Remove the inner door window.
Fig.87: Detaching the decorative glass
4) Undo the four head nuts together with the shims and
springs and detach the decorative glass.
5) Remove the seals which are in the top and bottom
corners of the glass door.
