Auta 700105 - Audio S1 Kit; Panel Codification

Kit fonia S1/Audio S1 kit
HASTA/UP TO
100 M.
SECCIONES
W. SECTIONS
HASTA/UP TO
200 M.
Alim. SEPARADA
SEPARATE Supply
(
(
EL CABLEADO NO DEBE PASAR CERCA DE LA LINEA ELÉCTRICA
THE WIRING MUST NOT BE RUN CLOSE TO THE ELECTRICAL LINE
1.5 mm² (AWG15)
1 mm² (AWG17)
0.5 mm² (AWG20)
1 mm² (AWG17)
ATF-12
220Vac
Teclado Video - FoníaAUDIO
14

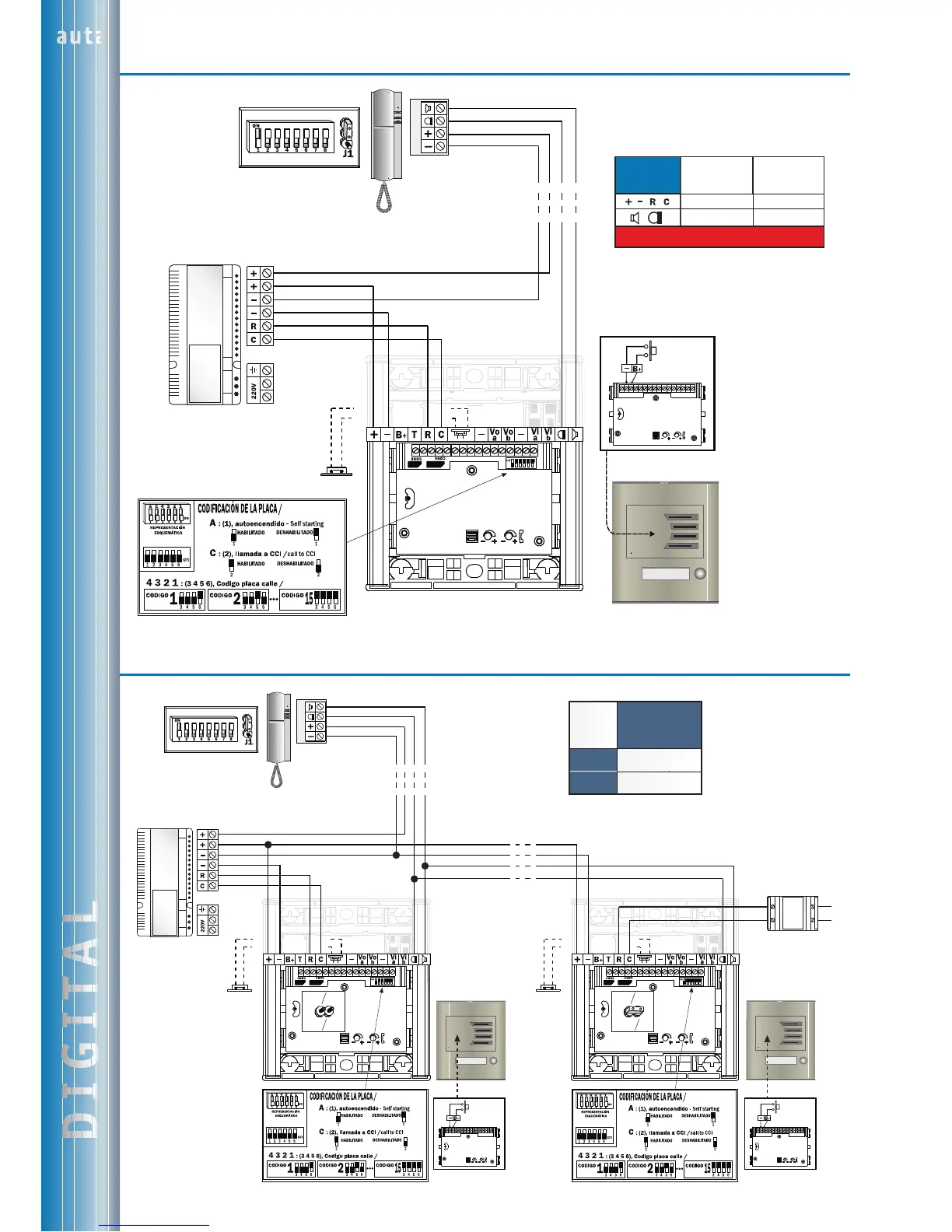

Kit fonia S1 (Hasta 16 accesos)/Audio S1 kit (Up 16 accesses)
ATF-98
CODIFICACIÓN TELÉFONO
PHONE CONFIGURATION
ABREPUERTAS
DOOR RELEASE
PULSADOR
AUXILIAR
ABREPUERTAS
DOOR RELEASE
AUXILARY
PUSHBUTTON
CODIFICATION PANEL
AVAILABLE UNAVAILABLE
AVAILABLE UNAVAILABLE
CODE CODE CODE
external panel code
SCHEMATIC
REPRESENTATION
PULSADOR
AUXILIAR
ABREPUERTAS
DOOR RELEASE
A
UXILARY
PUSHBUTTON
ATF-98
CODIFICACIÓN TELÉFONO
PHONE CONFIGURATION
ABREPUERTAS
DOOR RELEASE
ABREPUERTAS
DOOR RELEASE
PLACA
PRINCIPAL
MAIN
PANEL
PUENTE
INTERIOR
INTERNAL
JUMPER
PLACA
SECUND.
SECOND.
PANEL
PUENTE
INTERIOR
INTERNAL
JUMPER
CODIFICATION PANEL
AVAILABLE UNAVAILABLE
AVAILABLE UNAVAILABLE
CODE CODE CODE
external panel code
SCHEMATIC
REPRESENTATION
CODIFICATION PANEL
AVAILABLE UNAVAILABLE
AVAILABLE UNAVAILABLE
CODE CODE CODE
external panel code
SCHEMATIC
REPRESENTATION
PULSADOR
AUXILIAR
ABREPUERTAS
DOOR RELEASE
A
UXILARY
PUSHBUTTON
Max. TF/PH
Llamada Simul.
Same call
ATF-98
ALV-3.5A
4
