Auta 700105 - Power Supply Unit Distribution; ALV-3.5 A + ATF-12; ATF-98

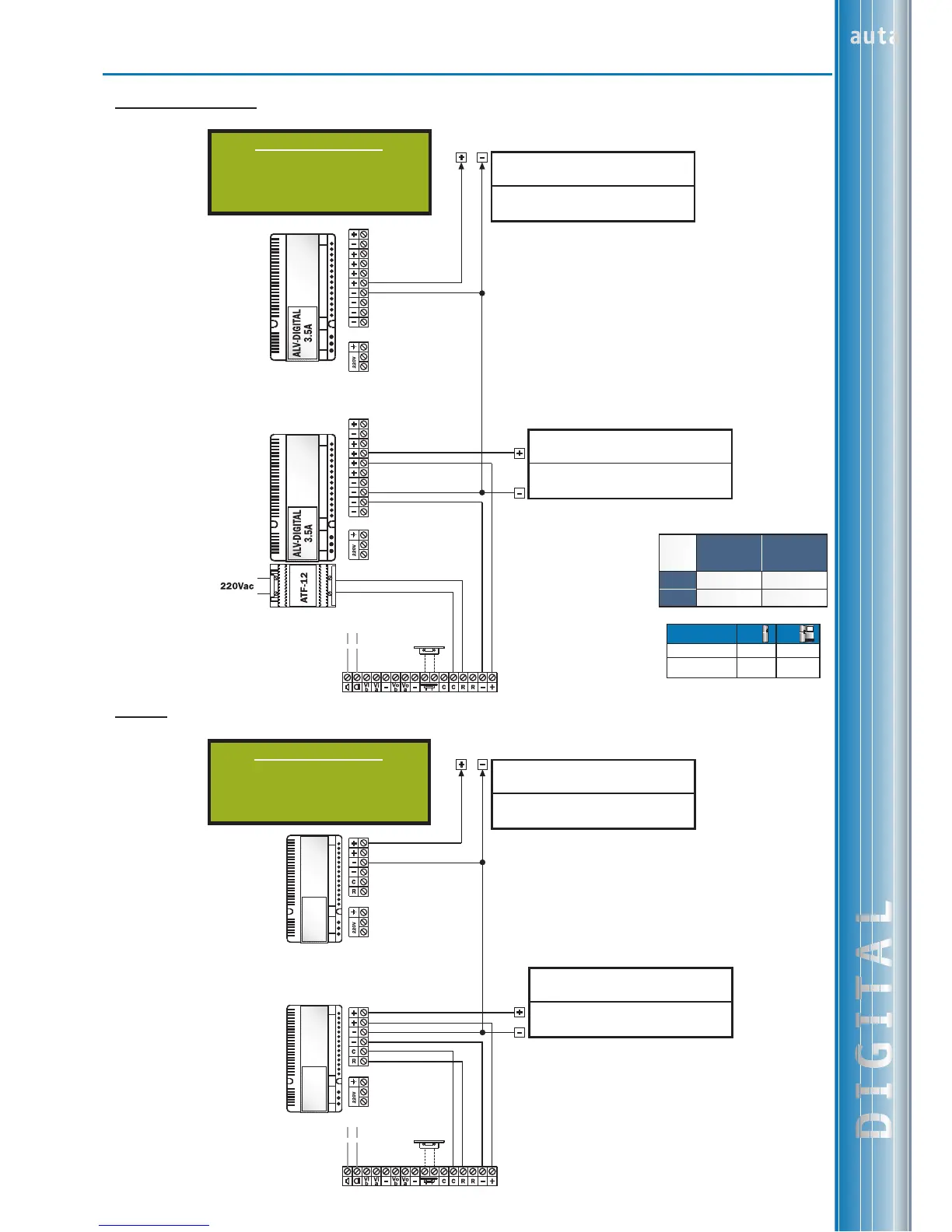

Dsitribucion de alimentadores/Power Supply unit distribution
ALV-3.5A + ATF-12
ATF-98
ATF-98
ATF-98
*The power supply unit ALV-DIGITAL 3.5A does not give A/C
current (R-C). So it has to be installed with and ATF-12 power
supply unit to release the electrical strike & to light the cardholder
ATF-98
10
MAX.
MAX.
20
ALV-3.5A + ATF-12*
40
80
*El ALV-3.5A no suministra corriente alterna
(R-C) por lo que se debe instalar junto a un ATF-12 para
accionar el abrepuertas y la iluminación de los tarjeteros.
Max. AVANT
Llamada Simul.
Same call
Max. AVANT
Llamada Selec.
Diferent call
ATF-98
ALV-3.5A
4
2 8
35
HASTA 80 TELEFONOS COMPACT/DECOR DIGITAL
UP TO 80 COMPACT/DECOR DIGITAL PHONES
HASTA 40 MONITORES COMPACT/DECOR DIGITAL
UP TO 40 COMPACT/DECOR DIGITAL MONITORS
HASTA 80 TELEFONOS COMPACT/DECOR DIGITAL
UP TO 80 COMPACT/DECOR DIGITAL PHONES
HASTA 40 MONITORES COMPACT/DECOR DIGITAL
UP TO 40 COMPACT/DECOR DIGITAL MONITORS
BATERIA
BATTERY
BATERIA
BATTERY
HASTA 80 TELEFONOS COMPACT/DECOR DIGITAL
UP TO 80 COMPACT/DECOR DIGITAL PHONES
HASTA 40 MONITORES COMPACT/DECOR DIGITAL
UP TO 40 COMPACT/DECOR DIGITAL MONITORS
HASTA 80 TELEFONOS COMPACT/DECOR DIGITAL
UP TO 80 COMPACT/DECOR DIGITAL PHONES
HASTA 40 MONITORES COMPACT/DECOR DIGITAL
UP TO 40 COMPACT/DECOR DIGITAL MONITORS
ATENCIÓN/WARNING
NO conectar los alimentadores
en paralelo
DO NOT connect the power supply
unit in paralel
ATENCIÓN/WARNING
NO conectar los alimentadores
en paralelo
DO NOT connect the power supply
unit in paralel
Teclado Video
Teclado Video - Fonía
Teclado Video
ALIMENTACION/POWER SUPPLY
DIGITAL
55
