Auta 700105 - Page 61

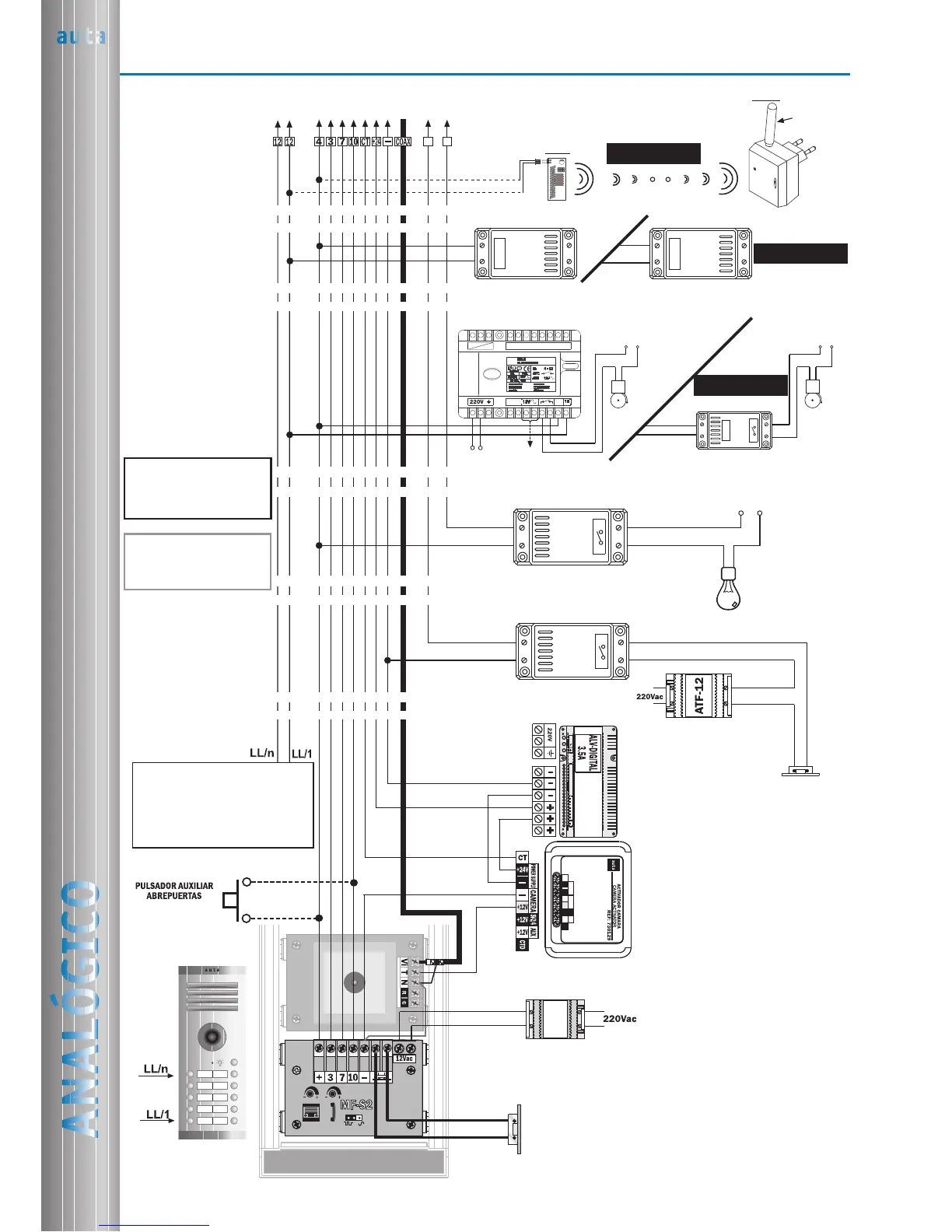

Accesorios/Accessories
Teclado Video - FoníaACCESORIOS/ACCESSORIES
60
ATF-12
AUX
2C
220 Vac
RELÉ AUXILIAR
AUXILIARY RELAY
Ref: 730206
ABREPUERTAS AUX.
AUX. DOOR RELEASE
Ref: 730206
SOLO LLAMADA ZUMBADOR
ONLY BUZZER CALL
RELE AUXILIAR ELECTRONICO Ref: 730208
ELECTRONICAL AUXILIARY RELAY Ref:730208
220 Vac
220 Vac
RELE
ELECTRONIC
REF.
PRIM.
730208
220V
50-60Hz. 18VA
MADE IN SPAIN
FUSIBLE ELECTRÓNICO
Desconectar el primario un
minuto aprox., despues de
un cortocircuito.
ELECTRONIC FUSE
After short-circuit main voltage
suply must be disconnected for
one minute approx.
OUT:
IN: 4 - 12
OUT: 12V
12V
4
12
auta
OUT
Aux
RELE AUXILIAR
AUXILIARY RELAY
Ref: 730206
4 12
220 Vac
4 12
O-1
Ref: 730106
4 12
Z-1
Ref: 730105
El cableado para el sistema de
AUDIO es exactamente el mismo.
No existe el terminal "2C", pero
aparecen "Aux1/ON" y "Aux2",
cuya conexión es igual que el
terminal "Aux" aqui representado.
BAJANTE
RISER
Emisor
Emitter
Receptor
Receiver
Antena Opcional
Optional Antenna
(730135)
ACCIONAMIENTO
TIMBRE AUXILIAR
INALÁMBRICO
WIRELESS BELL
INSTALLATION
(730133)
SOLO LLAMADA ZUMBADOR
ONLY BUZZER CALL
SOLO LLAMADA ZUMBADOR
ONLY BUZZER CALL
RELÉ AUXILIAR
AUXILIARY RELAY
ABREPUERTAS
DOOR RELEASE
CONECTAR AL BORNE LIBRE
DEL PULSADOR DE LA PLACA
CORRESPONDIENTE
CONNECT TO EACH FREE
TERMINAL OF THE PANEL
PUSHBUTTONS
AUXILIARY DOOR RELEASE
PUSHBUTTON
The wiring connections are the
same for an AUDIO system.
There don't appear the "2C" terminal
but we have the "Aux1" and "Aux2".
It connections are the same that the
"Aux" terminal we can see here.
