22

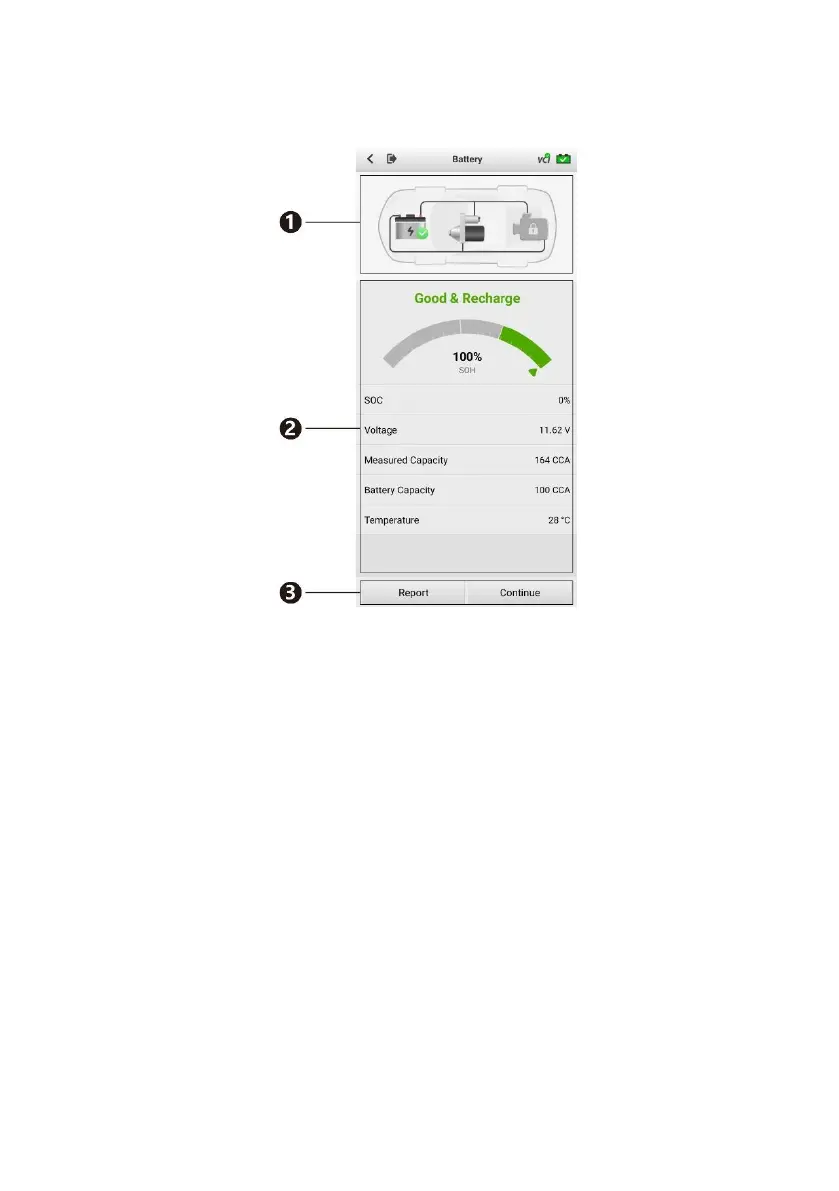

Figure 4-7 Sample Battery Test Result Screen
1. Process Buttons
2. Test Report
3. Function Buttons
Process Buttons
Tap any of the process buttons to advance to the corresponding test — battery
test, starter test or generator test. A status icon will appear on the bottom right
corner of the button, indicating the test results.
Battery Test Results
The battery test results include a color-coded results summary, a list of test
data, and repair tips.
