Autel MaxiCharger AC Compact - Product Overview

5

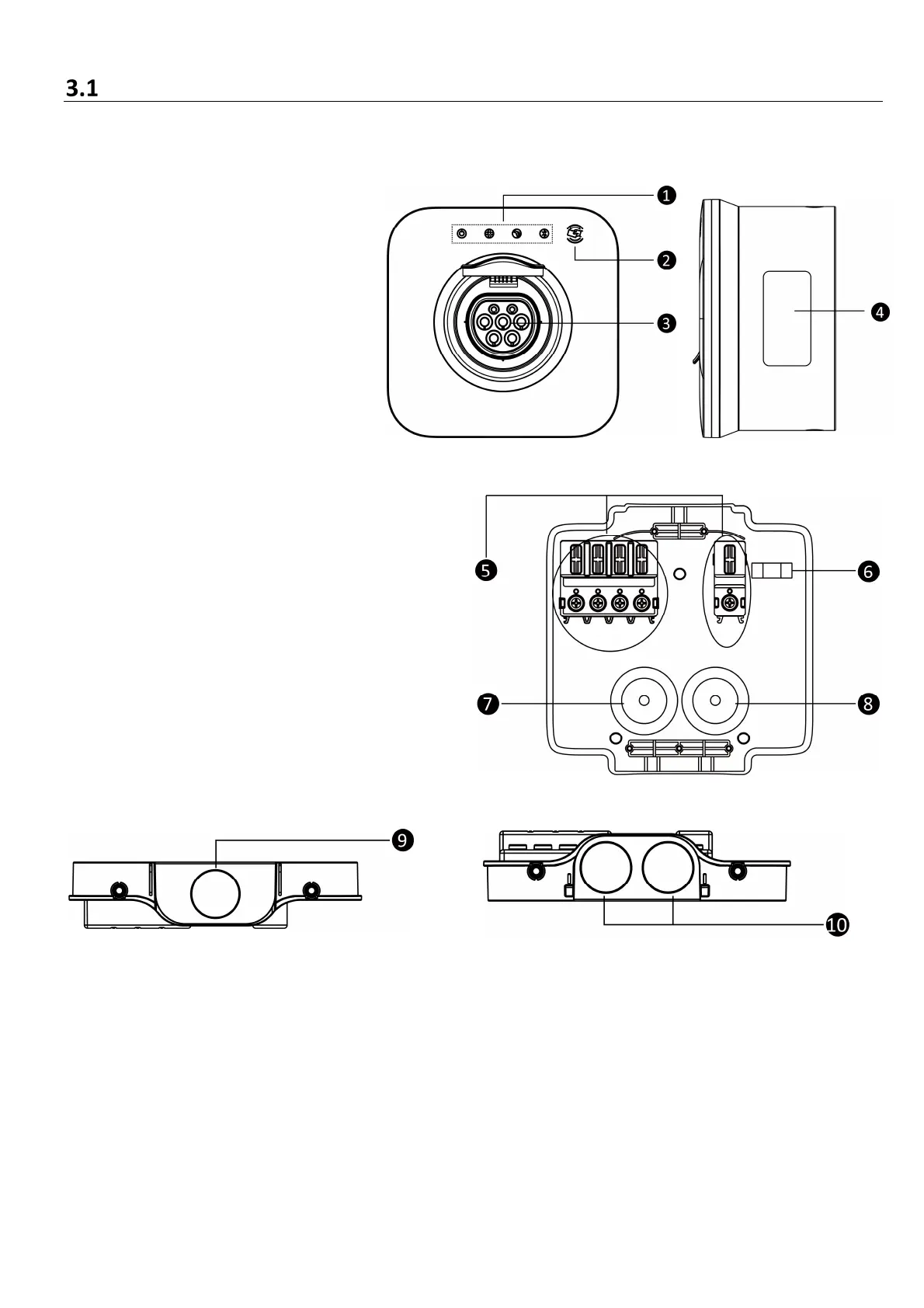

Product Overview
1. LED Indicators (from left to right):
 Power LED
 Internet Connection LED
 Charging LED
 Bluetooth Connection LED
2. RFID Card Reader
3. Socket
4. Product Label
5. Terminal Block
6. Built-in Spirit Level
7. Back Entry Location for
AC Input Cable
8. Back Entry Location for
Ethernet and/or RS485 Cable
9. Top Entry
10. Bottom Entry
