19
Completing the Installation

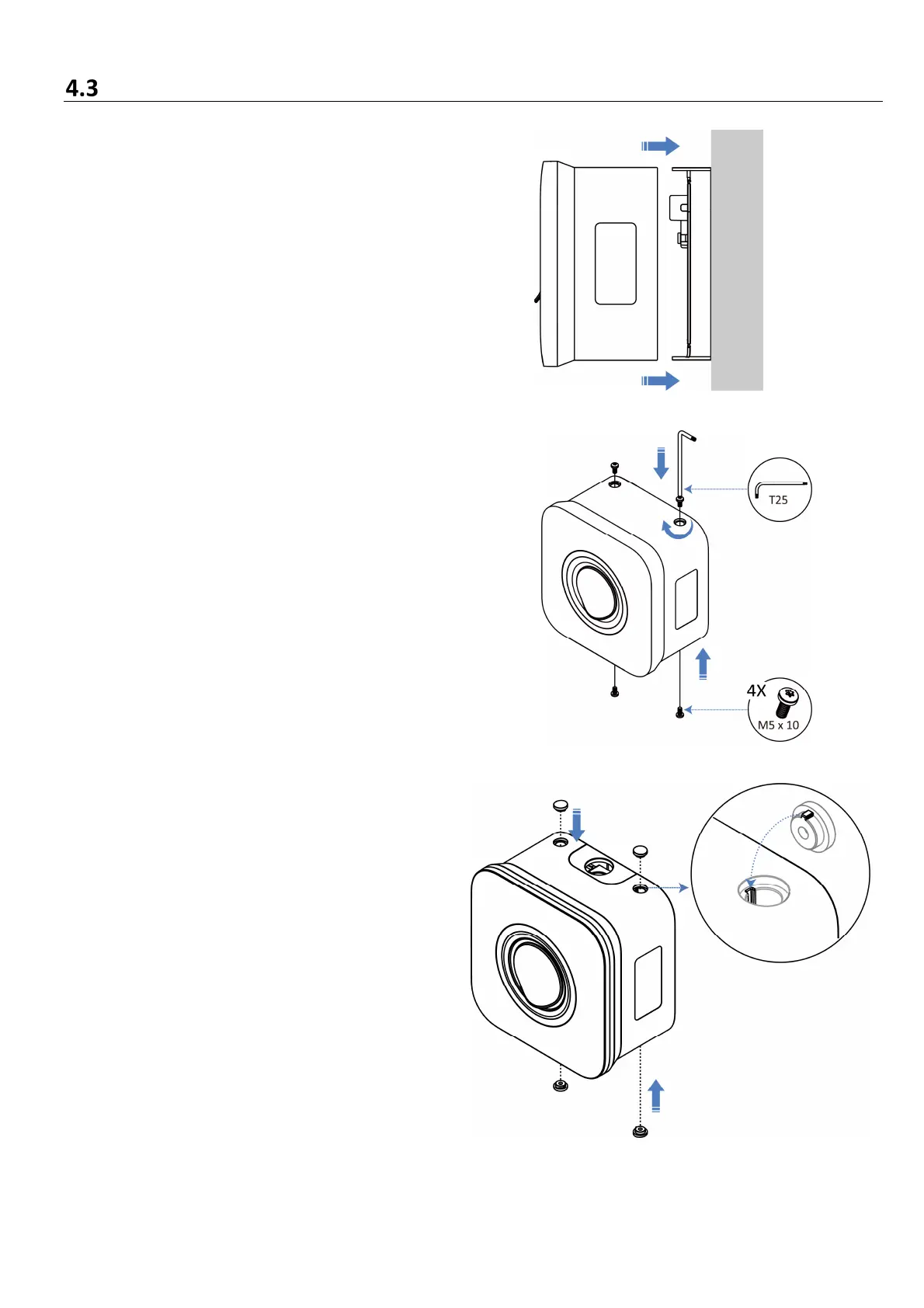

1. Attach the main unit onto the wirebox
by pushing it forcefully to tightly fit the
wirebox. Ensure the internal seal is
compressed.
2. Insert the four M5 x 10 screws and fully
tighten them using the T25 screwdriver.
3. Install the four screw plugs provided in
the package. Ensure the contact pins fit
the contacts in the main unit. The
installation is completed now.
