14
4 Diagnostics
The Diagnostics application can retrieve ECU information, read & erase
DTCs, and view live data. The Diagnostics application can access the
electronic control unit (ECU) for various vehicle control systems including
engine, transmission, antilock brake system (ABS), airbag system (SRS).
Getting Started
Ensure a communication link is established between the test vehicle and
the Display Tablet via the main cable.
Vehicle Menu Layout
When the tablet is properly connected to the vehicle, the platform is ready to
start vehicle diagnosis. Tap on the Diagnostics application button on the
MaxiPRO MP808 Job Menu to access the Vehicle menu.
1. Top Toolbar Buttons
2. Vehicle Manufacturer Buttons

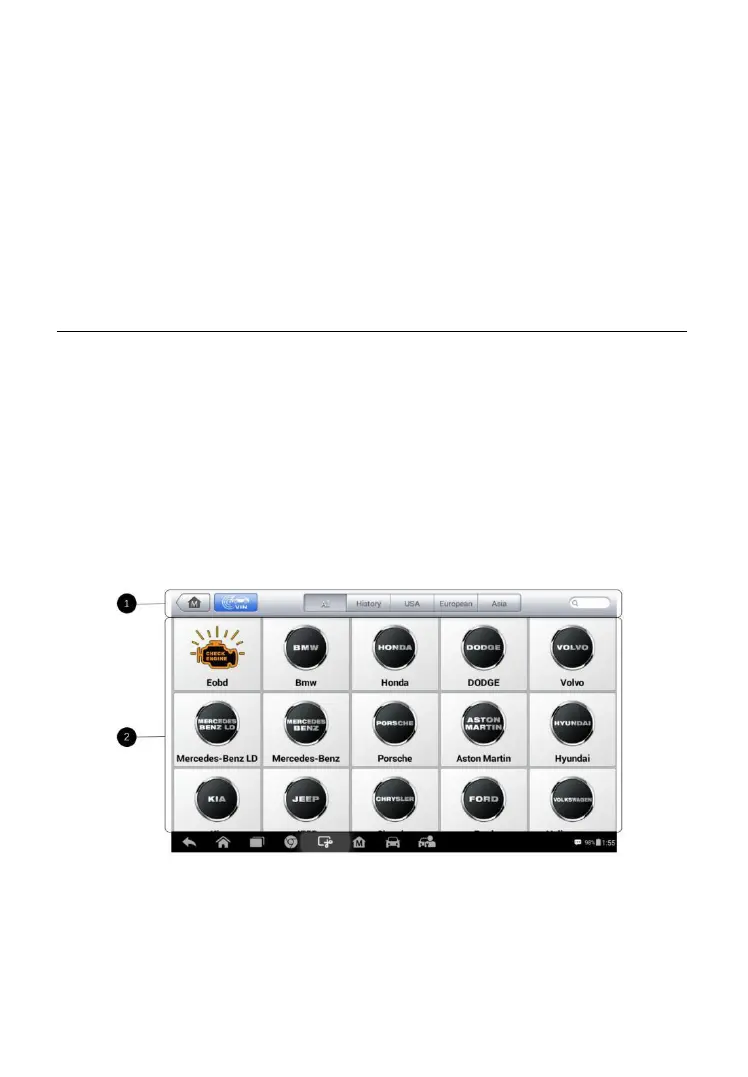

Figure 4- 1 Sample Vehicle Menu
