35
To cancel Graph Merge mode, tap the drop-down button on the right
side of the parameter name, and select a data display mode.
Show – tap this option to switch between the two options; one displays
the selected parameter items, the other displays all the available items.
Setting – tap this button to access setting menu to set the trigger mode,
recording duration and threshold values for data recording, and define
other control settings.
There are four navigation buttons on top of the Setting mode screen.
Selected Button – displays the configuration screen to set the threshold
values, an upper limit and a lower limit, for triggering the buzzer alarm.
This function is only applied to the Waveform Graph display mode.
a) MIN – tap to display virtual keyboard and enter the required lower
limit value.
b) MAX – tap to display virtual keyboard and enter the required upper
limit value.
c) Buzzer Alarm – switches the alarm on and off. The alarm function
makes a beep sound as a reminder whenever the data reading
reaches the preset minimum or maximum point.
To set threshold limits for the parameter values
1. Tap the Setting functional button at the bottom of the Live Data
screen.

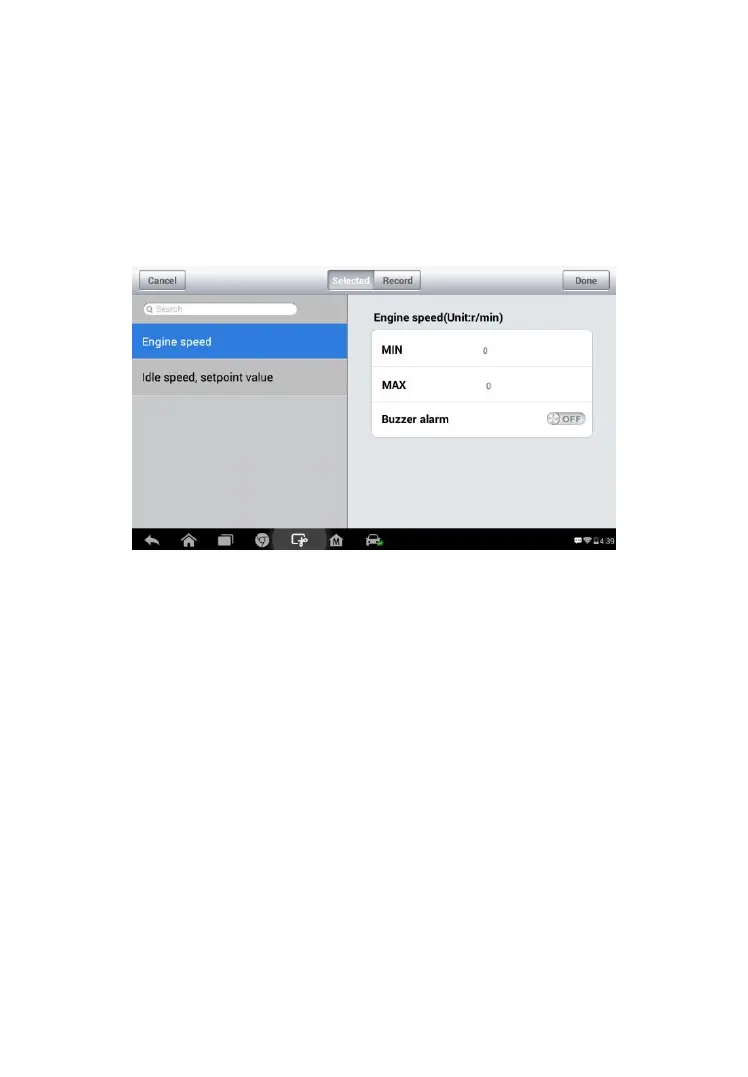

Figure 4- 15 Sample Setting Mode in Live Data
