2.
The main board AS1200
2.1.
Overview
The board AS1200, which is used in all D1 logic units, operates with a single-phase power supply,
regardless of whether the motor is single-phased or three-phased. It makes it possible to:
- manage obstacle commands (opening, closing, stop).
- manage sensor boards such as presence detectors and photocells.
- program automatic closing with various timers.
- work with three modes of operation: “normal”, “maintained”, and “step-by-step”.
- supply two reversible contacts through two relays.
- define the direction of the passage by means of sensors.
2.2.
Description

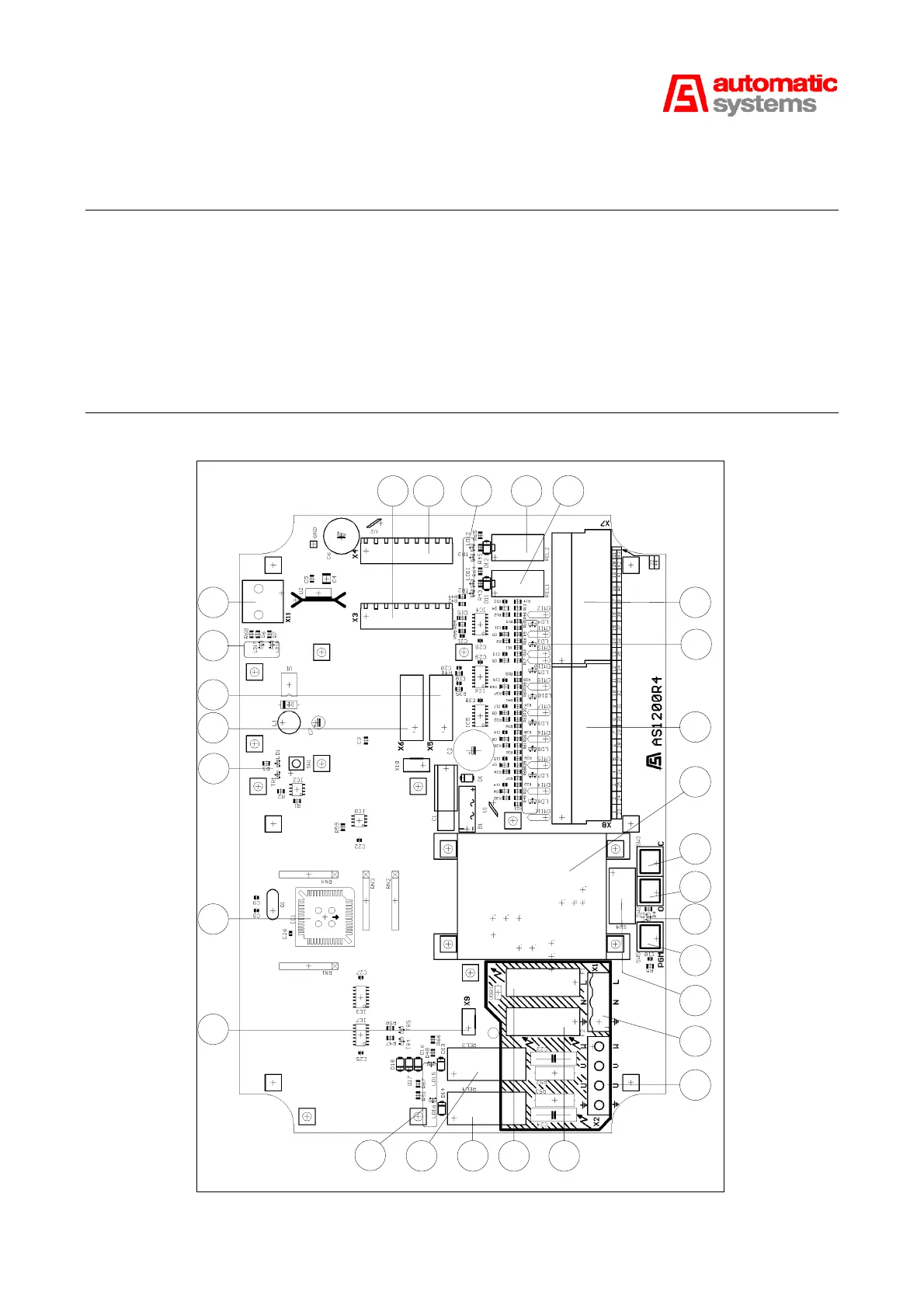

1:3 1:4 1:26 1:21 1:20
1:7
1:25
1:8
1:11
1:14
1:13
1:17
1:16
1:15
1:1
1:2
Fig. 1
1:27 1:22 1:23 1:18 1:19
1:10
1:28
1:5
1:6
1:24
1:12
1:9
