Automatic Technology ATS Series - Appendix; Status Indication during Operating Mode

ATS Series Instruction Manual20
24. Appendix

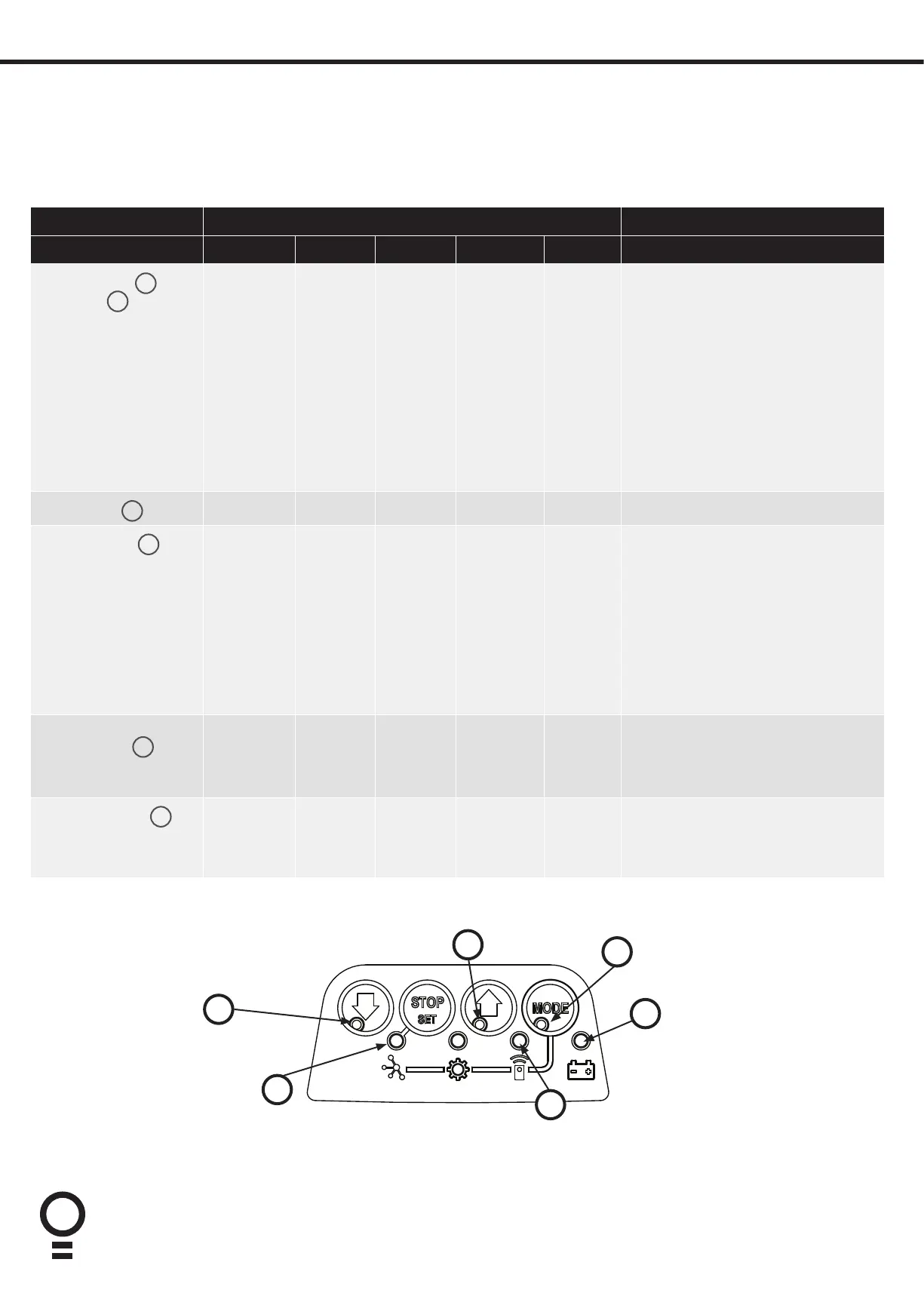

A - Status Indication during Operating Mode.
LEDs Light Status Description
BLUE GREEN YELLOW RED PURPLE
DOOR OPEN
2
AND
CLOSED
1
LEDS
solid
flashing
flashing
solid
solid
flashing
flashing
flashing
solid
Open
Open with Autoclose timer running
Opening / Obstructed on Open
Closed
Closing / Obstructed on Close
Stopped
Partial Open
MODE LED
3
flashing Load Diagnostics mode
BATTERY LED
4
off
solid
flashing
rapid
flashing
Battery not used / not fitted
Battery charged
Battery charging, when connected
to power, without power battery
in use (holding STOP for 10s will
shutdown)
Battery failed
REMOTE CONTROL
STATUS LED
5
flashing
rapid
flashing
Remote lockout
Remote Control Activity
NETWORK LED
6
(not available on ATS-2
model)
