ATS Series Instruction Manual22
a. Switch power on and the BLUE LED on the CLOSE button
will start to flash to indicate that the opener is ready to
set the Close travel limit
b. Press the MODE button until the TRANSMIT
LED is lit.
c. Press and HOLD the CLOSE button
to set the Open /
Stop / Close function. The Main light will start to flash rapidly.
d. Press and hold button 1 on the transmitter, then release
transmitter button.
e. Press and hold button 1 on the remote control button again
until the main light stops flashing rapidly.
f. Release both buttons. The transmitter button is now coded,
press to test and observe the speed of the door through a
full cycle.
g. The drive speed is set to the fastest setting by default. This
may not be suitable for larger doors or for single piece doors:
CLOSE limit:
i. Using the programmed transmitter, press and hold the
button 4 to close. To inch the door, single presses of the
button 4 will move the door to desired limit.
ii. While inching (to CLOSE) to set the close speed, press
and hold button 4 on the remote and by pressing the
SET button 2 the opener will cycle through all three
speed modes as shown in table.
iii. Once at the desired speed, release the remote button 4.
iv. Continue inching the door to the desired position. We
recommend the CLOSE limit position being the first
point of contact of the rubber strip ( at the bottom of the
door) with the ground.
v. If the door overshoots, press the OPEN button 1 on the
remote to move the door in the OPEN direction.
vi. When the door is at the desired CLOSE position, press
the SET button 2, the GREEN LED on the OPEN button
will now flash.

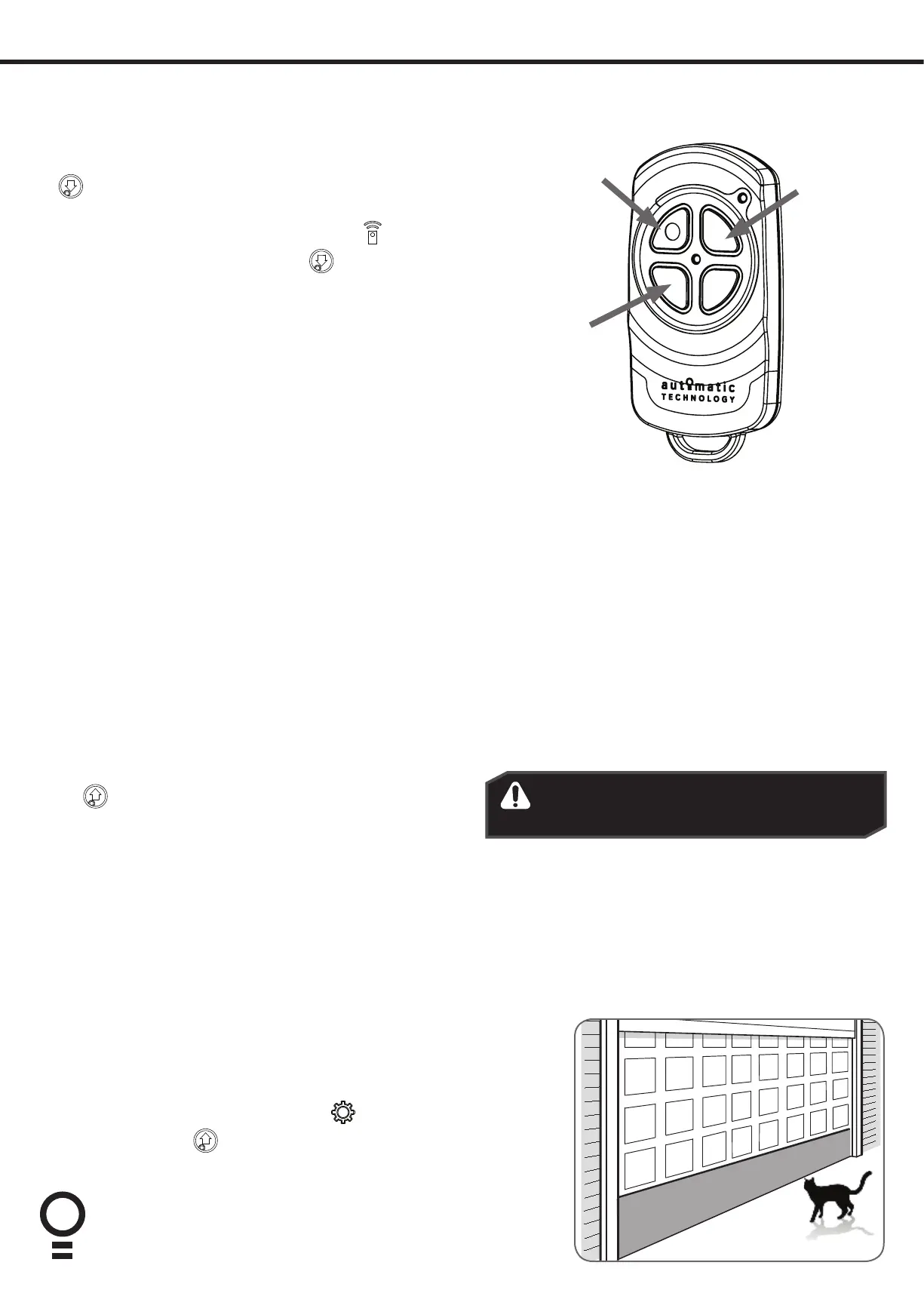

E - Setting limits via Transmitter
Button 1
(inch Open)
Button 2
(Set)
Button 4
(inch Close)
OPEN limit:
i. Using the programmed transmitter, press and hold the
button 1 to open. To inch the door, single presses of
the button 1 will move the door to desired limit.
ii. While inching (to OPEN) to set the open speed, press
and hold button 1 on the remote and by pressing the
SET button 2 the opener will cycle through all three
speed modes as shown in table.
iii. Once at the desired speed, release the remote button
1.
iv. Continue inching the door to the desired position. We
recommend the OPEN limit position being the height
of the garage opening
v. If the door overshoots, press the CLOSE button 4 on
the remote to move the door in the CLOSE direction.
WARNING! The door will automatically close,
open and close again after the next step.
Ensure that nothing is in the door’s path.
vi. When the door is at the desired OPEN position, press
the SET button 2. The door will now automatically
close and open to calculate the safety obstruction
settings.
When activated, PET mode drives the door to a preset position from the close
position, therefore allowing a pet or parcel to go under the door.
a. Drive and stop the door at the desired PET mode open position by pressing
the transmitter button coded for Open/Stop/Close operation.
b. Press the MODE button until the GEAR
LED is lit.
c. Press OPEN button
to save PET position - Main light will flash and both
OPEN and CLOSE LED will light up.
F - Setting the PET Mode position
