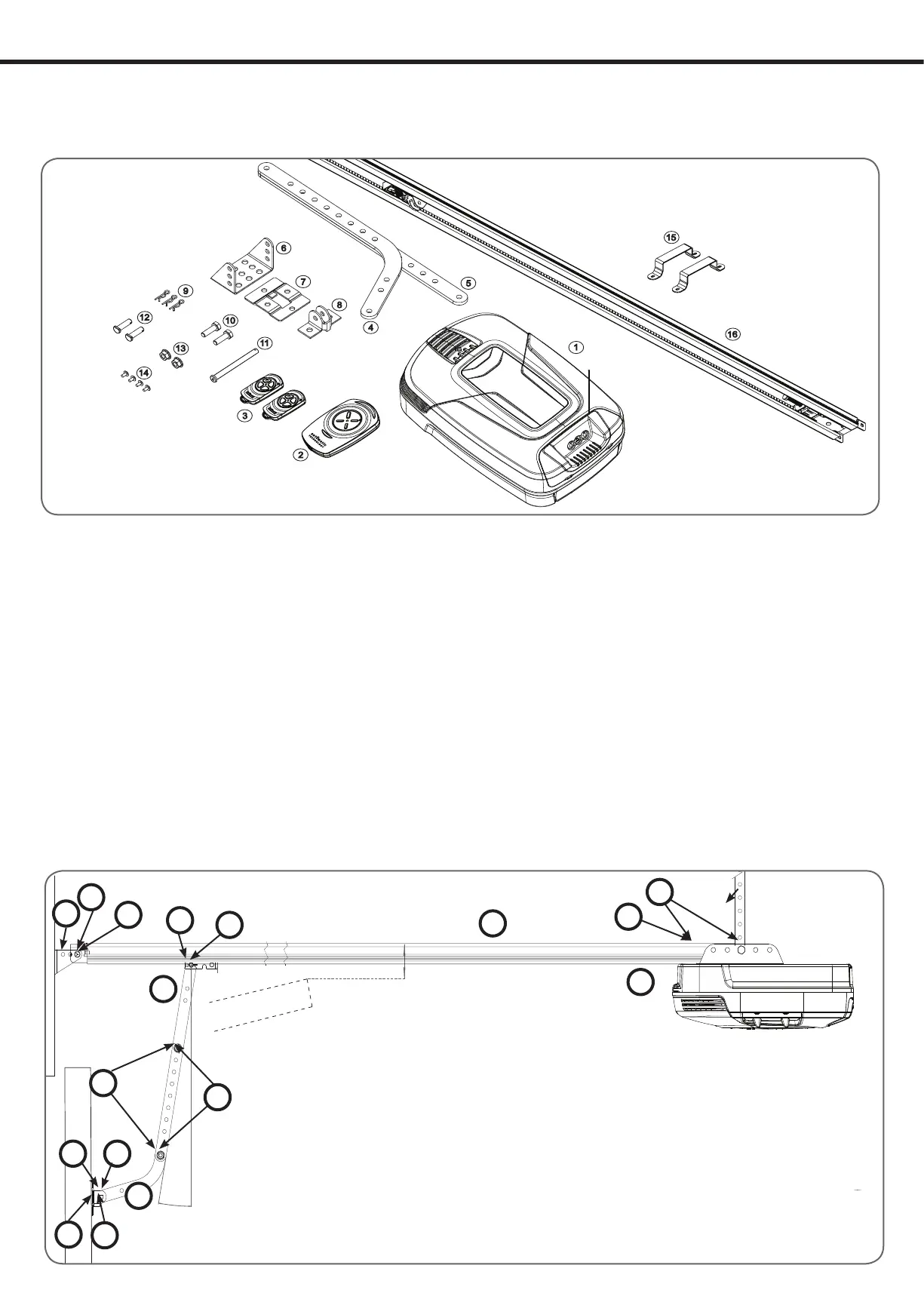

4. Kit Contents
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
1. 1 x ATS drive unit
2. 1 x Wall mount transmitter
3. 2 x Transmitters and batteries
4. 1 x Bent arm door attachment
5. 1 x Straight arm door attachment
6. 1 x Wall bracket TS01
7. 1 x Door bracket Locator
8. 1 x Door bracket
9. 3 x Pin Snap SSP 8 ZNU 31080
10. 2 x Hex Head screw M8x25
11. 1 x Pin 0890
12. 2 x Clevis Pin 0829
13. 2 x Hex Serration flange nut M8
14. 4 x Hex flange screw taptite ‘S’ M4 x 10
PLUS
15. 2 x Track Bracket
16. 1 x Pre-Assembled Rail
10.00°
min
MINIMUM HEAD
ROOM FOR STEEL
RAIL 57mm
DOORS HIGHEST
POINT
15
1
16
5
4
6
7
12
8
14
11
9
13
10
5. Position
Perforated
Angle
The Opener:
a. MUST BE installed in a dry position, protected from weather.
b. REQUIRES properly earthed 3 pin single phase power on the ceiling within an arms length of the opener.
c. Requires a MINIMUM HEADROOM of 57mm between the highest point of the door’s travel and the ceiling.
d. Use the diagram below as a reference when completing the installation.
