Automatic Technology GDO-9 - C-Rail Attachment

Owner Installation Instructions GDO-9 13
C-Rail Attachment
05
fi g
06
fi g
Locate shaft into sprocket
Shaft
Hex fl ange screw taptite ‘S’ M4 x 10
Track bracket (x2)

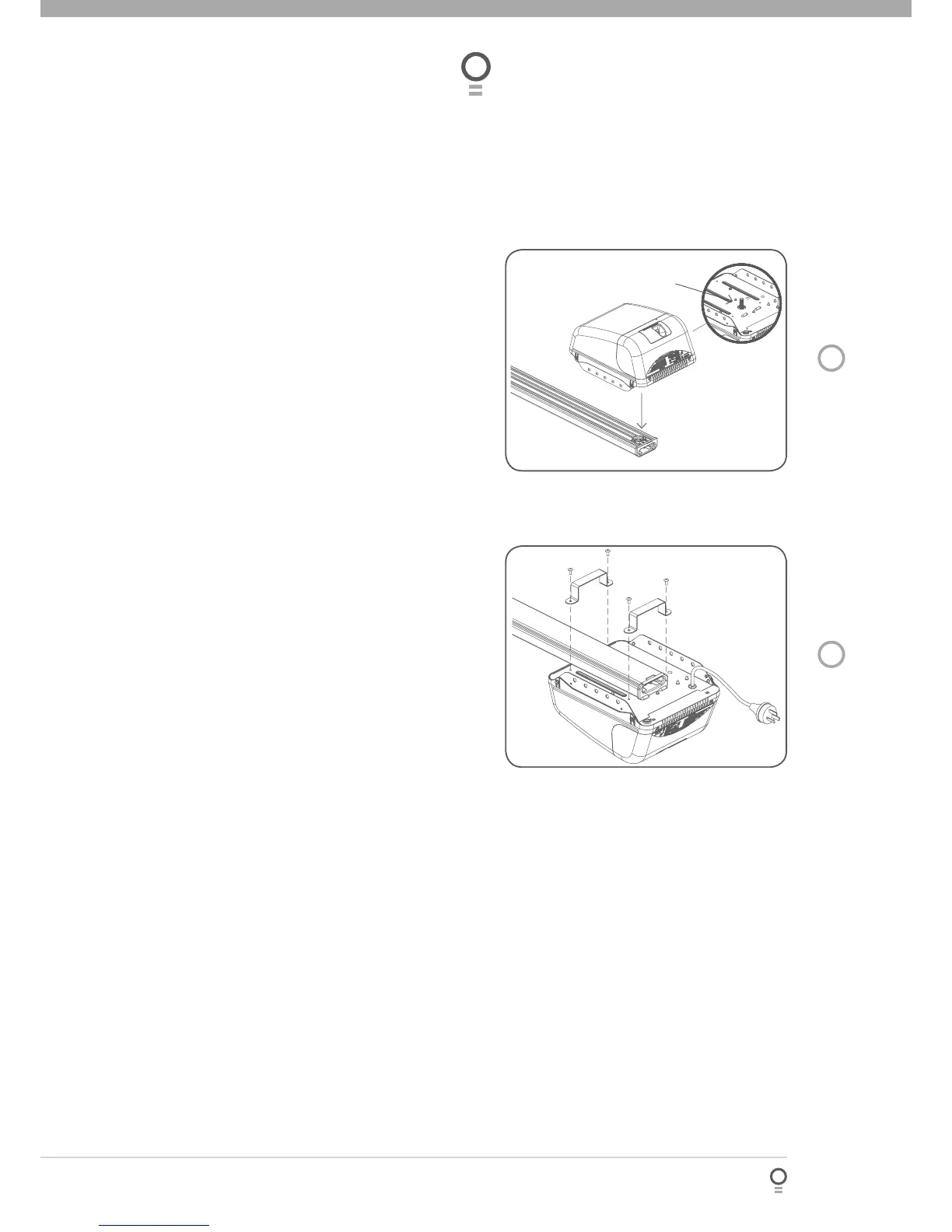

Step 1 - Secure C-Rail to Drive Unit
Locate and insert the shaft of drive unit into the C-
Rail’s sprocket (Fig. 05).
Fix the two track brackets with four screws supplied
in accessory pack (Fig. 06).
a.
b.
