GDO-9 Owner Installation Instructions
Determine the Door Type
Step 2 - Determine Door Type

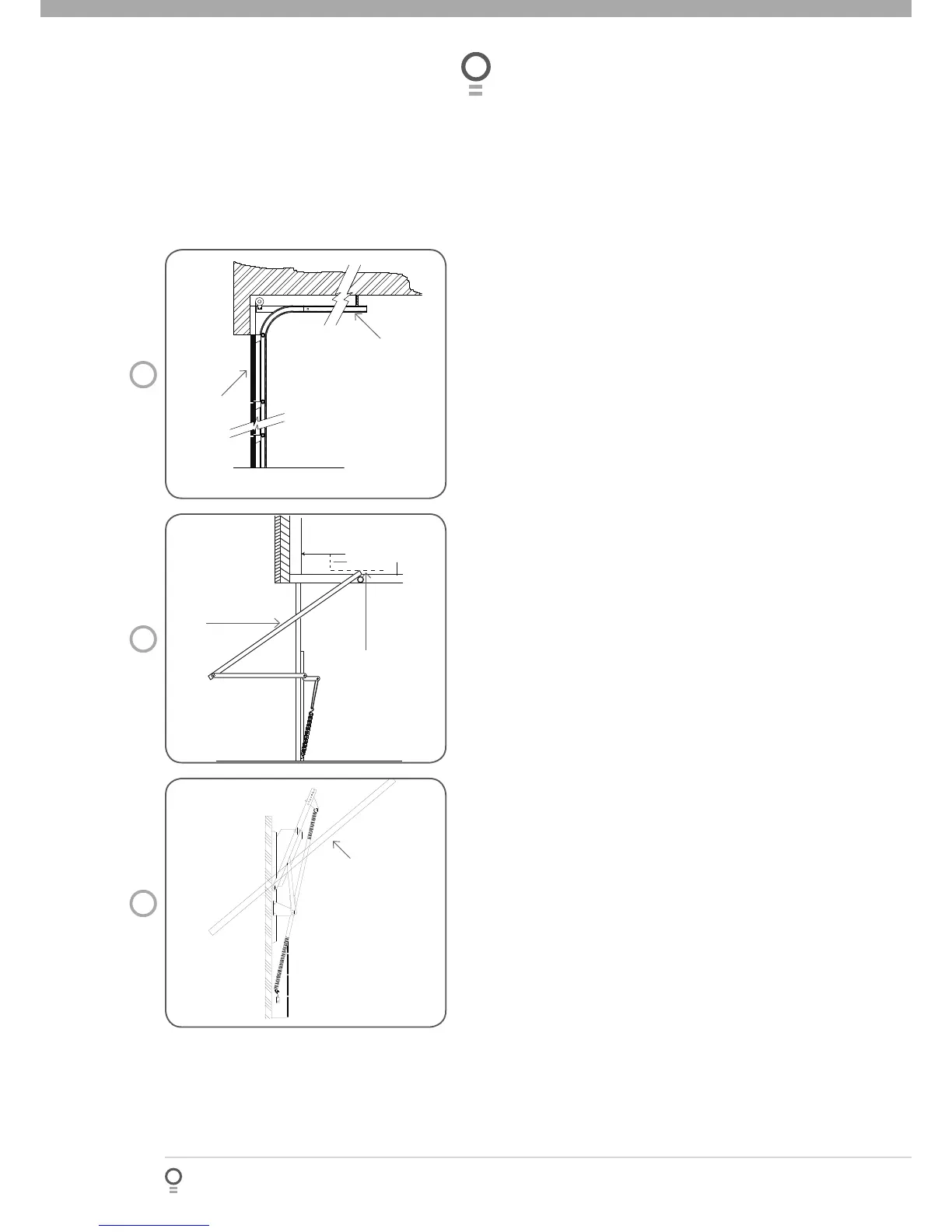

Determine which type of garage door you have as
illustrated below. (Fig. 07 to Fig. 09) .
For a sectional (panel) door on tracks (Fig. 07)
proceed with the installation from Step 3.
For a one-piece door on tracks (Fig. 08)
proceed with the installation from Step 3.
For a one-piece door without tracks (on springs) (Fig. 09)
proceed with the installation from Step 7.
07
fi g
08
fi g
09
fi g
Door
Sectional door with track
Door
Track
One piece door with
track
One piece door
without track
Door
Highest point of travel
Track
Header wall
