Menu 8.5 Service counter
The opener provides a periodic service counter which
can be set to expire after a number of drive cycles.
When expired, the opener will beep at the beginning
of each drive cycle and a message will be displayed

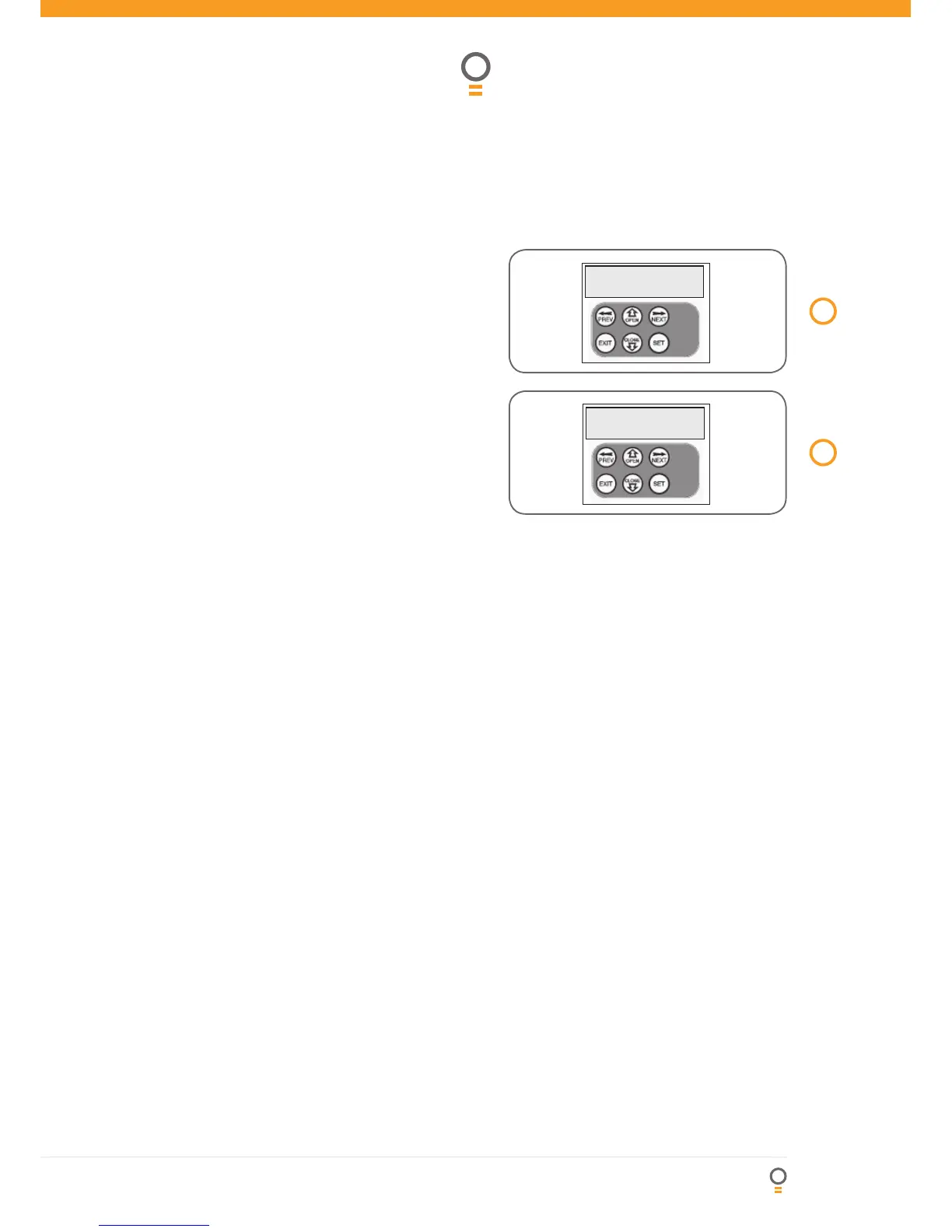

on the MAIN SCREEN (Fig. 52). This tool displays
the current value of the service counter and allows
the user to set the value using the normal parameter
editing techniques (See PARAMETER VIEWING AND
EDITING). The service counter is set at (60,000) from
the factory.
Menu 8.6 Counters
The opener keeps a count of number of times a
particular event occurs. The list of event counters kept
is shown below. When this tool is selected the fi rst
event counter is shown (Fig. 53). Press NEXT or PREV
to step through the list. The example below shows
the OPEN CYCLE event counter with a value of 1234.
When fi nished viewing press EXIT.
1: Open Cycles
2: Close Cycles
3: Ped Cycles
4: Setup Limits
5: Comm’s Loss
6: Sync Faults
7: Overlaps
8: M1 Open Stall
9: M1 Close Stall
10:M1 Open Obstructions
11: M1 Close Obstructions
12: M1 Open Overloads
13: M1 Close Overloads
14: M1 PWM Sync Faults
15: M1 PWM Drive Faults
16: M1 Direction Faults
17: M1 Sensor Faults
