ATS Series Installation Manual29

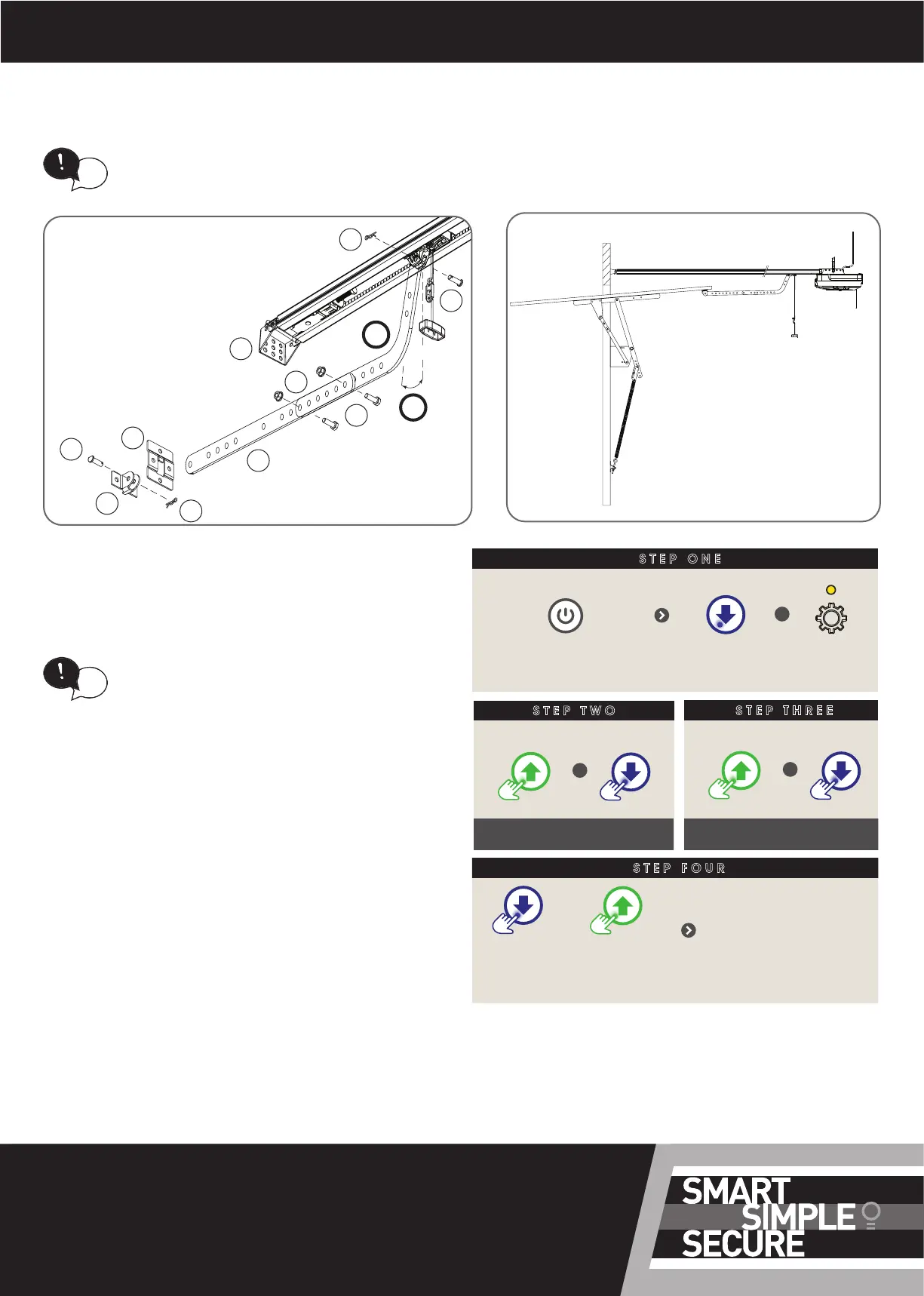

G - Setting up Tilt Door
Prior to limit set up, the opener can be set to J-Type Tilt Profile.
This process allows the opener to pre-set to J-Type settings
where the limit is not greater than 1500mm.
In JTYPE Mode the drive speed is reduced
and cannot be adjusted.
tip
STEP ONE
SETTING UP TILT DOOR
STEP TWO
To activate JTYPE Mode
+
Press together and opener
will beep TWICE
To return to Standard Mode
+
Press together and opener
will beep ONCE
STEP THREE
Switch power on
+
BLUE LED will ash
& gear LED lit
STEP FOUR
To move the door to the
halfway point.
OR
Proceed to Setting
Close Limit position.
If installing on a door with a bad wave action,
lengthening the arm will assist in reducing this
effect.
tip
2
A
7d
7c
7f
7i
7b
7i
7f
7e
7g
7j
