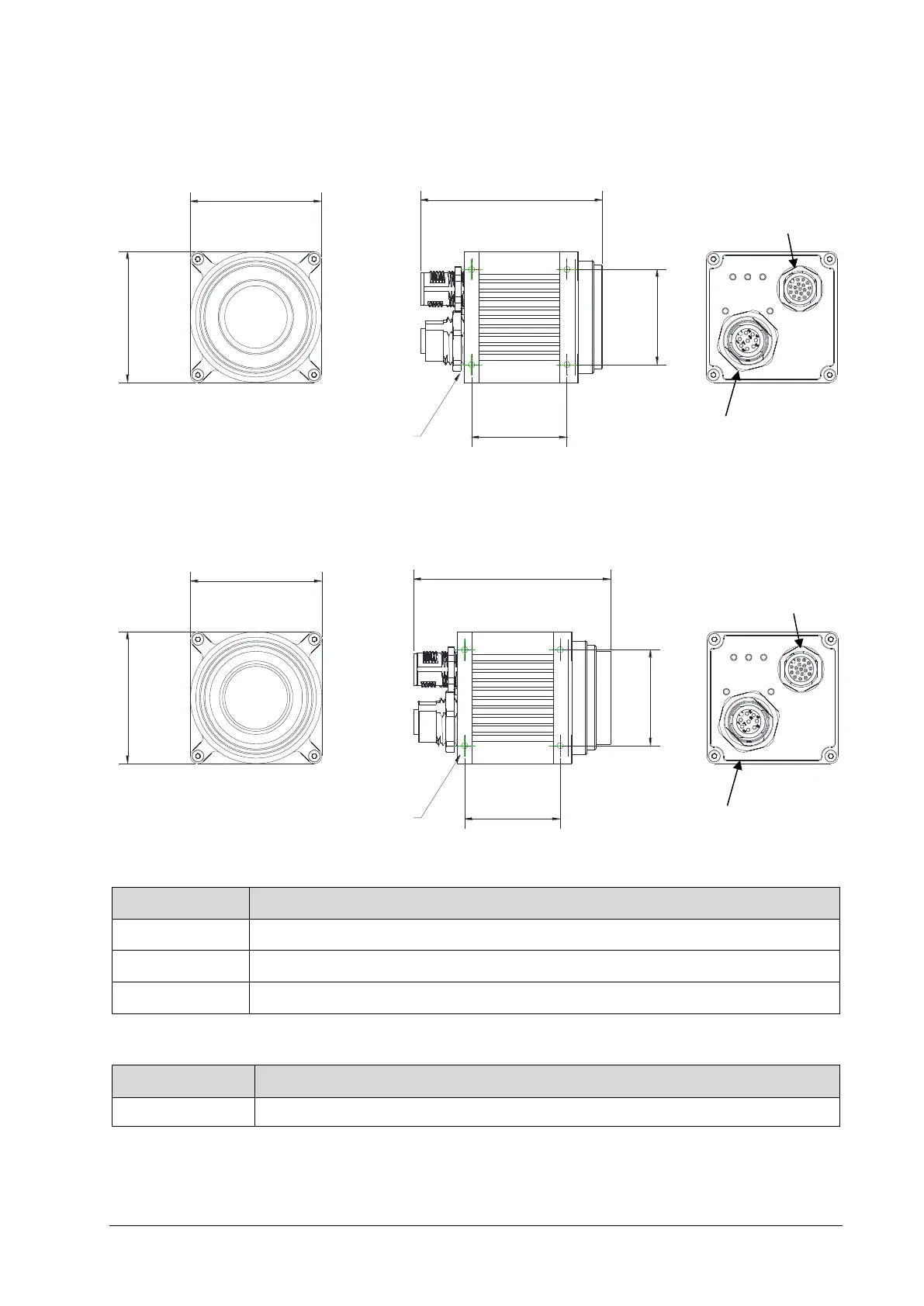

Mechanical Drawings
C2-640-GigE with CS-Mount (Standard)
C2-2040-GigE with C-Mount (Standard)
Part Number for C2 Series
Part Number #
Product Name
202 201 005
C2-2040-GigE, lens mount C-Mount
202 201 006
C2-2040HS-GigE, lens mount C-Mount
202 201 007
C2-640-GigE, lens mount CS-Mount
Part Number for Scheimpflug Adapter Option
Part Number #
Product Name
202 186 007
C2 Scheimpflug-Adapter 10° with C-Mount, for C2-640GigE/C2-2040(HS)-GigE
44,00
44,00
32,00
32,00
61,00
4x M2.5 4.5mm deep
Hole pattern identical on all 4 sides
44,00
44,00
66,00
32,00
32,00
4x M2.5 4.5mm deep
Hole pattern identical on all 4 sides
GigE Interface
8pin A-coded M12 female connector
Power & I/O Interface
17pin M12 male connector
Power & I/O Interface
17pin M12 male connector
GigE Interface
8pin A-coded M12 female connector
