Automation Technology C2-2040-GigE - Description of Leds

58

C2 Series User Manual Rev. 1.9

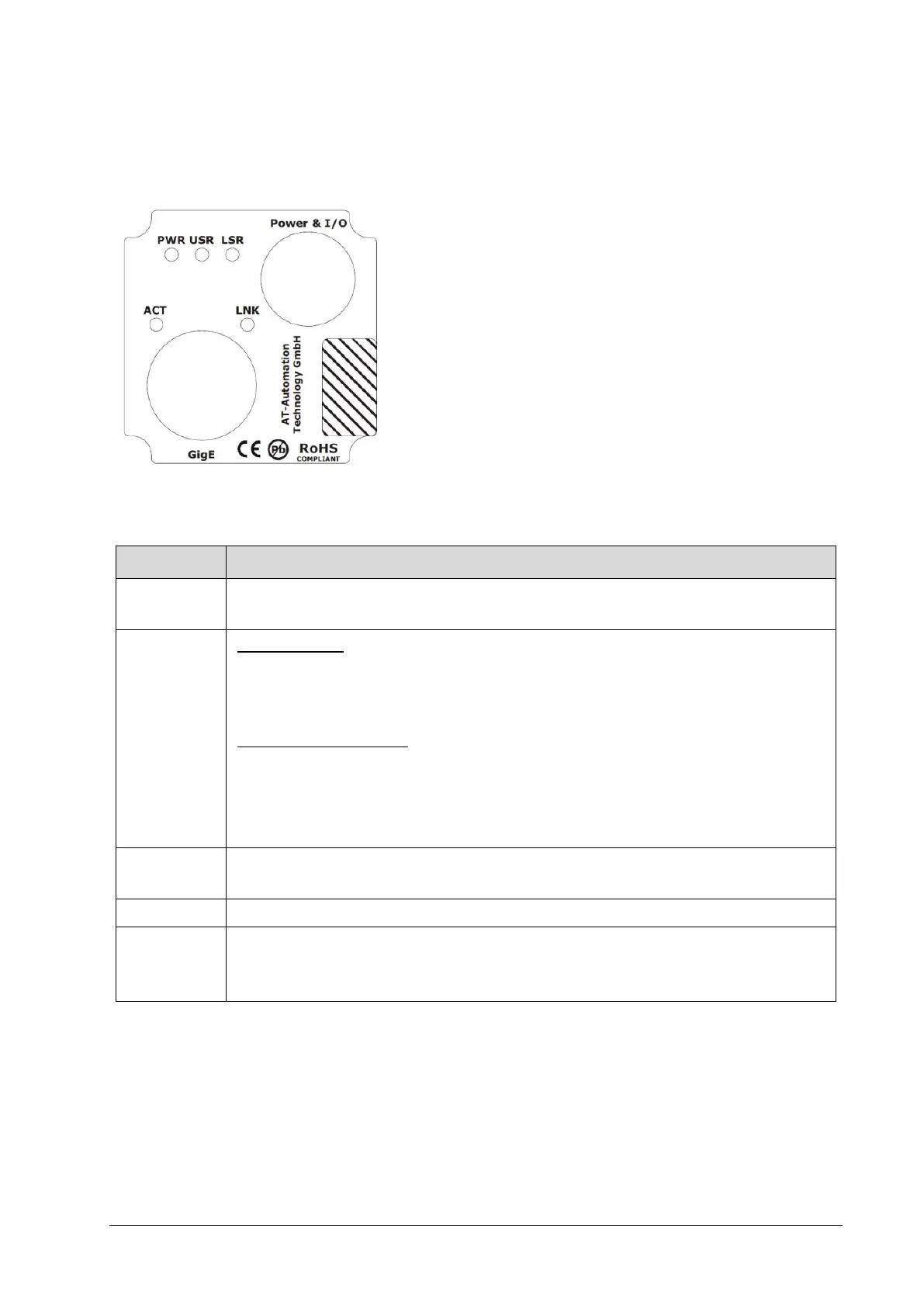

Description of LEDs
LED
Description
1 (PWR)
Green On= Power On and camera start up completed
Off = Power Off or camera start up failed
2 (USR)
After Power On:
Off = no network cable connected
Green On = network connected
After Network connected:
Green On = CCP status connected
Off = CCP status disconnected
Red On= no network found, no network cable connected
3 (LSR)
Red On = Laser is On
Off = Laser is Off
4 (ACT)
Green blink = Indication of network activity
5 (LNK)
Green On = Linkspeed 1 Gbit
Amber On = Linkspeed 100 Mbit
Off = Linkspeed 10 Mbit or wait for end of autonegotiation
