C2 Series User Manual Rev. 1.9



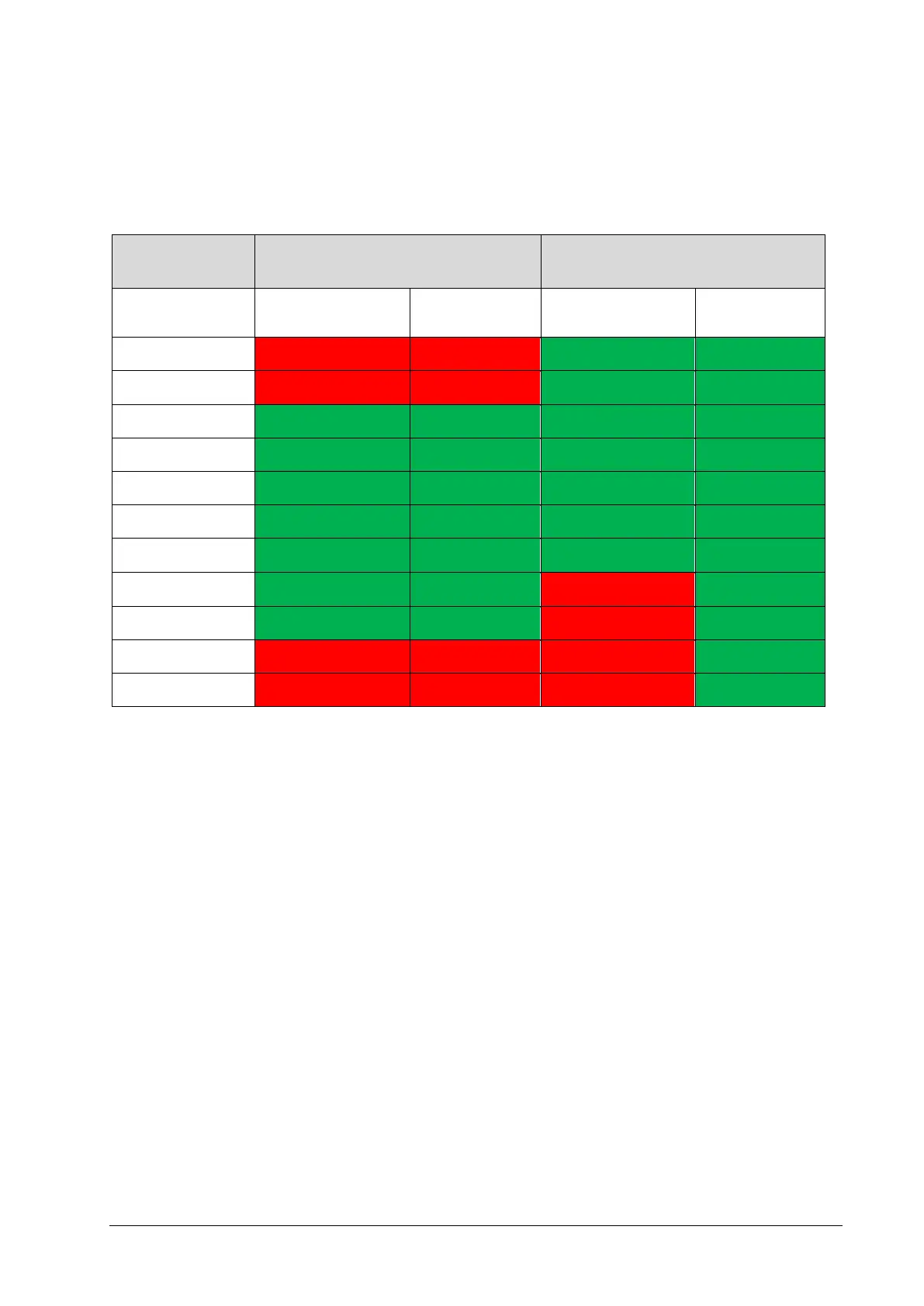

C2-I/O Panel and C2 camera (Compatibility Overview)

Availability of I/O and Laser Control Signals depending on the revision of C2-I/O-Panel and C2

camera.

C2-I/O Panel Rev.< 2.0

C2-I/O Panel Rev.≥ 2.0

C2-I/O-Panel

Signal

Camera Device

Version 3.0.0/3.0.1

Camera Device

Version ≥ 3.0.2

Camera Device

Version 3.0.0/3.0.1

Camera Device

Version ≥ 3.0.2

HV-OUT1

Not available

Available

HV-OUT2

Not available

Available

OUT1

Available

OUT2

Available

IN1

Available

IN2

Available

LASER_DO

Available

LASER_AO

Available

Not available

Available

LASER_AI

Available

Not available

Available

SDA (I

Not available

Available

SCL (I

Not available

Available
