Automation Technology C2-2040-GigE User Manual

C2 Series User Manual Rev. 1.9

53
to clamp J400/2 (PWR_IO) and J400/1(GND_IO) or the main voltage supply of the camera can
be used by setting the jumpers “GND->GND_IO” and “VCC->VCC_IO”.
 The jumper “GND->SHIELD” may be set in order to let the camera ground be connected to
the shield.

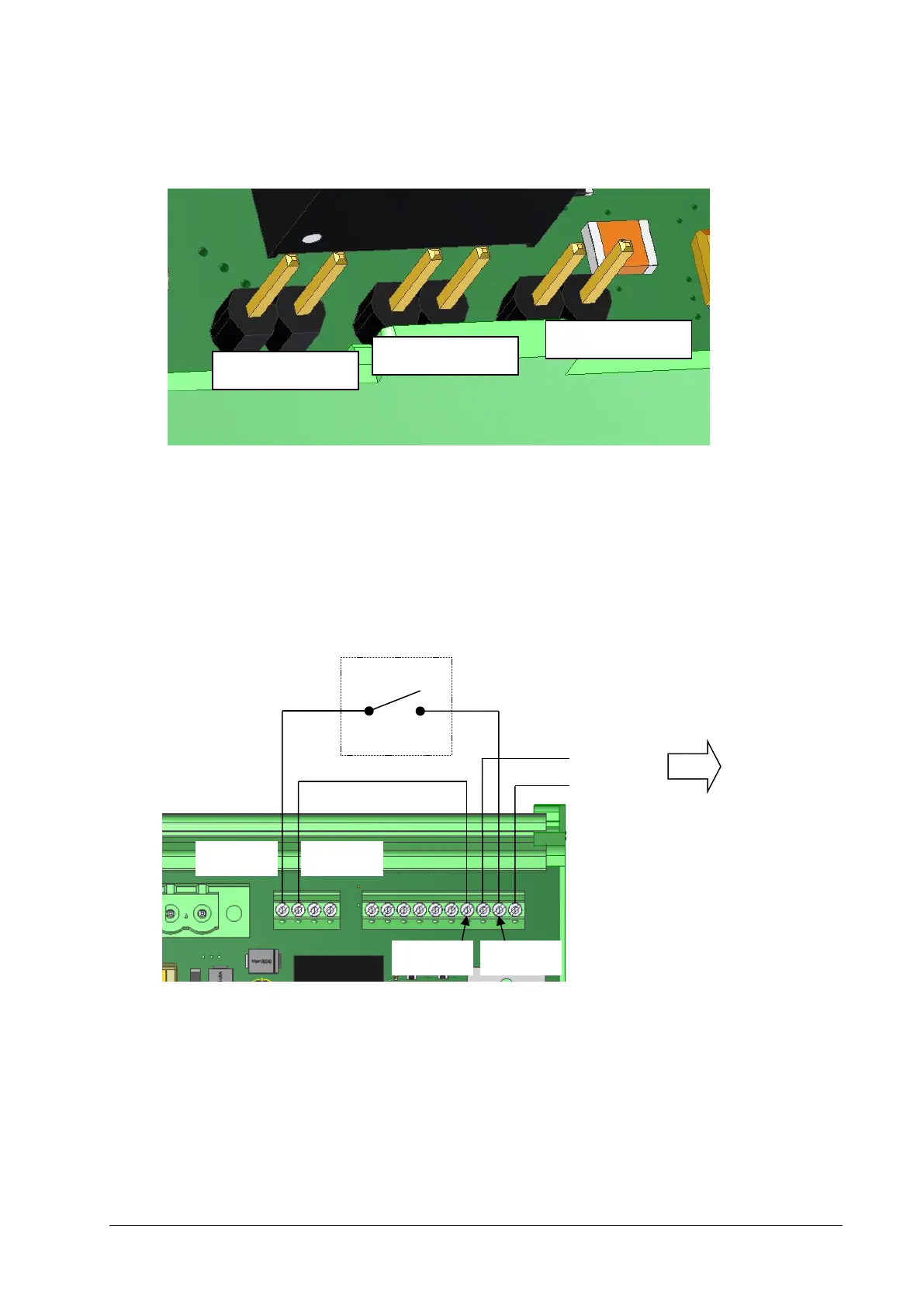

Use of Power Supply Chain with Interlock Function to supply a Laser
 Suitable for lasers capable of operating with camera supply voltage
GND->GND_IO
VCC->VCC_IO
GND->SHIELD
Interlock
J201/4
SUPPLY VCC
J201/3
SUPPLY GND
J500/1
VCC_LASER
J500/3
GND_LASER
J500/2
VCC_LASER
J500/4
GND_LASER
Connect to
power supply
input of laser
