DirectLOGIC MODBUS Ladder Programming (cont.)

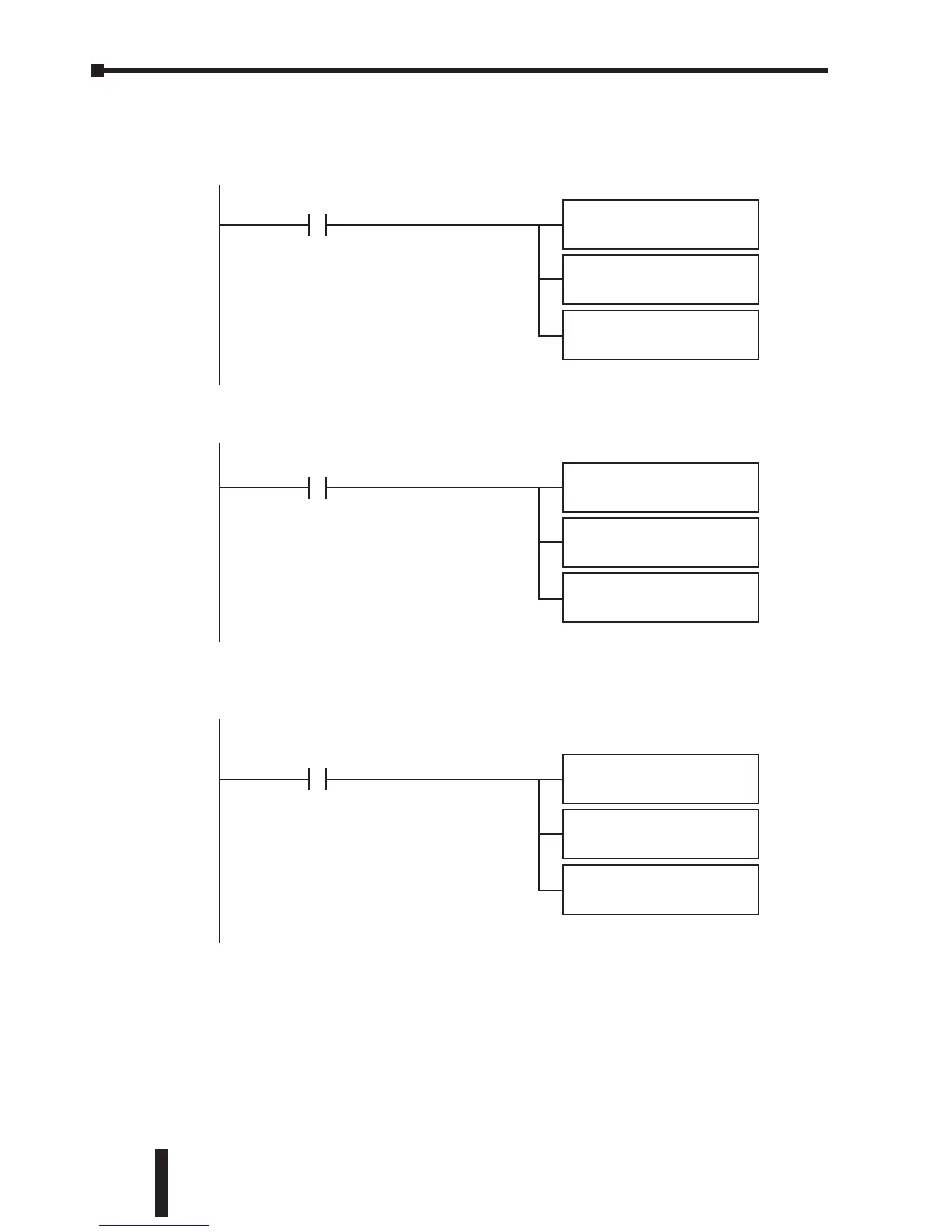

Rung 13 loads a decimal value of 150 into drive parameter 9-26. The BIN instruction
converts BCD/HEX to decimal. This tells the drive to run at 15.0Hz.
Rung 14 loads a decimal value of 300 into drive parameter 9-26. The BIN instruction
converts BCD/HEX to decimal. This tells the drive to run at 30.0Hz.
Rung 15 loads a decimal value of 450 into drive parameter 9-26. The BIN instruction
converts BCD/HEX to decimal. This tells the drive to run at 45.0Hz.
Chapter 5: GS1 MODBUS Communications
GS1 Series AC Drive User Manual
5–14
X1
K150
LD
BIN
V2017
OUT
13
X2
K300
LD
BIN
V2017
OUT
14
(Cont. next page)
X3
K450
LD
BIN
V2017
OUT
15
