Circuit Protection Devices
Circuit protection devices are essential to prevent costly damage to your AC Drive
application equipment. Fuse kits are available from Automation Direct for the GS1
Series AC Drives, and their specifications are found below. Specifications for other
circuit protection devices used in conjunction with the GS1 AC Drives can be
found on the next few pages.
Fuse Kits
The following fuse kits consist of one fuse block and fuses sized to match each
GS1 Series AC Drive. Replacement fuses are also available, and their part
numbers are listed in the table below.

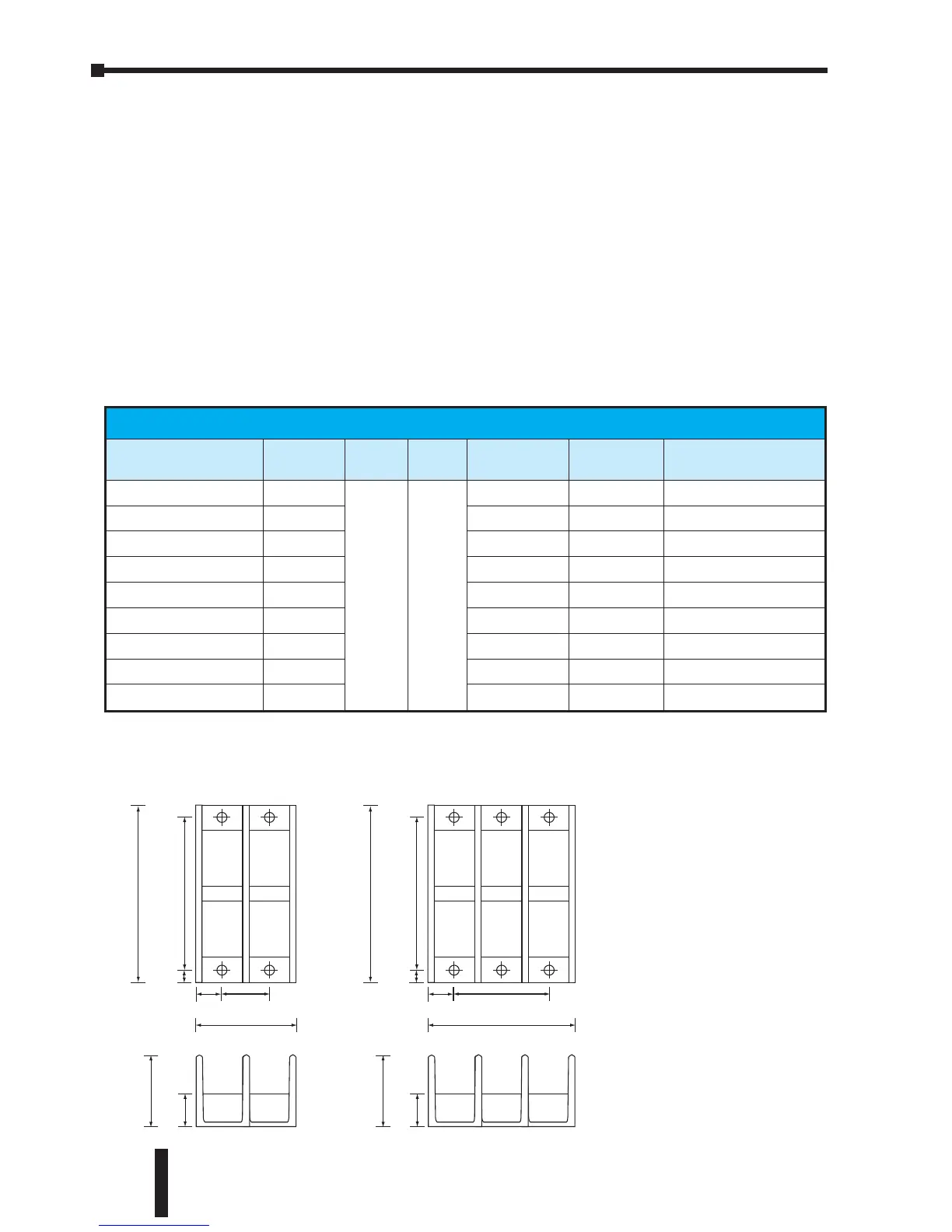

Fuse Kit Dimensions
Fuse Kit Specifications
Part Number
Fuse
Block
Wire
Range
Fuse
Type
Dimensions
Fuse
Rating
Replacement Fuses
GS-10P2-FKIT-1PH
Two-pole
Al/Cu
#2-14
A3T
Figure 1 300V@20A
GS-10P2-FUSE-1PH
GS-10P5-FKIT-1PH
Two-pole Figure 1 300V@30A
GS-10P5-FUSE-1PH
GS-20P2-FKIT-1PH
Two-pole Figure 1 300V@15A
GS-20P2-FUSE-1PH
GS-20P2-FKIT-3PH
Three-pole Figure 2 300V@10A
GS-20P2-FUSE-3PH
GS-20P5-FKIT-1PH
Two-pole Figure 1 300V@20A
GS-20P5-FUSE-1PH
GS-20P5-FKIT-3PH
Three-pole Figure 2 300V@10A
GS-20P5-FUSE-3PH
GS-21P0-FKIT-1PH
Two-pole Figure 1 300V@30A
GS-21P0-FUSE-1PH
GS-21P0-FKIT-3PH
Three-pole Figure 2 300V@20A
GS-21P0-FUSE-3PH
GS-22P0-FKIT-3PH
Three-pole Figure 2 300V@25A
GS-22P0-FUSE-3PH
1.750"
2.73"
.49"
3.65"
3.21"
.22"
1.47"
.60"
Figure 2
.88"
1.85"
.49"
3.65"
3.21"
.22"
1.47"
.60"
Figure 1
*Units = inches
