Multi-Function Input (DI3) Mem Addr 0302H(40771)
Default Setting: 0
Multi-Function Input (DI4) Mem Addr 0303H(40772)
Settings for 3-02 and 3-03 Default Setting: 3
Settings 0 External Fault (N.O.)
1 External Fault (N.C.)
2 External Reset
3 Multi-Speed Bit 1
4 Multi-Speed Bit 2
9Jog
10 External Base Block (N.O.)
11 External Base Block (N.C.)
12 Second Accel/Decel Time
13 Speed Hold
14 Increase Speed
15 Decrease Speed
16 Reset Speed to Zero
99 Input Disable
3-03
3-02
GS1 Series AC Drive User Manual
4–21
Chapter 4: AC Drive Parameters

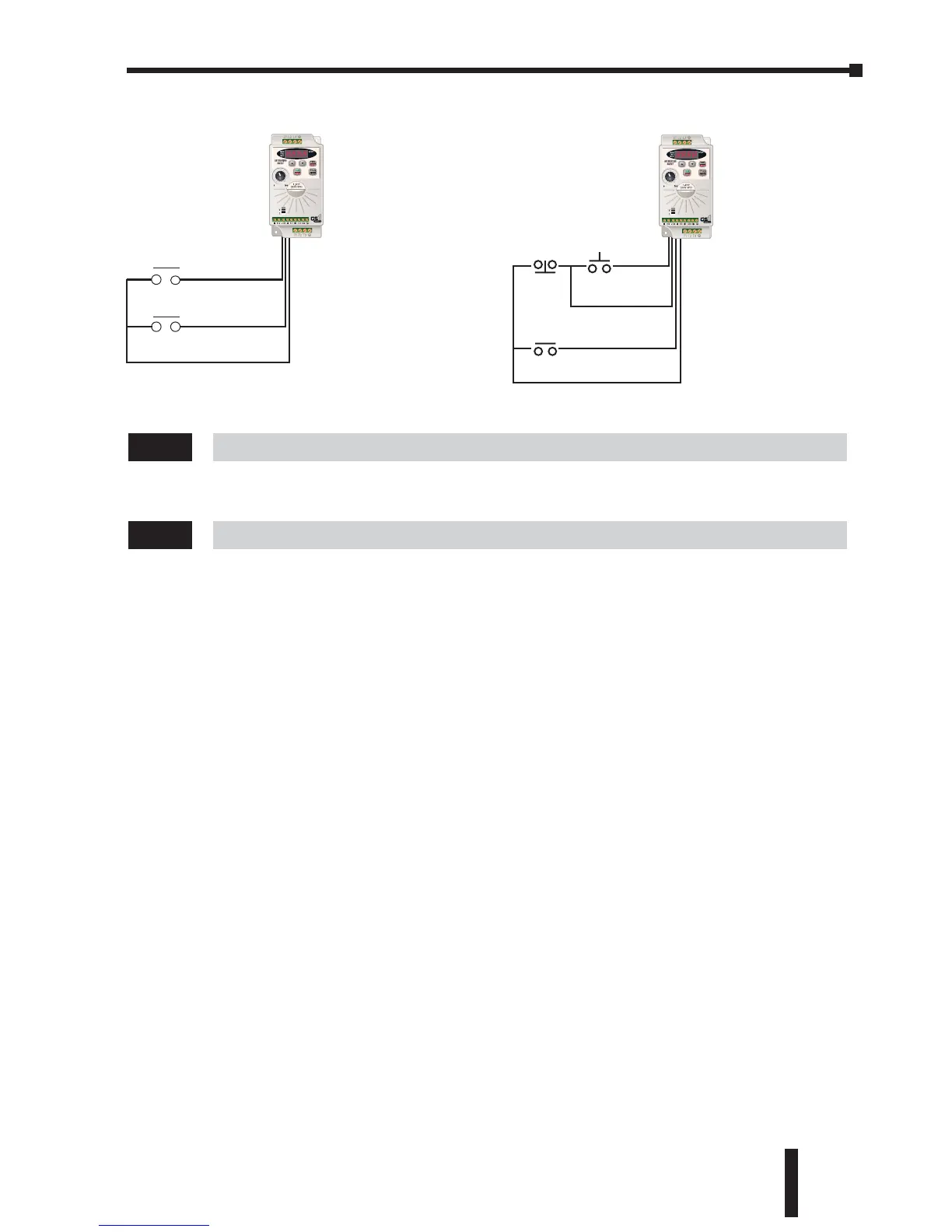

DI1- RUN/STOP select
"Open" : Stop
"Close" : Run
DI2- FWD/REV select
"Open" : FWD
"Close" : REV
FWD/REV
RUN/STOP
CM
DI2
DI1
3-01: Setting 1
DI1- RUN command
Latching input (N.O.)
Runs when closed
DI3- STOP command
Latching input (N.C.)
Stops when open
DI2
DI3
DI1
CM
STOP RUN
FWD/REV
DI2- FWD/REV select
"Open" : FWD
"Close" : REV
3-01: Setting 2
}
4-00 must be set to 1.
