Autonics krn100 series Manual

KRN100
Series
A-14

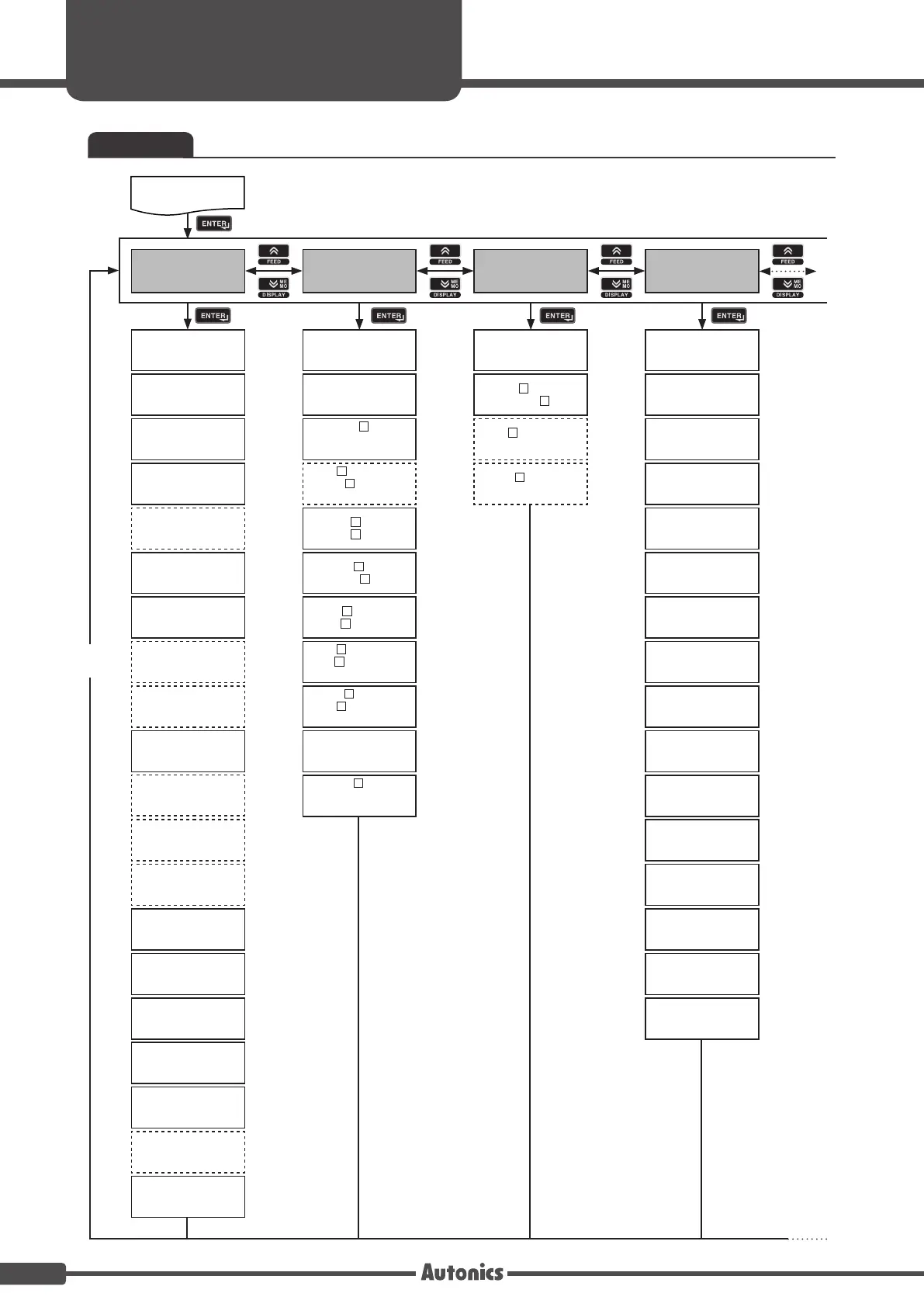

Parameters
Select DI Card
(digital input card
select )
DI- Type
(digital input select)
DI- Reset No
(reset alarm number)
DI- Status
(operation status)
ALARM SETUP
(alarm setting)
Select UI Channel
(universal input
select)
Alarm Set Copy
(copy alarm
parameter)
Alarm type
(alarm operation
mode)
Alarm Ref Channel
(alarm reference
channel)
Alarm
Option
(alarm
option)
Alarm Value
(alarm SV)
Alarm Hysteresis
(alarm hysteresis)
Alarm ON/OFF Delay
(alarm output ON/OFF
delay time)
Alarm Alarm No
(alarm output alarm
number)
Selection Alarm Card
(Alarm output card
select)
Alarm- Status
(relay and transistor
output method
COMMUNICATION
SETUP
(com. setting)
Modbus Address
(com. address)
RS485 Port
(RS485 com. use)
Baud Rate
(com. speed)
Parity Bit
(com. parity bit)
Stop Bit
(com. stop bit)
Termination Set
(terminating
resistance)
Response Wait Time
(com. response
waiting time)
Protocol
(com. protocol)
RS485 Com/Write
(RS485 com. write)
Ethernet Port
(Ethernet com. use)
IP Address
(IP address)
Subnet Mask
(subnet mask)
Default Gateway
(default gateway)
Ethernet Com Write
(Ethernet com. write)
USB Device Port
(USB com. use )
USB Com Write
(USB com. write)
RUN mode
3 sec.
INPUT SETUP
(input setting)
Select UI Card
(universal input card
select )
Input Set Copy
(input parameter
copy)
LCD/Paper Record
(display and record
measuring value)
Pen Color
(record color)
Record Zone
(record zone)
Tag Name
(channel name)
Input Type
(input specications)
Range/Scale Point
(decimal point)
Display/Temp Unit
(display/temp. unit)
High/Low Range
& Graph Scale
(high/low input value
and graph scale)
Low Scale/
High Scale
(high/low scale value)
Special Func
(special function)
Two Unit
(display vacuum,
static pressure)
Ref Channel
(reference channel)
Input Bias
(error correction)
Span
(gradient adjustment)
Record Method
(data storage
method)
Filter Type
(input digital lter)
Filter Counter
(number of digital
lters)
Burnout Action
(display setting for
break)
OK,
Cancel
※
•Dot•parameters•may•or•may•not•appear,•depending•on•the•other•parameter•setting.
DIGITAL INPUT
SETUP
(digital input setting)

Autonics krn100 series Specifications

General

Brand	Autonics
Model	krn100 series
Category	Measuring Instruments
Language	English
