Autonics krn100 series Manual

100mm Hybrid Recorder
A-5
A. Recorder
B.•Indicator
C.•Converter
D.•Controller
E.•Thyristor•
•••••unit
F.•Pressure•
••••transmitter
G.•Temp.•
•••••transmitter
H.•Accessories
KRN100
KRN50
※
•This•rear•side•dimension•is•with•
installed•I/O•cards•to•every•slot.
168
18.6
137
※
•1.•For•more•information•of•universal•input,•please•refer•to•「I/O•card」of•the•A-6•page.
※
•2.•When•using•this•unit•in•high•humidity,•it•may•cause•paper•jam.•Please•do•not•use•this•unit•in•high•humidity.•
※
•Environment•resistance•is•rated•at•no•freezing•or•condensation.
137
● Panel cut-out
※
•Use•a•steel•plate•which•is•2•to•8mm•thickness.
138
+1.0•
•• 0
138
+1.0• •• 0
Min.175
Min.175•
(unit:•mm)

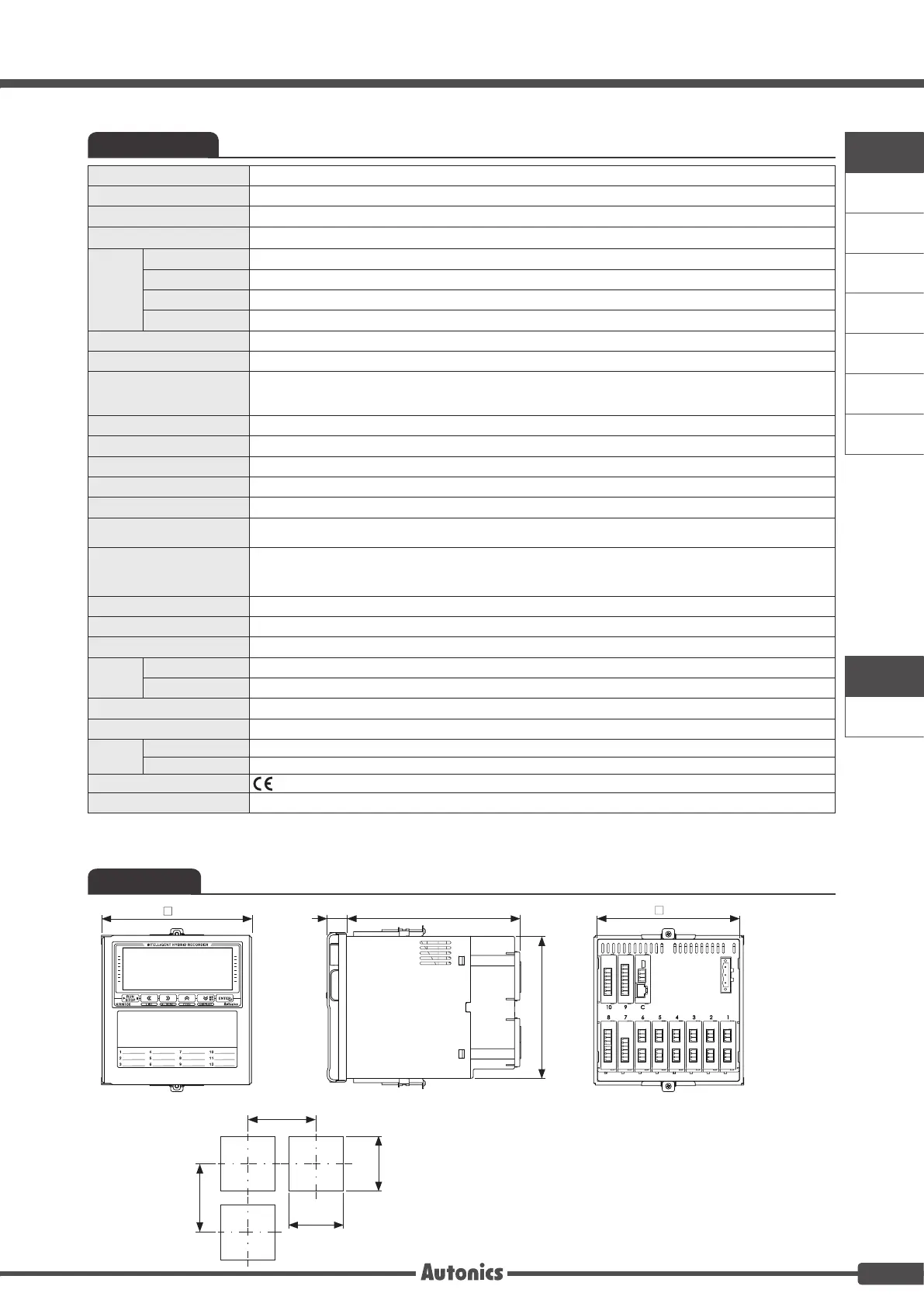

Specications
Dimensions
144
Series
KRN100
Power•voltage 100-240VAC•50/60Hz
Allowable•voltage•range 85•to•110%•of•rated•voltage
Power•consumption Max.•55VA
Screen
LCD•type STN•Graphic•LCD
Resolution 320×120Pixel
Adjusting•brightness 4-level(OFF/Min/Standard/Max)
Backlight White•LED,•2-level(Temp/Always)
Input•channels 2•/•4•/•6•/•8•/•10•/•12-channel(2-channel/card)-Expandable
Universal•input
※1
Temperature•sensor(RTD,•thermocouple),•analog
Sampling•cycle
1•to•4-channel•:•25ms/125ms/250ms,•5•to•12-channel•:•125ms/250ms
(inner•sampling•cycle•is•operation•unit•time•for•average•movement•lter•and•alarm•output•function.)
※Max.•sampling•cycle•for•TC-R,•U,•S,•T•sensor•is•50ms.
Recording•period•in•graph•mode 10,•20,•40,•60,•120,•240mm/H
Recording•speed•accuracy F.S.•±0.5%
Storage•cycle 1•to•3600sec.•(storage•interval•time•to•inner•log•le•is•1•sec.)•
Inner•memory 512MB
USB•memory User•purchased,•recognizes•max.•32GB,•enables•to•use•cable•up•to•1.5m
Dielectric•voltage
250VAC•50/60Hz•for•1min.•(power•terminal•and•case)•
※•Excepts•USB•Device•and•Ethernet
Vibration•strength•
(for•convey•and•storage)•and•
operating•vibration•
Vibration•strength•:•10•to•60Hz•4.9m/s
2
•(each•of•X,•Y,•Z•axes•for•1•hour)•
Operating•vibration•:•10•to•60Hz•1m/s
2
•(each•of•X,•Y,•Z•axes•for•10•min.)•
Insulated•resistance Min.•20MΩ(at•500VDC•megger)
Noise ±2kV•the•square•wave•noise•(pulse•width•1㎲)•by•the•noise•simulator••
Time•accuracy Within•±2min./year•(enables•to•use•up•to•2100•year)
Mech-
anism
Ink•cartridge Enables•to•normal•print•with•going•and•returning•printing•max.•5•times•within•7•days•after•opening•the•unit•
Ink•dry•time Max.•15•minutes
Protection IP40(for•front•panel)
Recording•paper 113mm×9m
Environ-
ment
Ambient•temperature 0•to•50℃,•storage•:•-20•to•60℃•(without•ink•cartridge)
Ambient•humidity 35•to•85%•RH,•storage•:•35•to•85%•RH
Approval
•
Unit•weight Approx.•1.7•to•2.0kg•
