Autonics TM4-N2RB - Power Supply Connection; Communication Line Wiring

4 Connections and Insulation Block Diagram
34 © Copyright Reserved Autonics Co., Ltd.

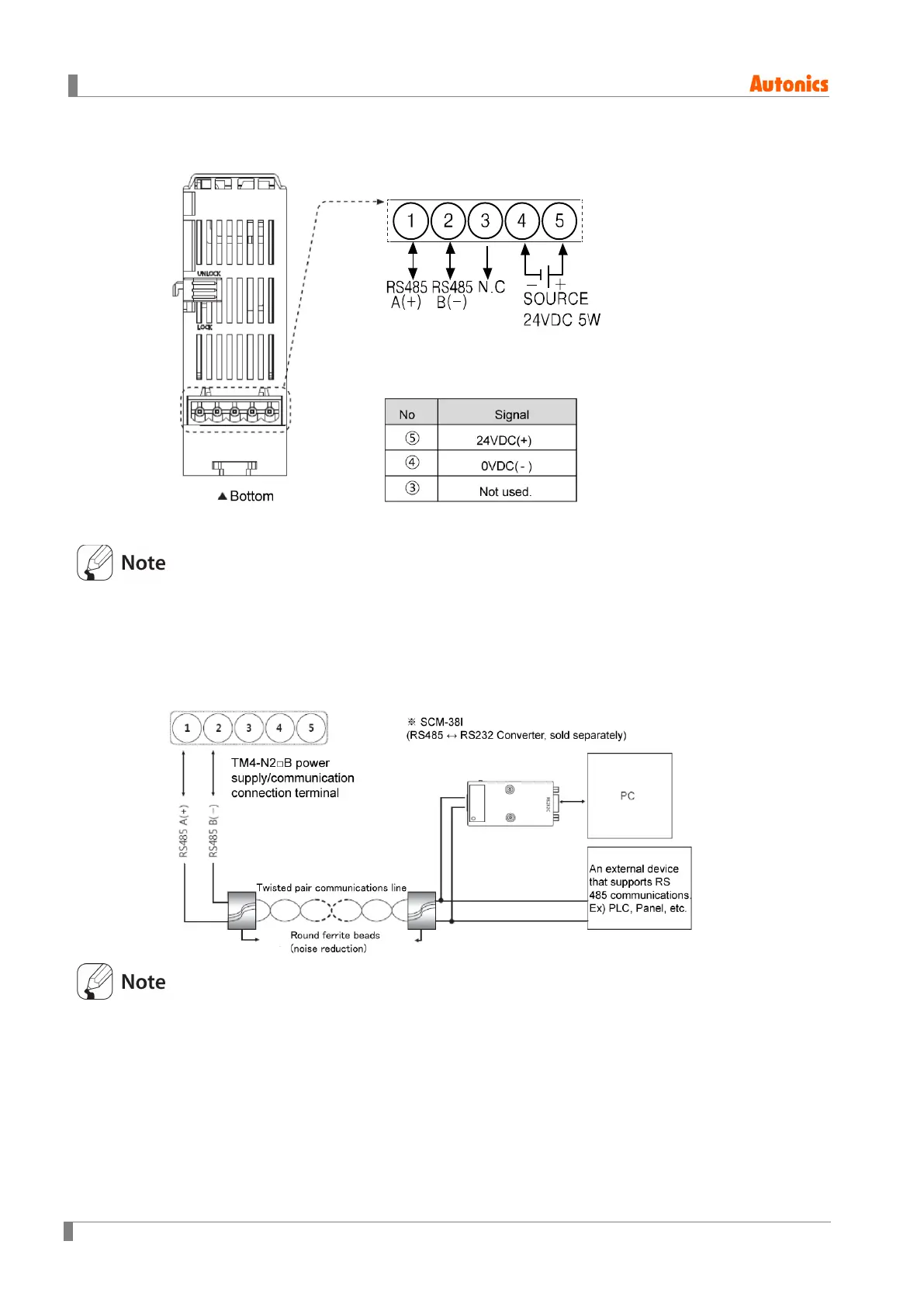

4.3.2 Power supply connection
 Use power line with AWG26 to 12.
 Calculate the total power consumption first and then connect a power supply system of
appropriate capacity.
4.3.3 Communication line wiring
 Do not tie the communications line together with the AC power line.
 Use twisted pair cables for the communications line only.
 Do not allow the communication line to exceed 800m in length.
 For further details, please refer to ‘6.5 Communications’.
