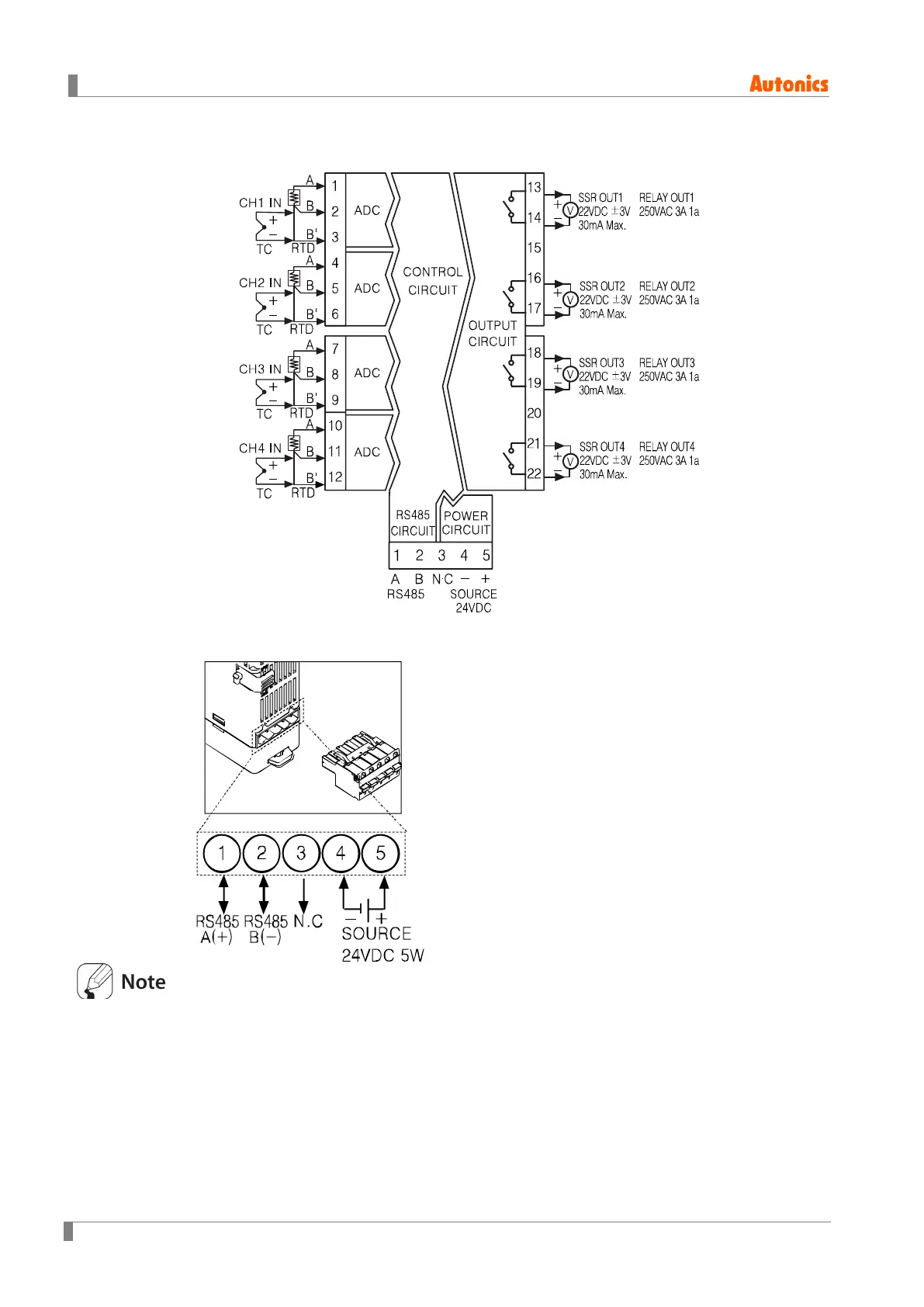

4.2 TM4 Series
 Power/Comm. connection terminal [Only for basic module: TM□-□□□B]
 Pay attention to the connection direction when wiring the power supply/communications
connection terminal.
 It is recommended to use lines with AWG28 to 14 when connecting the sensor or
compensation wire.
 It is recommended to use lines thicker than AWG24 for SSR drive output.
 It is recommended to use lines with AWG26 to 12 for relay output.
