Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 49

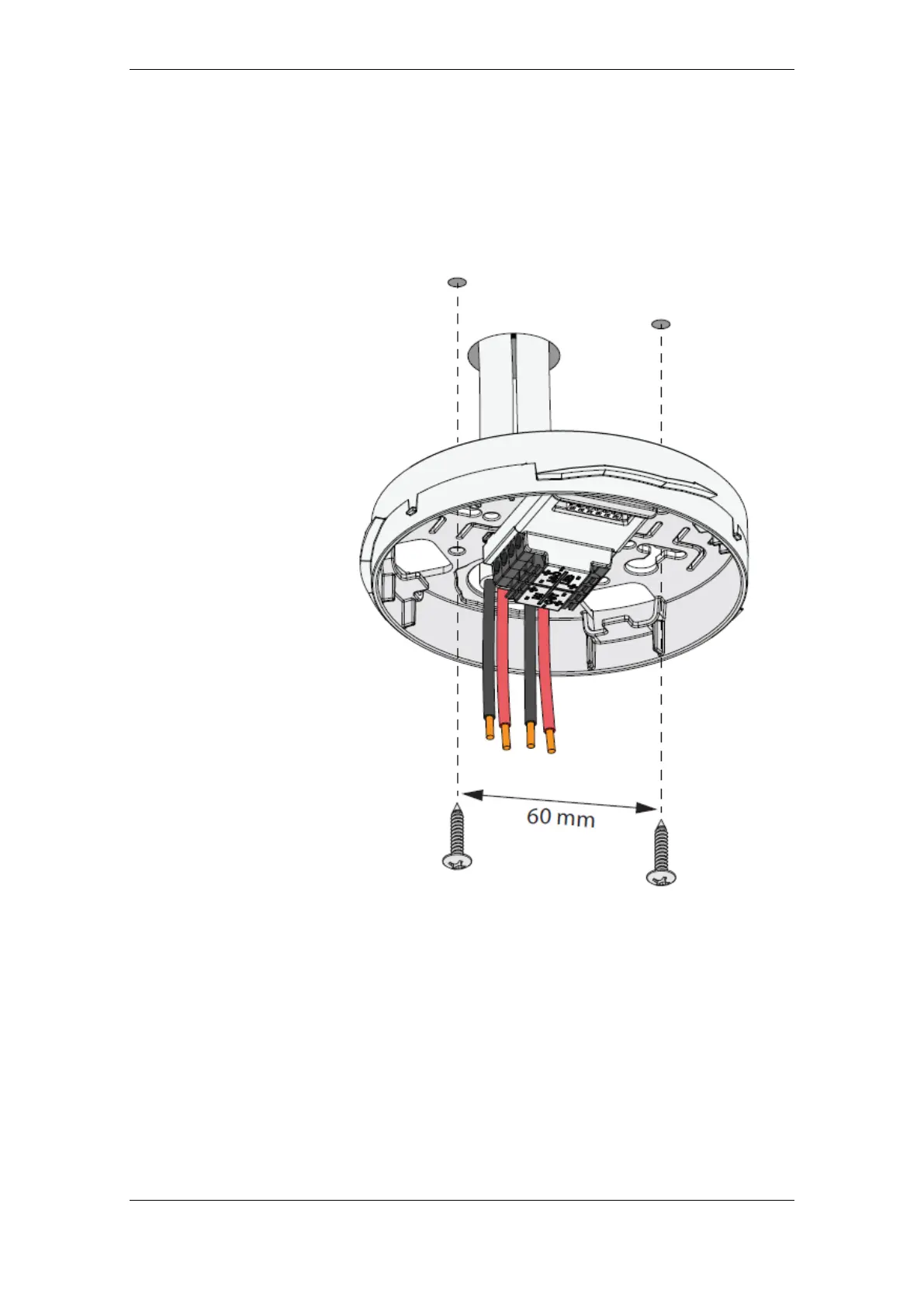

9.2.3 Mounting for Concealed Conduit Wiring
 Mark and drill the necessary holes as decribed in chapter 9.2.2
 Feed the cables through the Ø25 mm cable entry as shown
 Mount the protector base to the ceiling by fastening the screws

Autronica 116-V-100/M Specifications

General

Brand	Autronica
Model	116-V-100/M
Category	Security Sensors
Language	English
