Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 52
9.2.6 Mounting for Surface-mounted Wiring
 Locate the knockouts that are sized to fit the desired cable
dimension
 Use a plier to gently remove the knockouts for the chosen cable
entries
 Mark and drill the necessary holes as decribed in chapter 9.2.2
 Mount the protector base to the ceiling by fastening the screws

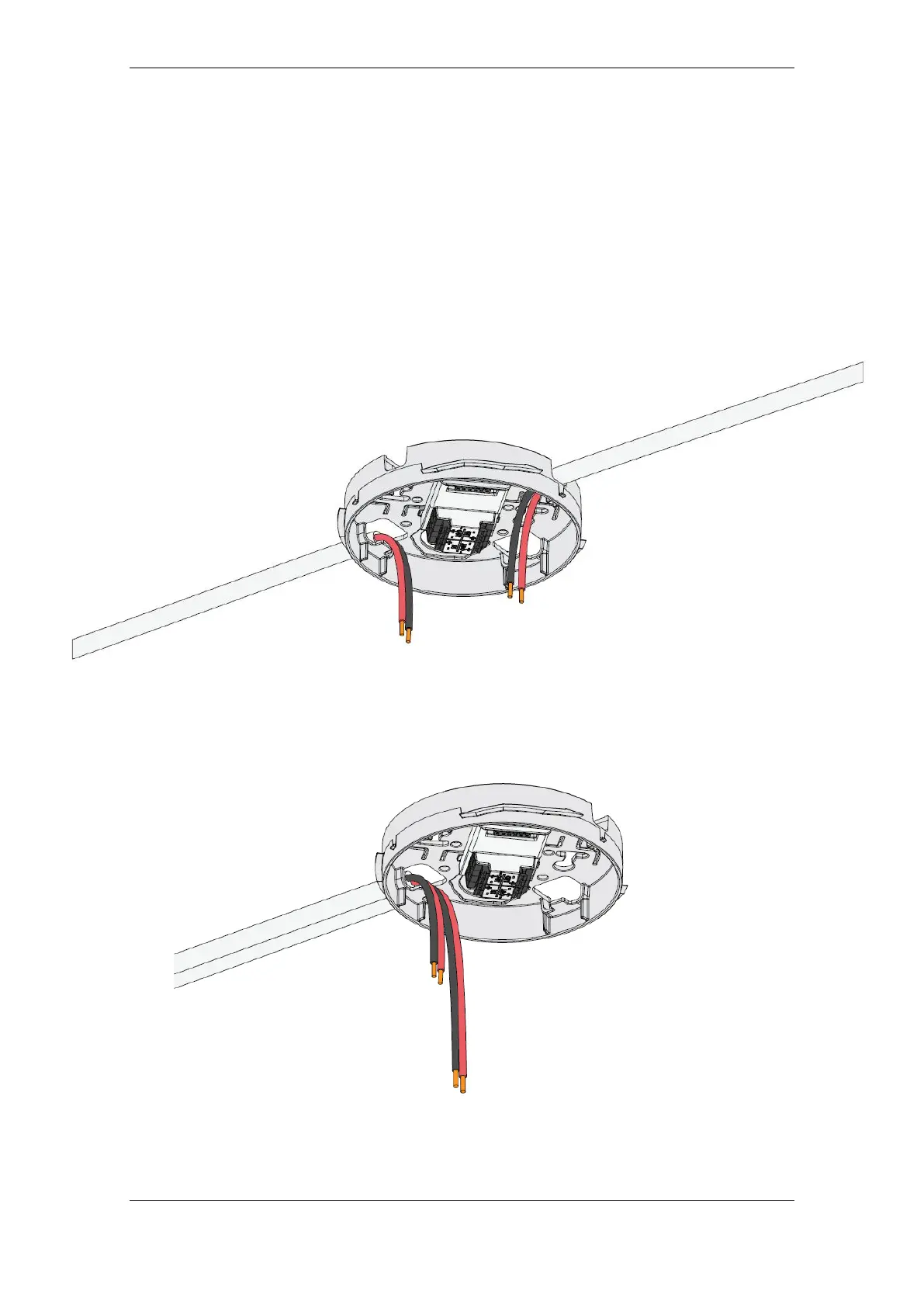

 Feed the cables through the cable entries as shown (the
illustrations show two different cable layout alternatives)
