Autronica 116-V-100/M User Manual

Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 51

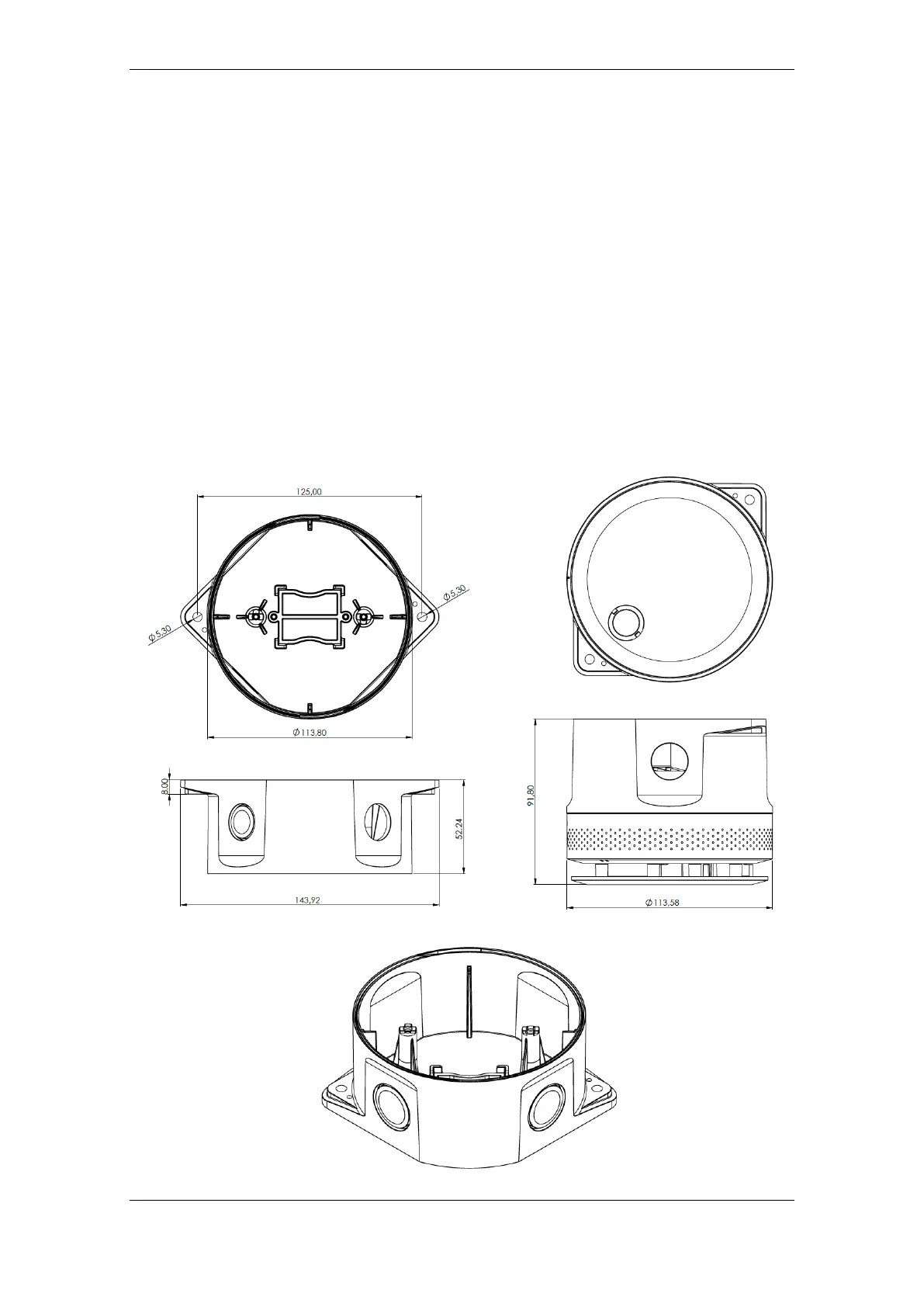

9.2.5 Mounting onto a Conduit Box
The conduit box (part number 116-100001180 and 116-100001181)
has a total of six 20 or 25 mm knockouts; 2 at the bottom and 4
around the sides located at 90, 180, 270 and 360 degrees. A click-
type cable gland is included.
The use of cable glands provides an ingress protection level of IP55.
 Mark and drill the necessary holes for the conduit box
 Use a plier to gently remove the knockouts for the chosen cable
entries
 Mount the conduit box to the ceiling by fastening the screws
 Feed the cables through the chosen cable entries
 Mount the protector base onto the conduit box by fastening the
screws
