9.6 Locking/Unlocking the Protector to the Base

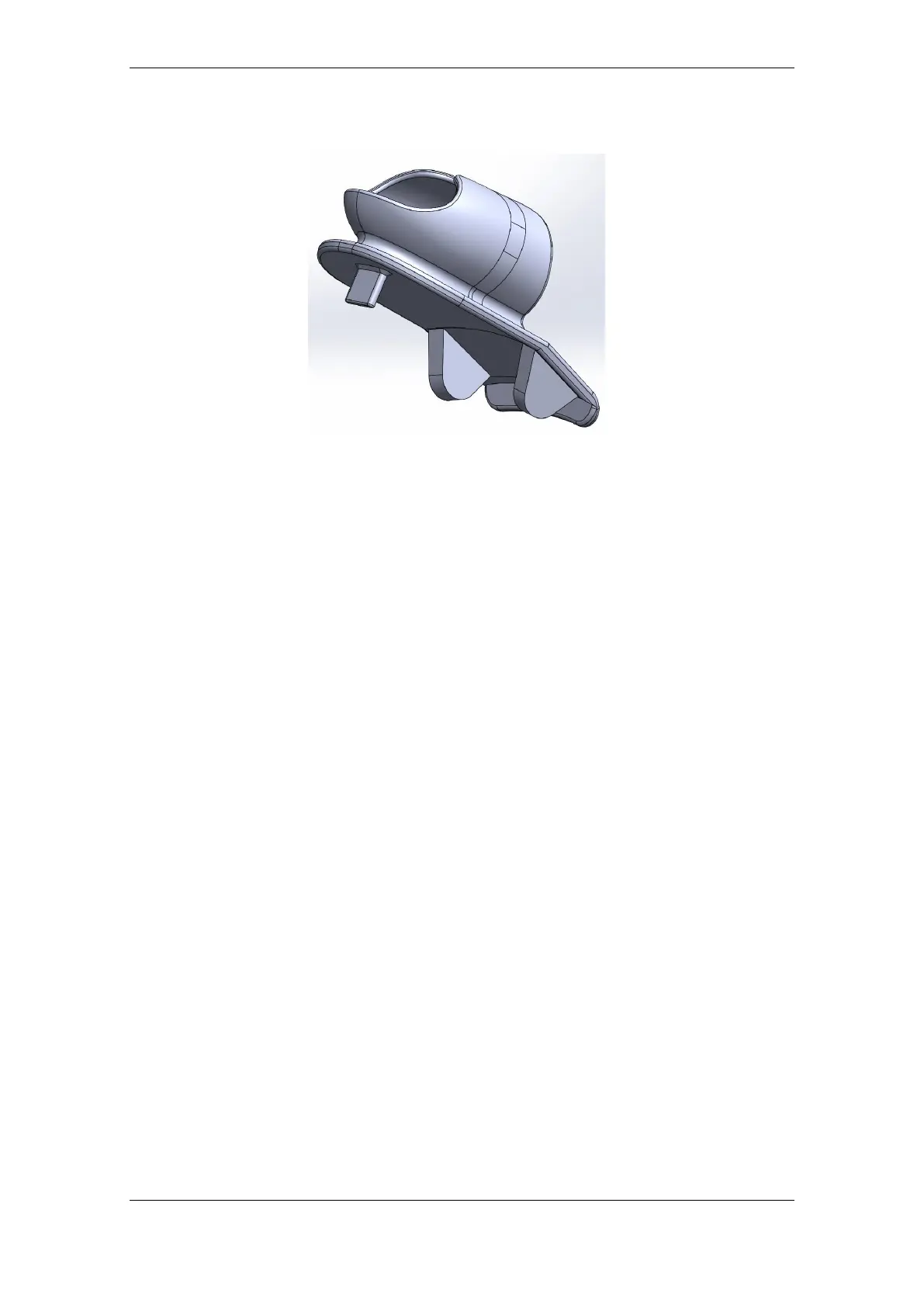

To avoid unintentional removal of protectors, a special locking tool
shown above can be used to lock the protector to the base, which is a
one-hand operation. Alternatively, a small screwdreiver may be used.
 Grab the rotatable bayonet ring, insert and press the locking tool
into the small slot, then turn the bayonet ring clockwise to lock
the protector to the base
 Make sure that the alignment marks are aligned as shown in the
illustration in chapter 9.4 (locked position)
The locking tool must also be used to unlock the protector from the
base. In this case, the locking tool is inserted into the small slot, and
the bayonet ring is turned counter-clockwise until it is unlocked.
