Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 59

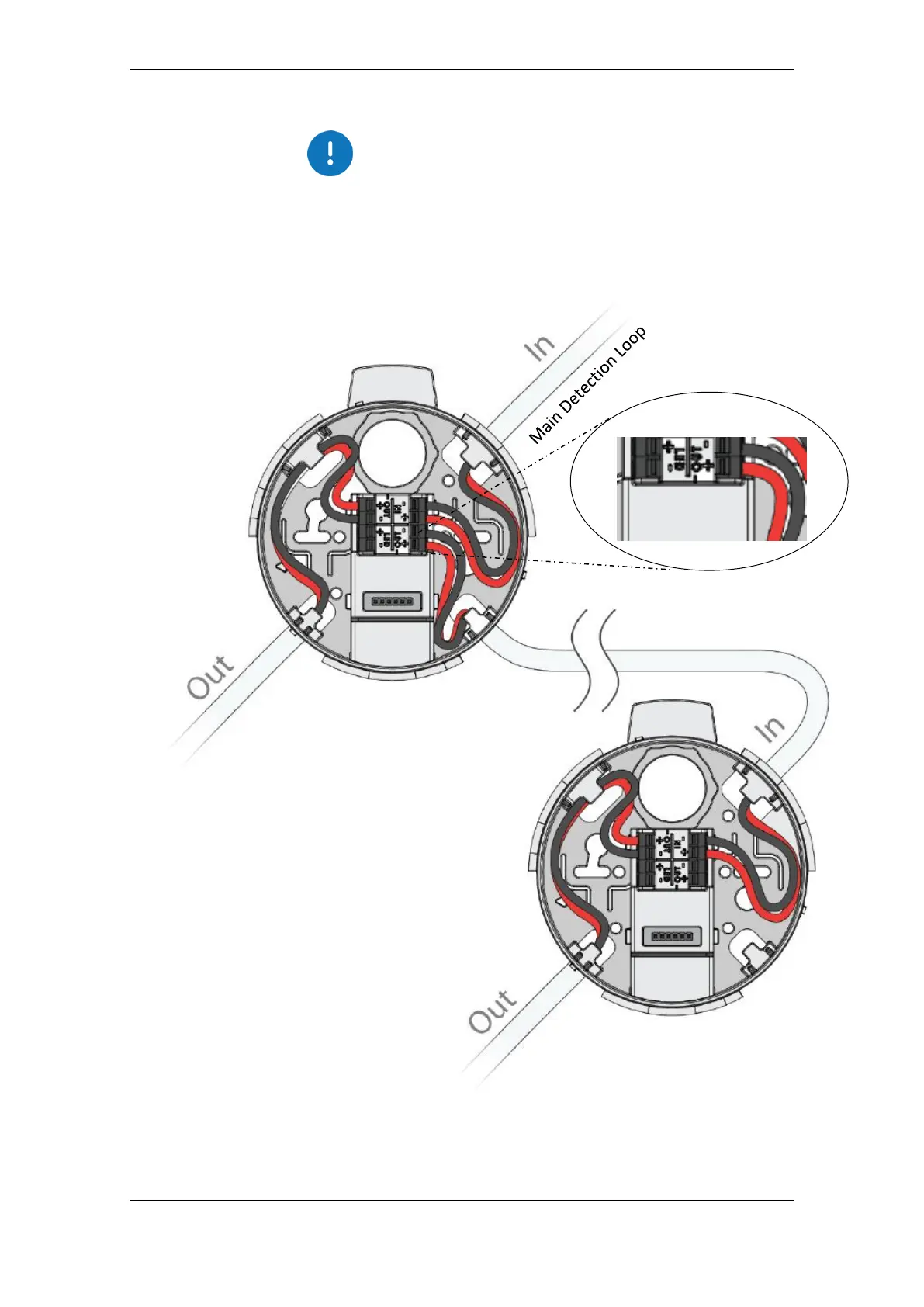

Note that the outputs on the connector can either be used (optional)
for the main loop or a branch-off. Therefore, always mark the main
loop cables and branch-off cables accordingly to ensure correct
connections.
