In the Event of a Fire Warning
Operator's Handbook, AutroSafe Interactive Fire Alarm System, Release 3, ASAFE-FO/FE Rev. E, 021105,
Autronica Fire and Security AS
Page 41

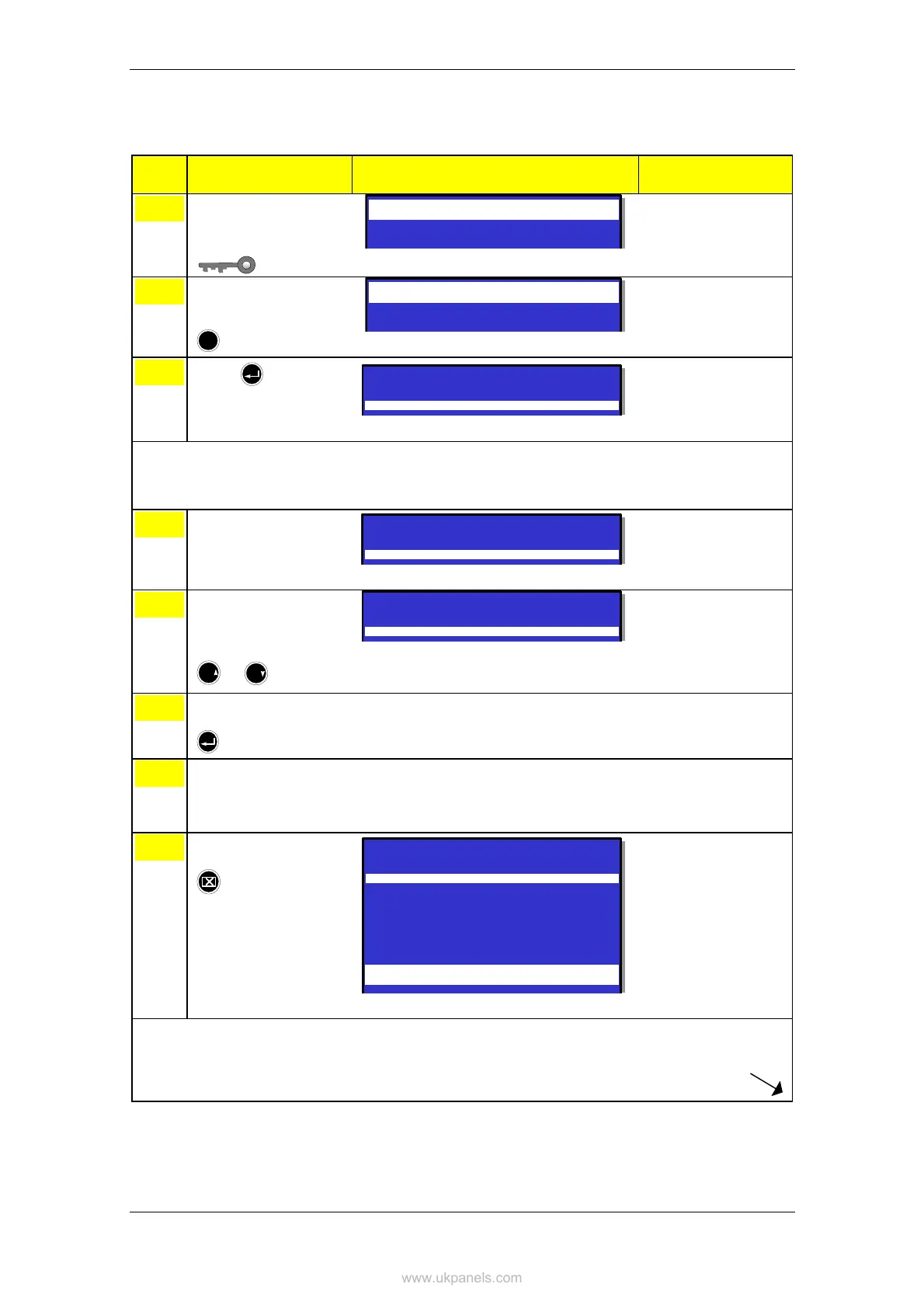

7.2 Actions to be Taken in the Event of a Fire Warning
Step Actions to be taken Display Indication Audible Indication
1
Follow all precautions
described in the local
fire instructions, step by
step.
The internal buzzer
on the operator panel
is turned on.
2
To silence the internal
buzzer, press the black
Mute Panel button
The internal buzzer
on the operator panel
is turned off.
3
Press and observe
the zone(s) in fire
warning state in the
display.
Comments:
In this example, only 1 zone is in Prealarm state (2 CANTEEN is blinking). If
you want to view detailed zonal/point information for this zone before
investigating the scene, go to step 5. If not, investigate the scene, then go
directly to step 9.
4
Investigate the scene
and carry out the
necessary actions.
5
To select a zone (if
there are several
zones), scroll with the
arrow buttons
6
PQR
or
9
YZ
6
To view detailed zonal
information, press
7
To view points in fire
warning state, press
Action Digit 1 (SHOW
POINTS).
8
To go two steps
backwards, press
twice.
Comments:
If there are several zones in Fire Warning state, and you want to view
detailed information for another zone, select the other zone in step 5, repeat
step 6, 7 and 8, then go to step 9. If not, go directly to step 9.
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
FIRE WARNINGS
19:23
Total: 1
Total : 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
Total : 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
Total : 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
Total : 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
Total : 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
Total : 1
PREALARMS
2 CANTEEN
FIRE WARNINGS
19:23
Total: 1
Total : 1
PREALARMS
2 CANTEEN
1: SHOW POINTS
4: ACCEPT FIRE WARN.
FIRE WARNINGS
19:23
Total: 1
Total : 1
PREALARMS
2 CANTEEN
1: SHOW POINTS
4: ACCEPT FIRE WARN.
