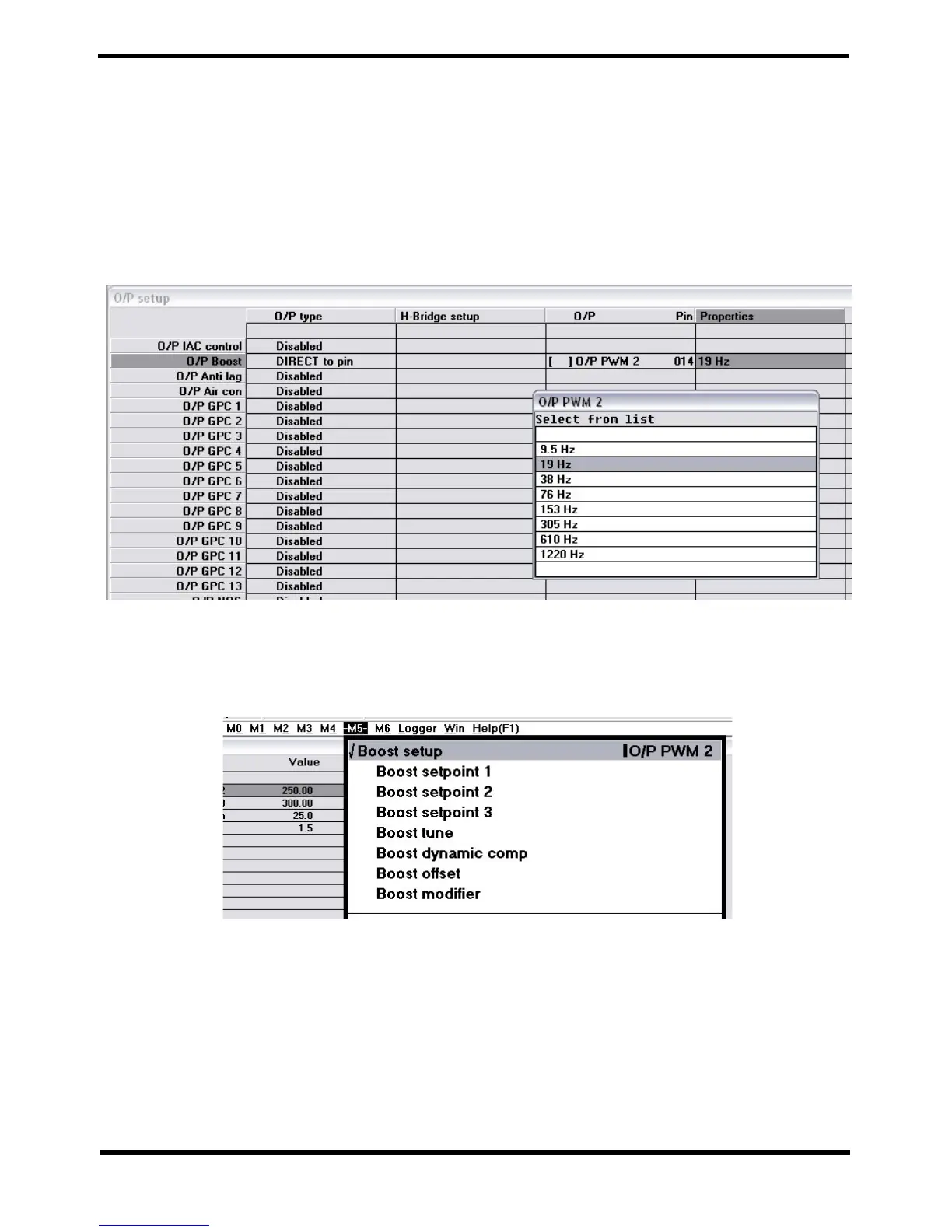

Calibrating boost control
First we need to enable boost control by assigning an output for it in menu M1 / O/P setup and
configure the output for the boost valve we are using.
In this example we select O/P PWM 2 as output for boost control, with its output on pin 14. This
is one of the dedicated PWM output pins, and it provides a reliable PWM signal with selectable
frequency ranging from 9.5 to 1220 Hz. When we have selected the output pin, we can go into
the properties cell of the output and select 19 Hz PWM frequency, which is a good starting point
for most of the available boost control valves.
Boost control O/P setup
When the boost control is assinged to an output, the boost control can be configured in the
menus under M5.
