Selecting boost table by external switches

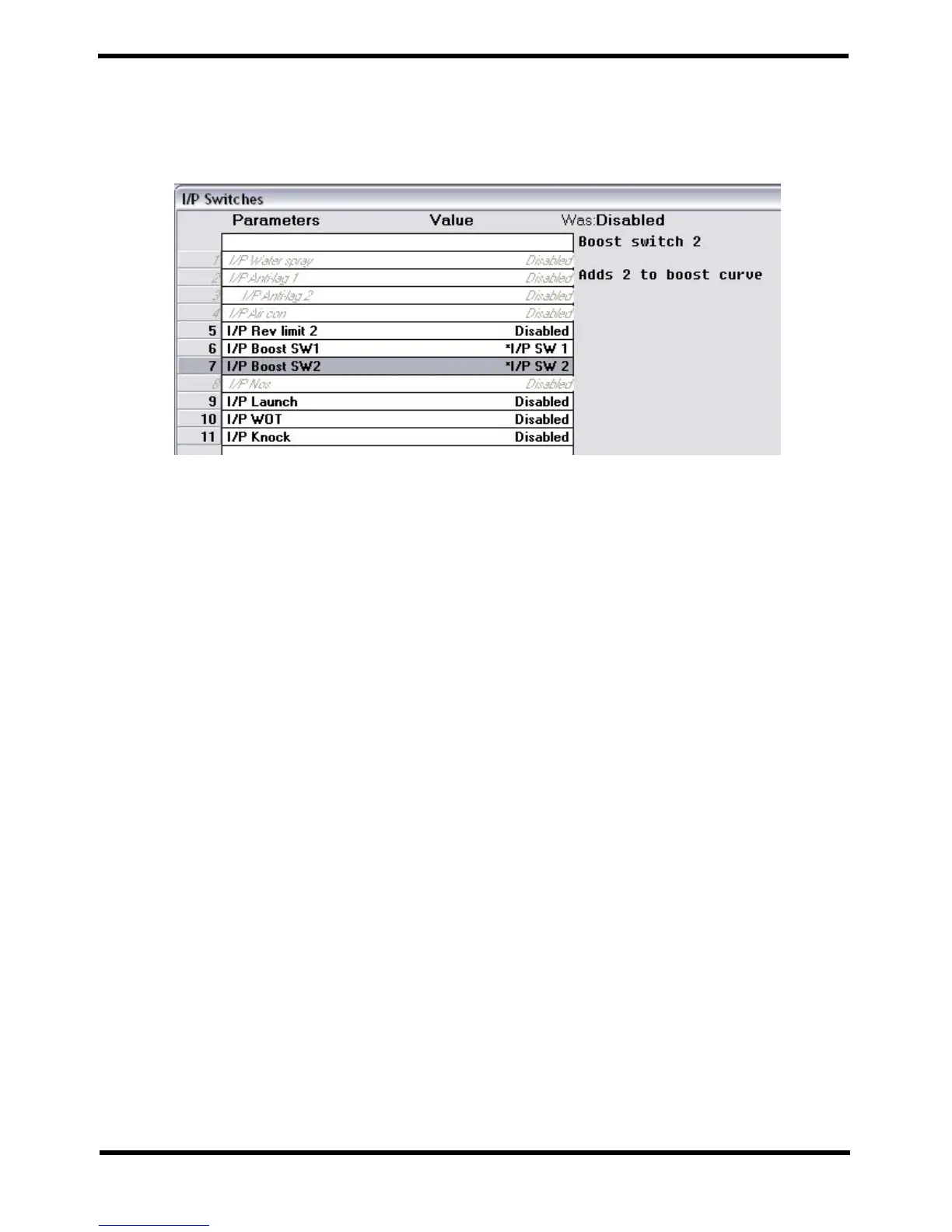

In menu M1 / I/P Switches, up to two input switches can be assigned for selecting one of the
three Boost setpoint tables, using the parameters I/P Boost SW1 and I/P Boost SW2.
Boost setpoint table switches
If both switches are off, the Boost setpoint 1 table is selected.
If I/P Boost SW1 is on, the Boost setpoint 2 table is selected.
But if I/P Boost SW2 is on, the Boost setpoint 3 table is selected regardless of how I/P Boost
SW1 is set.
The Boost setpoint tables may be selected by any combination of gear ratio as described in
chapter 0 ovan, or external switches, and even based on internal switches.
