• Manifold pressure (External or internal)
• Throttle position (Self learn or fixed)
• Air temperature (Autronic, NTC etc..)
• Water temperature (Limp home also)
• Battery voltage
• Air fuel ratio
• Baro (Setup also)
• EBP (Setup also)
Other general purpose analog I/Ps
• Oil pressure
• Oil temperature
• Fuel pressure
• Fuel temperature
• Exhaust temperature

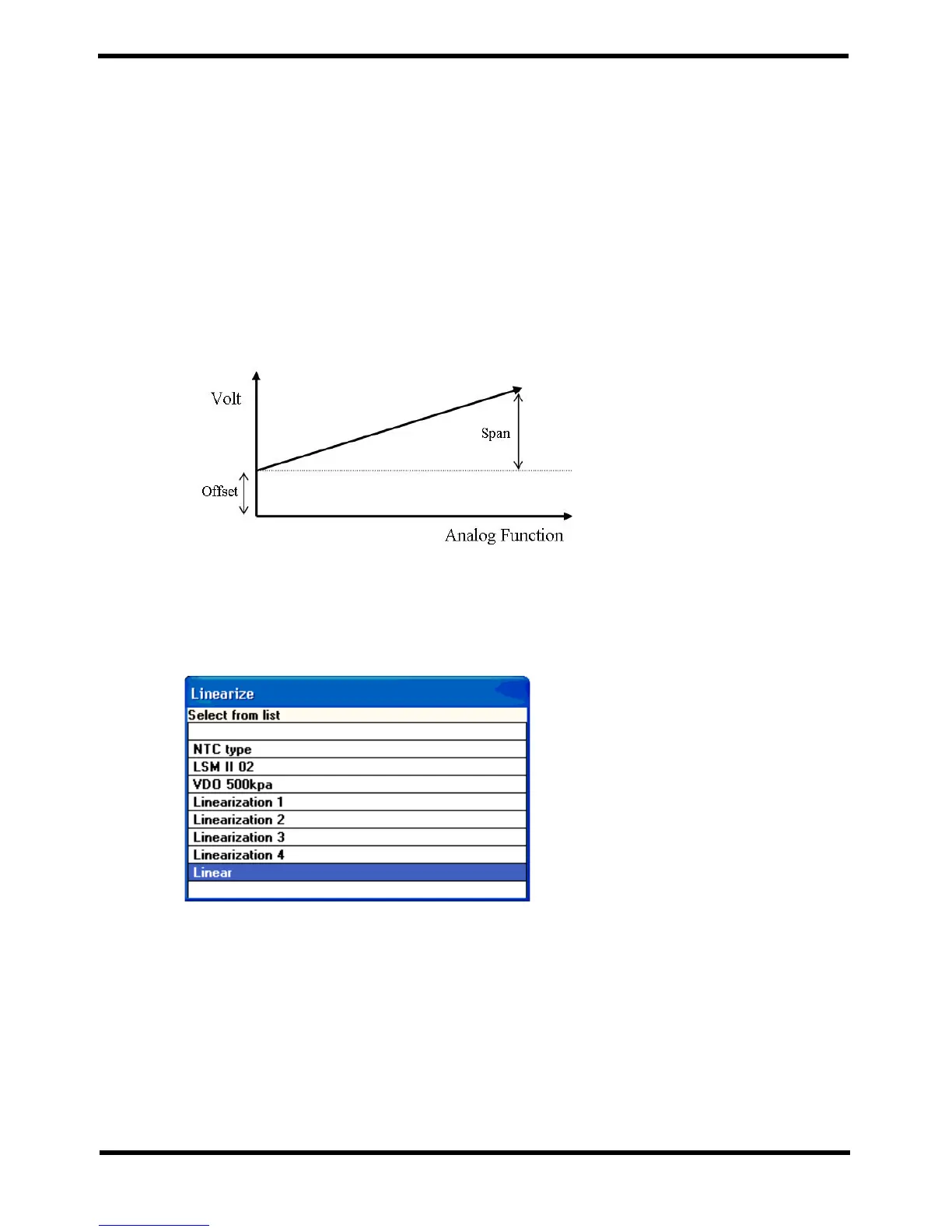

Diagram displaying Offset & Span when using function Linear
Note that each A/D channel only can have one setting, like threshold, span & offset or
Linearization table. If you adjust the A/D channels input, see below.
It will affect all other Analogs that use same A/D Channel.
