AUX DC Inverter Free Match 50HZ
R32
177

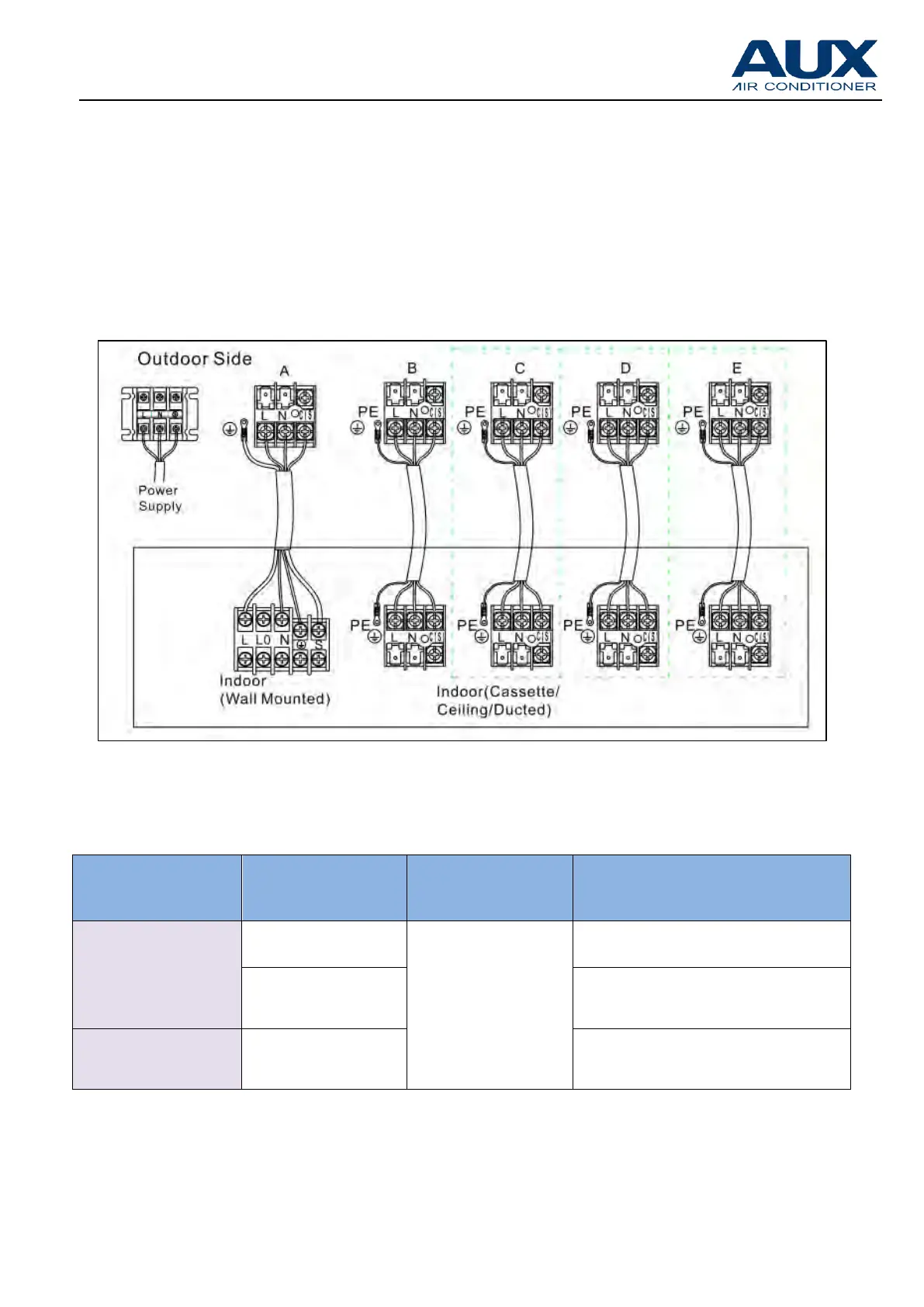

12.2 Specification of wire
Wiring Diagram of Indoor Unit and Outdoor Unit
Power line must be properly fixed; Outdoor unit must be grounded;
Each indoor unit must be grounded; Power wire must be thickened when it is overlong.
Wiring Diagram of Modular Outdoor Unit
The wiring cable specification that is needed in the installation
Wire T
ype
ODU
Power
supply
Indoor power cable
Power line
(3 core line)
14k,18k,21k,27k
220
-240V~50Hz
3×
2.5mm
2
36k,42k
3×
4mm
2
Connection wire
（
4 core line
）
All IDU
4
×
1.5mm
2
176
178
