AUX DC Inverter Free Match 50HZ
R32

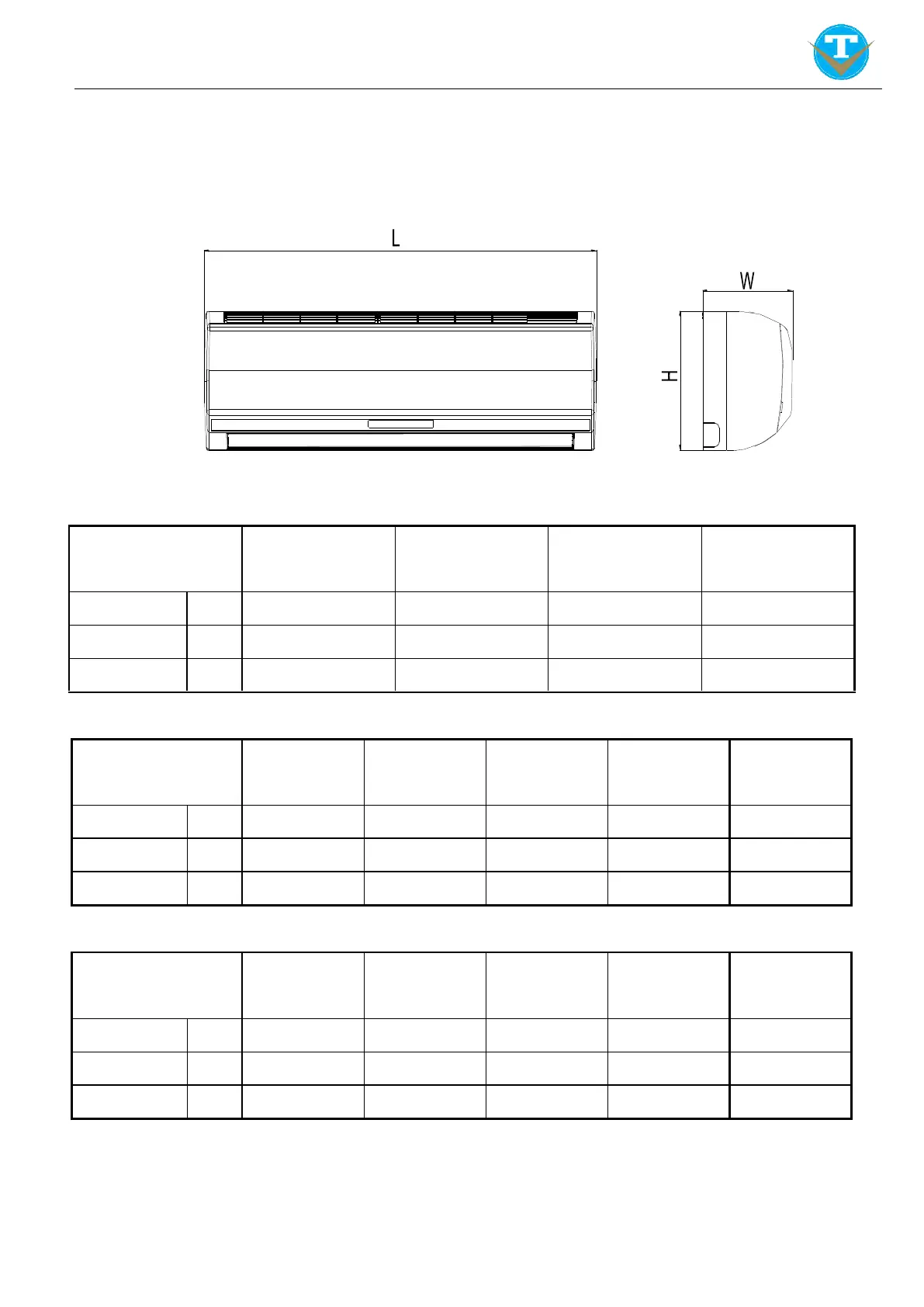

Part5 Dimension
1. W
all Mounted
Physical
Dimension
AMWM-H07
/4
R3(L*)
AMWM-H09
/4R3 (L*)
AMWM-H12
/4R3(L*)
AMWM-H18
/4R3(L*)
Length
mm
800
800
800
970
Height
mm
300
300
300
315
Width
mm
198
198
198
235
Physical
Dimension
AMWM-H07
/4R3(F*)
AMWM-H09
/4R3(F*)
AMWM-H12
/4R3(F*)
AMWM-H18
/4R3(F*)
AMWM-H24
/4R3(F*)
Length
mm
750
750
750
900
1082
Height
mm
285
285
285
310
330
Width
mm
200
200
200
225
233
Physical
Dimension
AMWM-H07
/4R3(J
*)
AMWM-H09
/4R3(J
*)
AMWM-H12
/4R3(J
*)
AMWM-H18
/4R3(J
*)
AMWM-H24
/4R3(J
*)
Length
mm
792
792
792
940
1132
Height
mm
292
292
292
316
330
Width
mm
201
201
201
224
232
51
53
Table of Contents
Default Chapter
3
Table of Contents
3
Nomenclature
7
Indoor Unit
7
Outdoor Unit
7
Part1 General Information
7
Unit Appearance
8
Cassette
9
Ceiling Floor
10
Combination Table
13
Accessories Included
17
Environmental-Friendly Refrigerant R32
18
High Efficiency
18
Reliability
18
Part2 Features
18
Outdoor Units
18
Energy Saving
19
Space-Saving Installation
19
EXV Regulation
20
Wall Mounted
21
Ways Draining Connection
21
Four-Way Cassette
22
Built-In Drain Pump
22
3D Air Swing
23
Innovative Centrifugal Fan
23
Flexible Installation
23
Ceiling Floor
23
Duct
24
Flexible Air Intake Options
24
Ultra Slim Design
24
WIFI Control
25
Part3 Piping System
26
K, 18K
26
K, 27K
26
Part4 Specification
30
Wall Mounted
30
Cassette
38
Ceiling Floor
41
Duct
43
Outdoor Unit
45
Part5 Dimension
52
Wall Mounted
52
Cassette
53
Ceiling Floor
54
Duct
55
Outdoor Unit
57
Part6 Electrical Principle Diagram
60
Wall Mounted
60
Cassette
63
Ceiling Floor
64
Duct
65
Outdoor Unit
66
Operation Range
68
Capacity Amendment of Different Ambient Temperature
68
Actual Cooling Capacity Calculation
68
Part7 Capacity Amendment
68
Long Piping Length
70
Capacity Amendment of Different Piping Length
71
Different Heating Capacity Modified Coefficients at Different Height
71
Equivalent Pipe Length Conversion
72
Correction Capability
72
Bend and Oil Loop Conversion Tablet
72
Part8 Static Pressure Curve
73
K、09K Duct
73
K Duct
74
K Duct
75
Part9 Controller
76
FAN Button
77
MODE Button
77
POWER Button
77
TEMP + Button and TEMP - Button
77
Clock Setting
78
SLEEP Button
78
Timer Setting
78
SCREEN Button
80
TIMER/CLOCK Button
80
Wired Controller XK-05/XK-04
82
ON/OFF Button
84
"Timingbutton
87
Enter Turbo Function
91
Function Description
91
Turbo
91
Cancel Turbo Function
92
Enter Sleep Function
93
Sleep
93
Cancel "Sleep" Function
94
Eco
95
Enter ECO Function
95
Cancel ECO Function
96
Enter Mildew-Proof Function
97
Mildew-Proof
97
Cancel Fungus-Proof Function
98
Enter Light Sensation Function
99
Light Sensation
99
Cancel Light Sensation
100
Clean
101
Enter Clean Function
101
Celsius and Fahrenheit Switching
103
Mute
103
Oil Return / Defrost
103
Shielding
103
"Child Lock" Function Display
104
Fault Display
104
Remote Control
104
Room Temperature Sensorequipped on the Wired Controller
104
Parameter Setting by YK-L
106
Parameter Setting Table
106
Parameters Setting
106
Parameter Checking
108
Parameter Setting by XK-04/ XK-05
108
Room Card Function
111
Duct Type
112
Wiring Diagram
112
APP Configuration
113
Light Commercial WIFI Module Installation
113
Wifi Module
113
Wifi Module Configuration
113
AC Management
114
Trouble Shooting
114
Technical Parameters
115
Part10 Explosive View
116
Wall Mounted
116
Cassette
135
Ceiling Floor
137
Duct
139
Outdoor Unit
143
Preparation
151
Part11 Installation
151
Precaution
152
Spacing Reserved
153
Hoisting of Indoor Unit
153
Installation of Sterilization Net
153
Wall Mounted
153
Drainage Checking
154
Cassette
155
The Distance between Indoor Unit and Obstacle
156
Indoor Unit Suspension
156
Drainage Pipe Installation
158
Installation Spacing
161
Ceiling Floor
161
Duct
164
Installation of Duct
165
Drainage Pipe
165
Wired Control Connection
166
Outdoor Unit
167
Connection Piping Installation
168
Piping Installation Precaution
168
If the Piping Installation Needs Welding
168
Piping Specification Selection
170
Piping Connection
170
Elbow and Oil Loop Conversion Tablet
171
Emptying or Vacuum
171
Insulation
173
Additional Refrigerant Charge
175
Electrical Connection
176
Electrical Connection Precaution
176
Specification of Wire
177
Wiring Diagram of Modular Outdoor Unit
177
The Wiring Cable Specification that Is Needed in the Installation
177
Outdoor Unit PCB
180
Main PCB and Driver Modular
180
Part12 PCB Instruction
180
Indoor Unit PCB
184
Failure Code Display
187
Part13 Trouble Shooting
187
Failure Analysis
189
Wired Controller Communication Failure
189
Communication Failure between Indoor and Outdoor Unit
190
Outdoor Protection(Phase Sequence)
191
Cooling High Pressure Protection
192
Cooling Low Pressure Protection
194
Cooling Exhaust Temperature Protection
196
Heating Exhaust Temperature Protection
197
Four Way Valve Failure Protection
198
Sensor Failure Protection
199
