Cell Antenna Unit
Issue 6 September 2001
3-37
b. Using the mounting template shown in the following figure, drill
appropriate holes for 1/4 in. screws. Pan head sheet metal screws
with dimensions 1/4 in. by 1 1/4 in. are included with the unit.
Masonry anchors or other mounting hardware must be provided
locally.

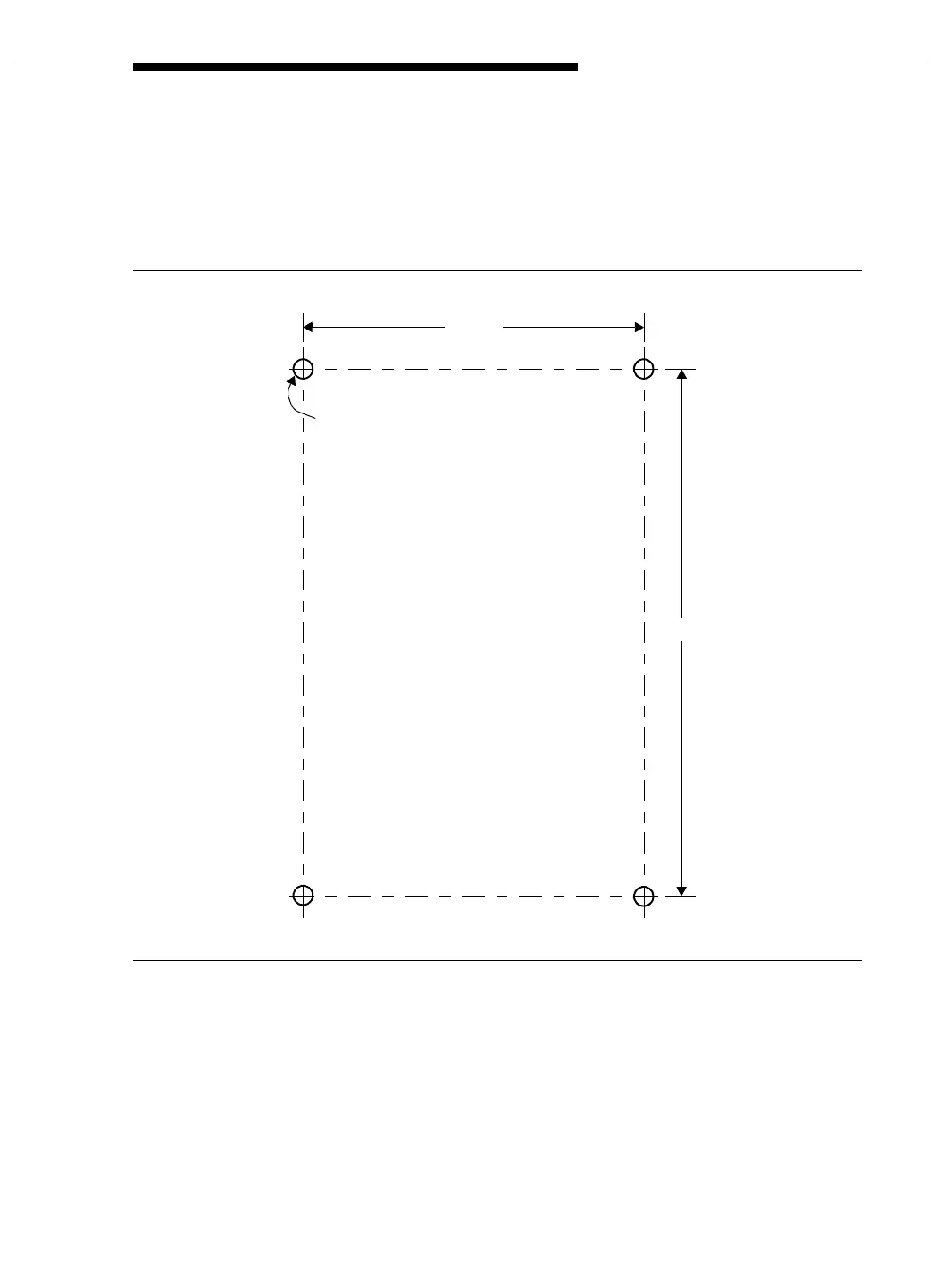

Figure 3-19. Mounting Template for Outdoor CAUs
c. Orient the outdoor CAU so that when you are looking at the unit, the
fixed-length coax connector is pointing downward and the antenna
is pointing toward the upper right. Screw the outdoor CAU into
place.
2. Locate an opening in the wall for coax cable passage. Drill a 1/4 in. hole
through the wall, if required.
4.01 in.
6.77 in.
Drill for 1/4 in. screws
(4 places)
To Next Page
