AVer EVC130P User Manual

10

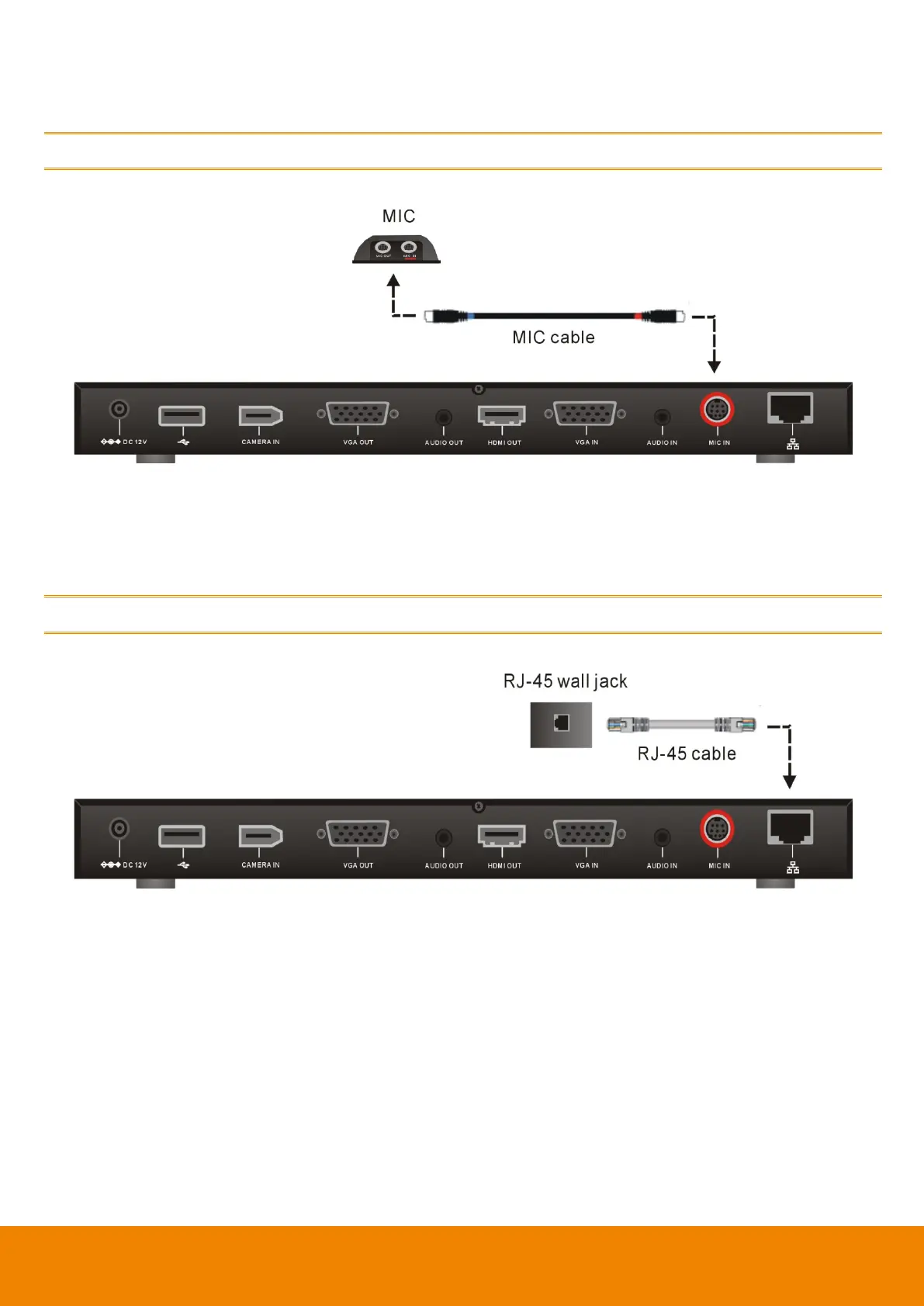

CONNECTING THE MIC (MIC IN)
Use the supplied MIC cable and connect the red tag connector to the MIC IN port of the EVC. Then
connect the other end of the MIC cable with the blue tag to MIC OUT port.

Press the button on the top of AVer EVC-MIC to mute/un-mute the MIC.
CONNECTING THE LAN (RJ-45)
Connect the LAN port of AVer EVC to a RJ-45 wall jack or Ethernet hub with the supplied RJ-45
cable.

It is requires an IP-based network before beginning LAN connection.

AVer EVC130P Specifications

General

Brand	AVer
Model	EVC130P
Category	Videoconferencing system
Language	English
