4
(5) AUDIO OUT Port Use to connect the main system to external speakers or amplifiers for
audio signal output.
(6) HDMI OUT Port Connect an HDMI cable from the HDMI monitor to HDMI OUT port
located on the back panel. The HDMI interface allows you to transmit
both audio and video signals over a single cable (HDMI cable). In dual
screen configuration, the output screen connected to this port will be set
up to primary screen automatically.
(7) VGA IN Port Connect the VGA cable to the VGA IN port located on the back panel,
and connect the other end of VGA cable to a VGA input sources (ex.
Document camera, Laptop or Desktop) to input video signal.
(8) AUDIO IN Port Receive audio signal from an external audio source through RCA left
and right audio connections.
(9) MIC IN Port Receive audio signal from MIC device via a mini din 8 pin MIC cable.
(10) LAN Port Use the RJ-45 Ethernet cable to connect an IP-based network to the
LAN port.

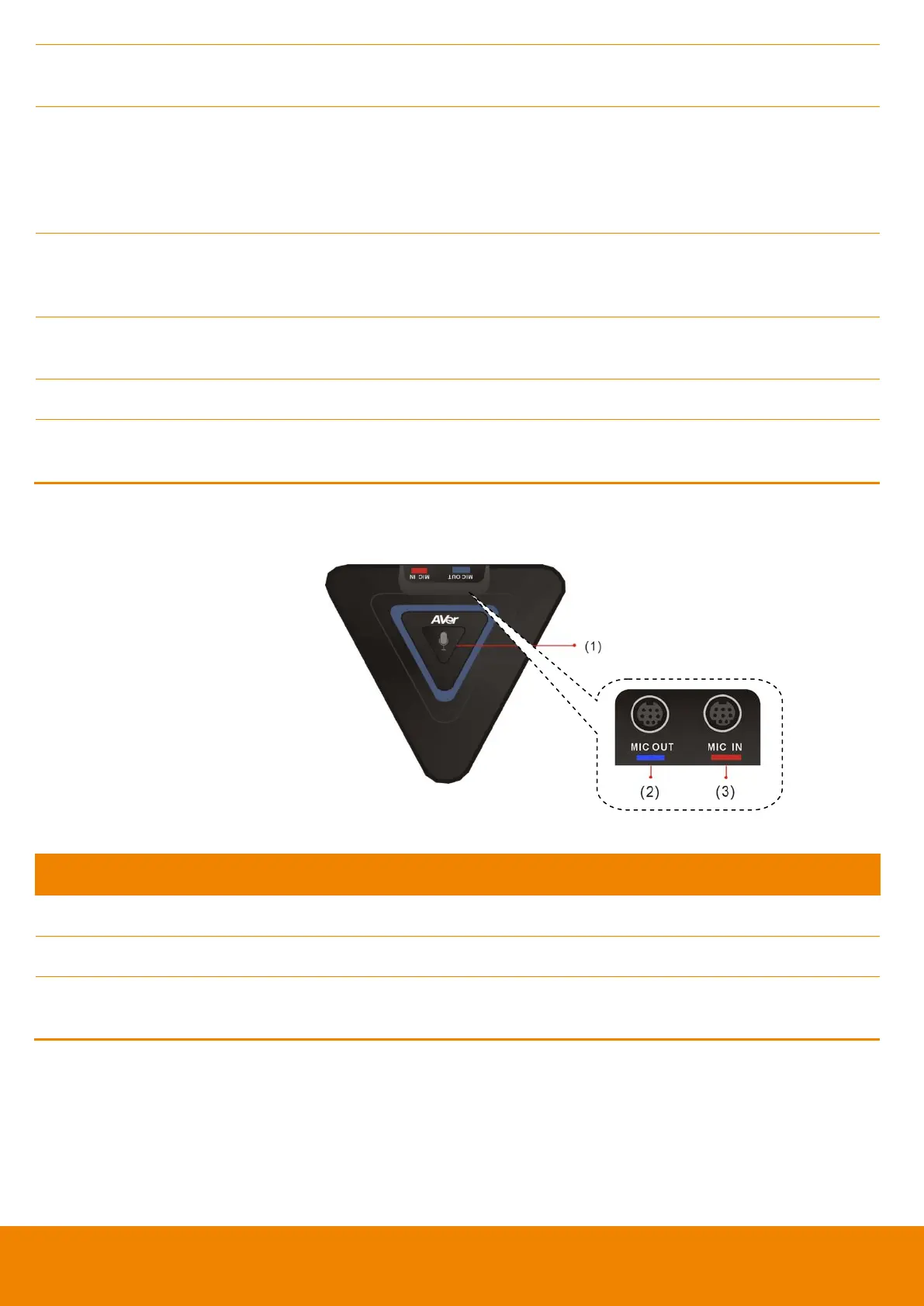

MIC
Name Function
(1) Mute Mute/Unmute the Mic. Blue: Unmute; Red: Mute
(2) MIC OUT Port Outputs audio signal from the MIC to main system.
(3) MIC IN Port Receive audio signal from the second MIC and pass it through the MIC
OUT to the main system.
