AVer VB130 User Manual

28
Image Settings

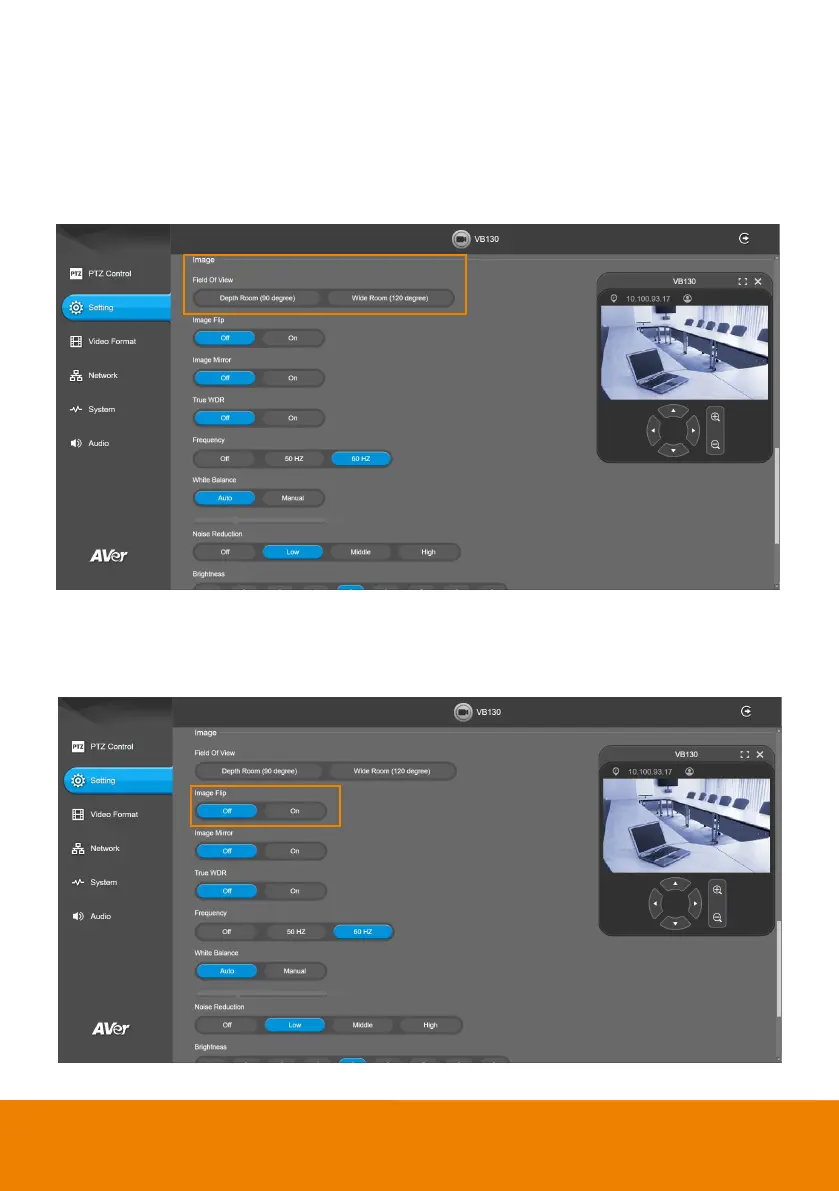

Field of View
Two kinds of view angle to select for different types of rooms.
Select Setting > Image > Field Of View > Depth Room (90 degree) or Wide Room (120 degree).
[Note]
To enable this option, please switch OFF all the AI functions.
Image Flip
If the VB130 is installed in the upside down position, please enable the "Flip".
Select Setting > Image > Image Flip > Off or On.

AVer VB130 Specifications

General

Megapixel	- MP
Sensor type	-
Digital zoom	4 x
White balance	Auto, Manual
Image sensor size	- \
Remote control interface	IR Wireless
Closest focusing distance	0.6 m
Field of view (FOV) angle	120 °
Number of microphone arrays	5
Product type	Group video conferencing system
Product color	Black, White
Wall mountable	Yes
Number of persons	- person(s)
Aspect ratio	4:3, 16:9
Maximum frame rate	60 fps
Video formats supported	M-JPEG, YUV, YUY2
Output level	92/96 dB
Frequency range	180 - 20000 Hz
RMS rated power	6 W
Microphone pick-up range	4 m
USB connector type	Mini-USB B, USB Type-A, USB Type-B
Windows operating systems supported	Windows 10, Windows 7
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, USB
Power cable length	3 m

Weight and Dimensions

Depth	75 mm
Width	350 mm
Height	65 mm
Weight	922 g
Package depth	146 mm
Package width	406 mm
Package height	189 mm
Package weight	2358 g
Remote control weight	50 g
Remote control dimensions (W x H x D)	42.3 x 19.29 x 149.72 mm
