AVer VB130 User Manual

22

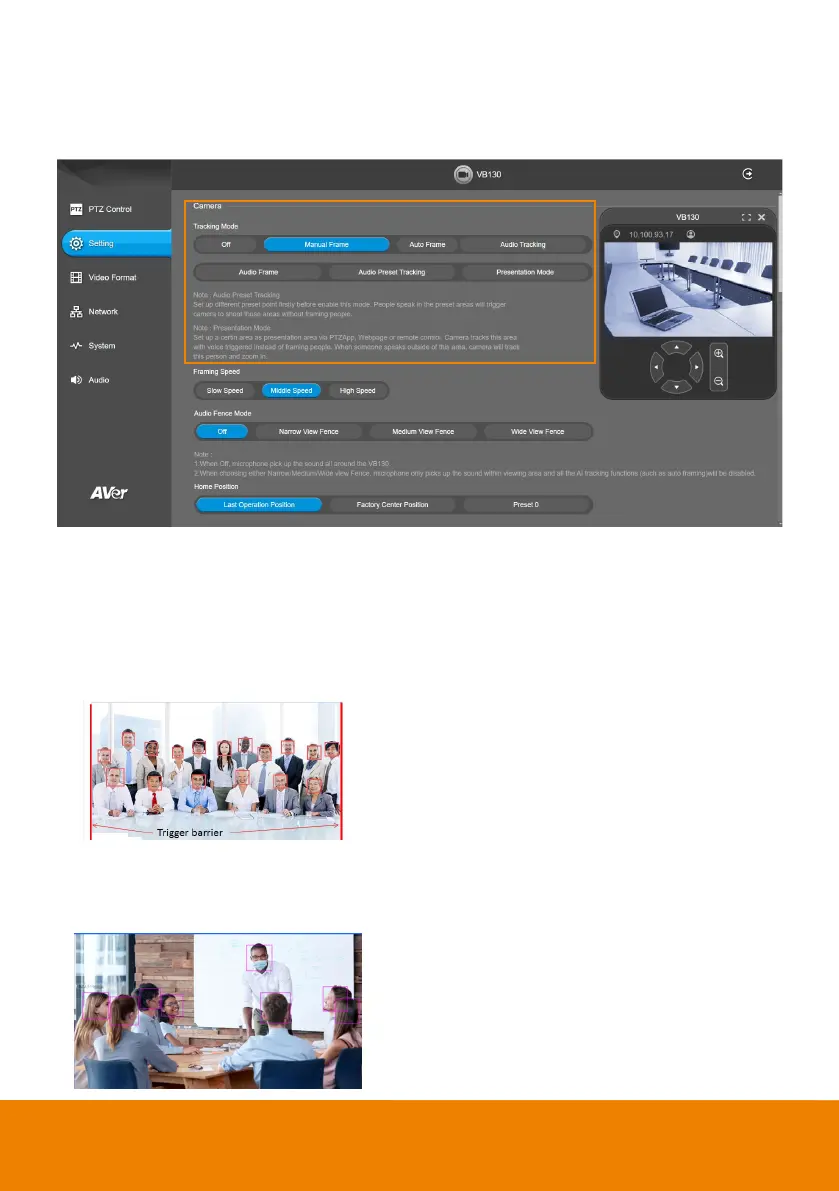

Tracking Mode
Select Setting > Camera > Tracking Mode > Off, Manual Frame, Auto Frame, Audio Tracking,
Audio Frame, Audio Preset Tracking, or Presentation Mode.
 Off: Tracking mode is disabled.
 Manual Frame: User one-click SmartFrame button and camera will adjust view angle to fit all
participants in screen for once.
 Auto Frame: Camera automatically adjusts view angle to frame all participants on screen every
time it detects participants’ faces or bodies. This action will be activated once people in the room sit
or stand still for 1~5 seconds, depending on the
framing speed you select.* Once all the participants are
in frame, the camera will keep the image stable by not
completing any action until subjects move in or out of
the screen. When a participant touches the sides of the
screen or enter the 120 degree lens field of view, it will
trigger the camera and automatically track, detect, and frame all the participants again.
*The default framing speed is “Middle” speed. “High” speed is more suitable for one person
tracking.
[Note]
VB130 frames people in masks or any facial profile up to
5 meters away!

AVer VB130 Specifications

General

Megapixel	- MP
Sensor type	-
Digital zoom	4 x
White balance	Auto, Manual
Image sensor size	- \
Remote control interface	IR Wireless
Closest focusing distance	0.6 m
Field of view (FOV) angle	120 °
Number of microphone arrays	5
Product type	Group video conferencing system
Product color	Black, White
Wall mountable	Yes
Number of persons	- person(s)
Aspect ratio	4:3, 16:9
Maximum frame rate	60 fps
Video formats supported	M-JPEG, YUV, YUY2
Output level	92/96 dB
Frequency range	180 - 20000 Hz
RMS rated power	6 W
Microphone pick-up range	4 m
USB connector type	Mini-USB B, USB Type-A, USB Type-B
Windows operating systems supported	Windows 10, Windows 7
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, USB
Power cable length	3 m

Weight and Dimensions

Depth	75 mm
Width	350 mm
Height	65 mm
Weight	922 g
Package depth	146 mm
Package width	406 mm
Package height	189 mm
Package weight	2358 g
Remote control weight	50 g
Remote control dimensions (W x H x D)	42.3 x 19.29 x 149.72 mm
