Chapter 2: Mbox Mini Hardware Overview 5
chapter 2
Mbox Mini Hardware Overview
Mbox Mini Front Panel Features
Figure 1 identifies controls, indicators, and input and output ports on the front panel on the
Mbox Mini.
Gain/–20 dB Pad Switches 1
This knobs adjusts the gain level for Inputs 1
(Mic/Line or DI) depending on which input is
enabled by the back panel Combo/DI switch.
Turn the knob clockwise to increase gain, and
counter-clockwise to decrease gain. If your input
signal is too hot even with the Gain knob at a
low setting, pull the Gain knob out to engage a
“pad” that attenuates the signal by -20dB.
Gain/–20 dB Pad Switch 2
This knob adjusts the input gain level of Input 2
(Line/DI) depending on which input is enabled
by the back panel Line/DI switch. Turn the knob
clockwise to increase gain, and counter-clock-
wise to decrease gain. If your input signal is too
hot even with the Gain knob at a low setting,
pull the Gain knob out to engage a “pad” that
attenuates the signal by –20dB.

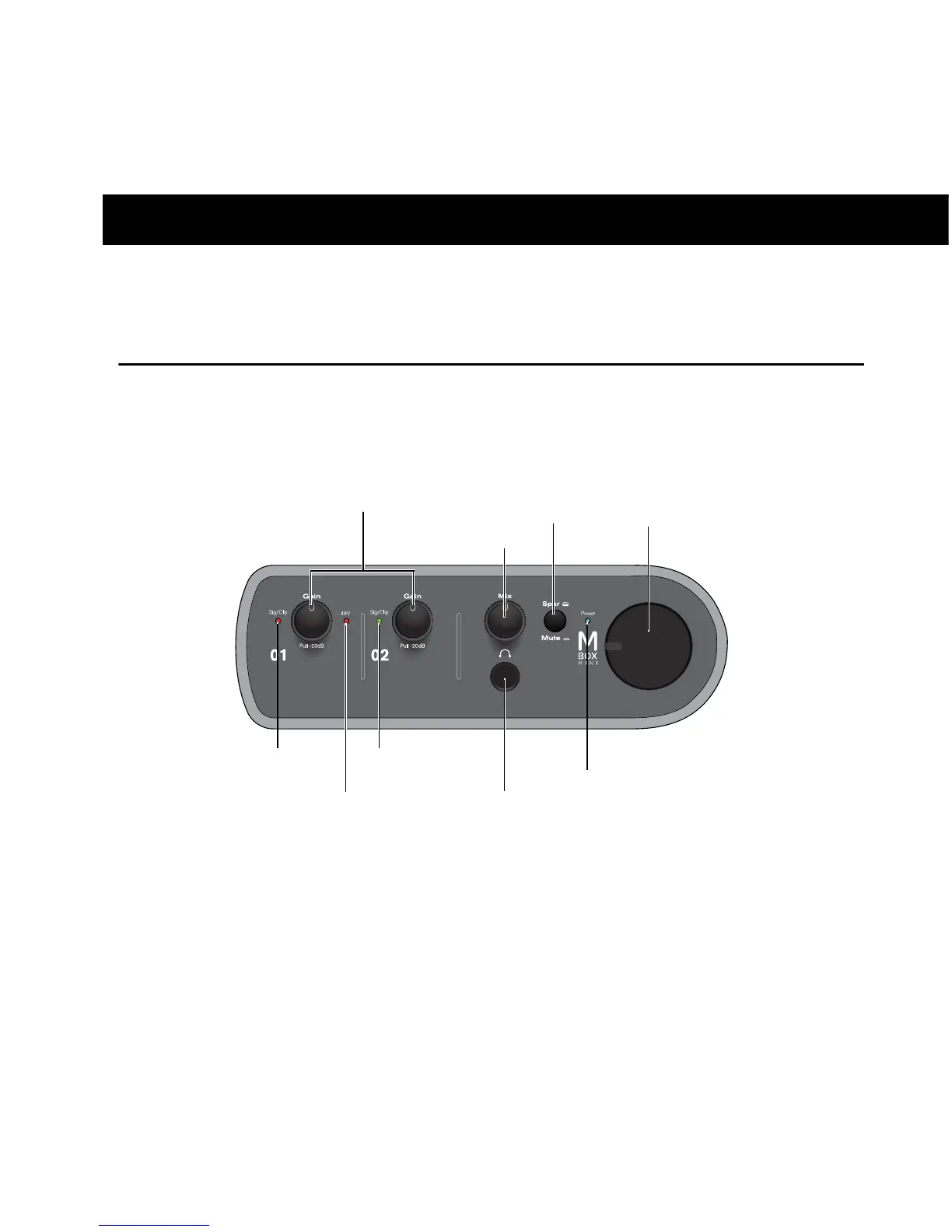

Figure 1. Mbox Mini front panel
