Stage 4812
Removing I/O Cards from SC48
SC48 Stage I/O cards that you want to relocate to one or to two
Stage 48 units can be removed from SC48 prior to sending it to
an Avid-authorized service technician. You can then install
these cards in Stage 48.
Removing AI16 Analog Output Cards
In order to convert your SC48 to an SC48 Remote system, the
first two AI16 input cards (installed in slots A and B of the
console) must be removed.
To remove an AI16 card:
1 Remove all screws that secure the Top Panel to the console
chassis.
2 Hold the front edge of the Top Panel and carefully lift it up-
wards to a vertical position.
3 To lock the Top Panel in the vertical position, tighten the two
interior captive thumbscrews located on the top left and top
right sides of the console.
4 Locate the card you want to remove and disconnect the
50-pin ribbon cable by pushing the retaining clips outwards.
Note the location and orientation of the cable.

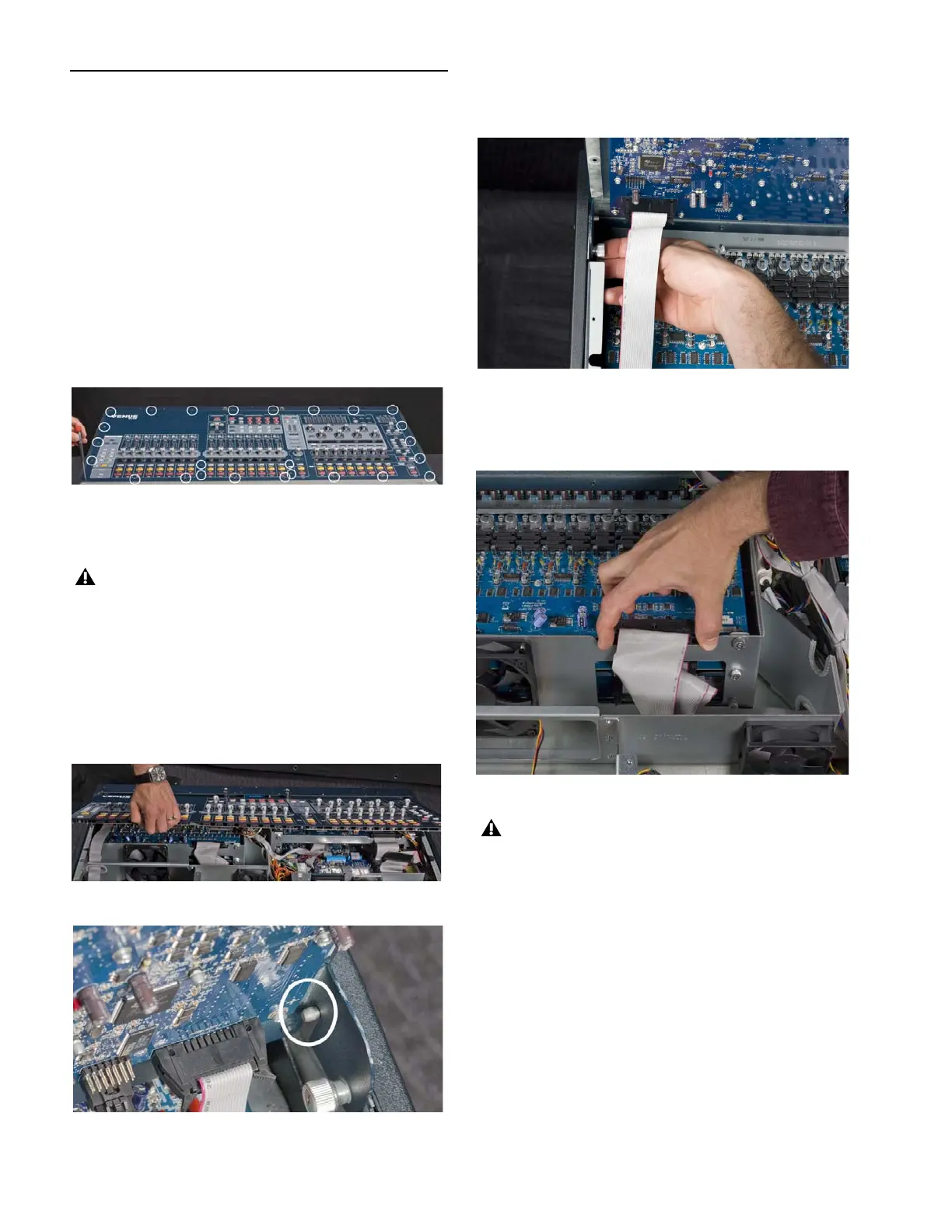

Figure 1. Removing the 26 Top Panel screws
If you sense any resistance when lifting the Top Panel up-
wards, do not force it. The Top Panel has slots that pivot on
posts attached to the sides of the console chassis (Figure 3).
Removing the Top Panel screws may cause the Top Panel to
slide towards the front of the console so that the Top Panel
slots are not correctly aligned with the posts. If this occurs,
slide or push the Top Panel towards the rear of the console
before lifting, making sure the posts are correctly aligned
with the slots.
Figure 2. Lifting the Top Panel to vertical
Figure 3. Correct alignment of Top Panel slot and pivot post
Figure 4. Tightening the top left captive thumbscrew
Figure 5. Disconnecting the 50-pin ribbon cable
The disconnected ribbon cable is left in the console. Do not
attempt to remove it.
