Photocell
RX1
Photocell
TX1
Photocell
RX2
Photocell
TX2
If using the STOP input, you must remove the connector between STOP and GND

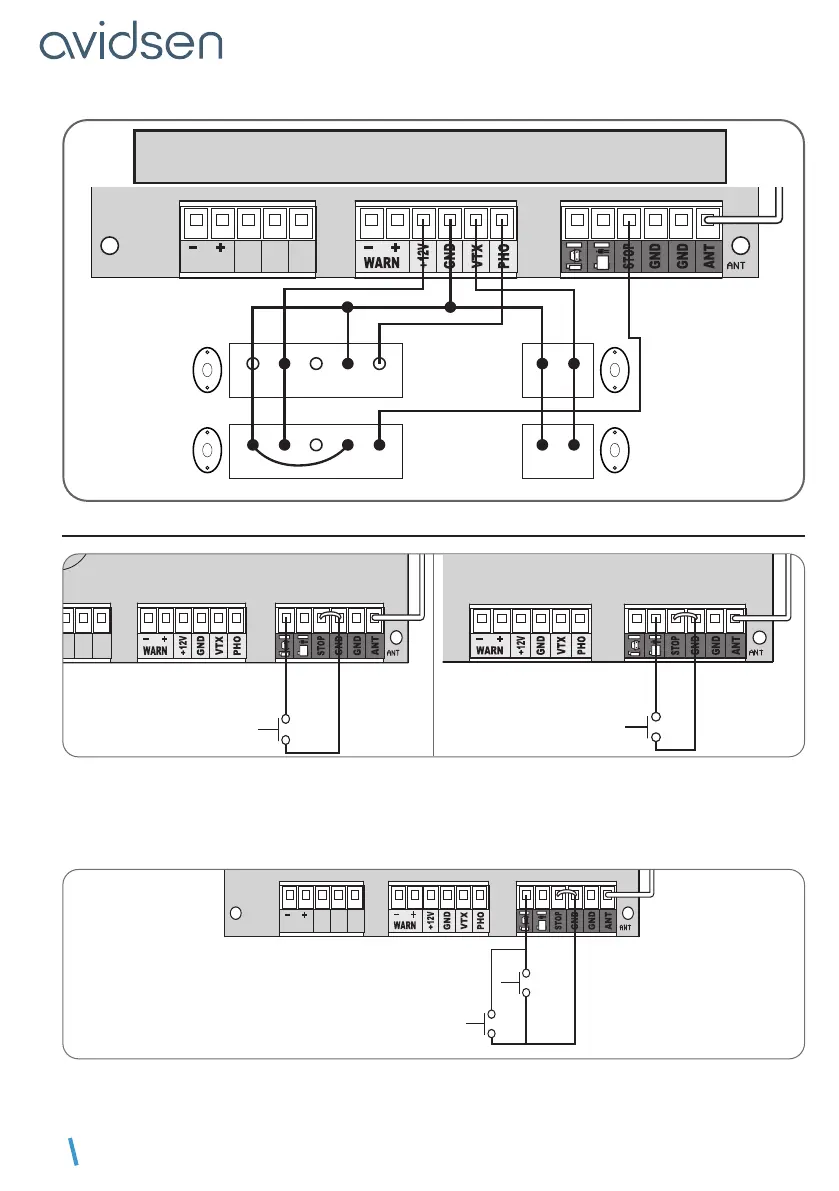

11.2 - ADDITIONAL CONTROL PARTS

9
+$//
*1'
0
+
12V
HALL
GND
M1
push button
interphone output,
key contact
push button
interphone output,
key contact
Gate control Pedestrian control
Note:
These control parts must be normally open dry contacts.
It is possible to use several wired control parts on the same input, but for this they must be connected in
parallel:
+
12V
HALL
GND
M1
push button
interphone output,
key contact 1
push button
interphone output,
key contact 2
